| Model: | H08 SC APC |
|---|---|
| Brand: | Oryarwa |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | Fast Connector , SC APC Fiber Optic , With Embedded |
| Price: |
US $0.5
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: | Last Online:21 Aug, 2023 |
Detailed Product Description:
|
Product Name |

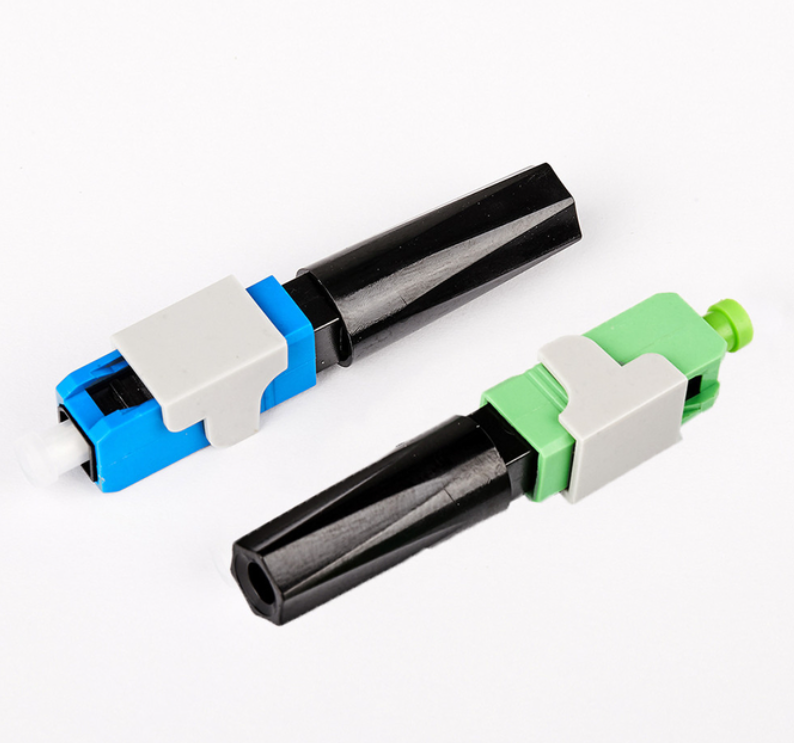

H08 SC APC Fast Connector |
Color |
Green |
|---|---|---|---|
|
Mode Type |
With Embedded |
Insertion Loss |
IL ≤ 0.35 dB |
|
Return loss |
≥40 dB |
Tensile Strength |
>20N |
|
Operating Temp. |
-40℃～+85℃ |
Standards |
IEC61754-4 |
Environmental parameters:
|
Properties |
Test condition |
Test result |
|---|---|---|
|
Vibration |
IL change ≤ 0.35 dB |
≤0.35 dB |
|
Flooding |
IL change ≤ 0.35 dB |
≤0.35 dB |
|
Repeatability |
IL change ≤ 0.35 dB |
≤0.35 dB |
|
Operating Temperature |
-40ºC to +85ºC | ≤0.35 dB |
|
Temperature Cycle |
-40ºC to +85ºC | ≤0.35 dB |
Features:
> Only 30 seconds needed to learn the process of installation
> Good high temperature performance and good sealing
> High return loss and low insertion loss
Application:
> Telecommunication Network
> Testing Equipment
> Local Area Network(LAN)
> FTTH
> Connect Different Types of Ceramic Ferrule Bores
