| Model: | FP48150-RM |
|---|---|
| Brand: | First power All LFP OEM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Battery, Storage Battery & Charger |
| Label: | 51.2V150Ah batt , Rack Mount battery , LiFePO4 battery |
| Price: |
US $1350
/ pc
|
| Min. Order: | 2 pc |
| Live Chat: |  | Last Online:09 Oct, 2023 |

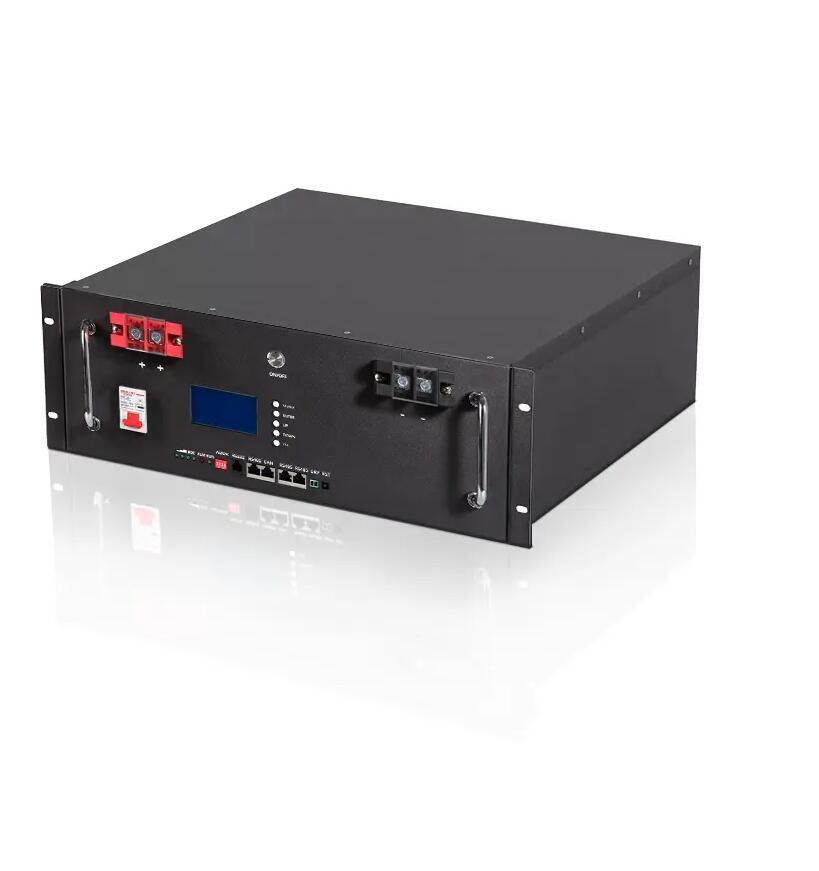

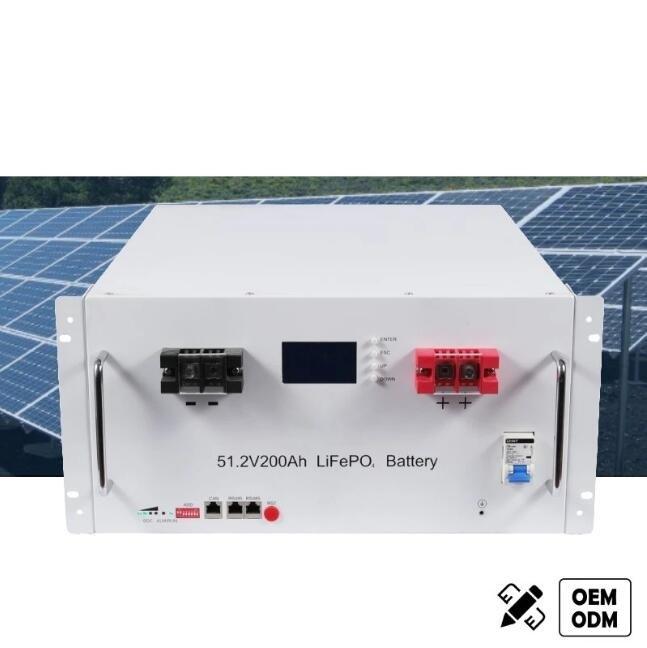

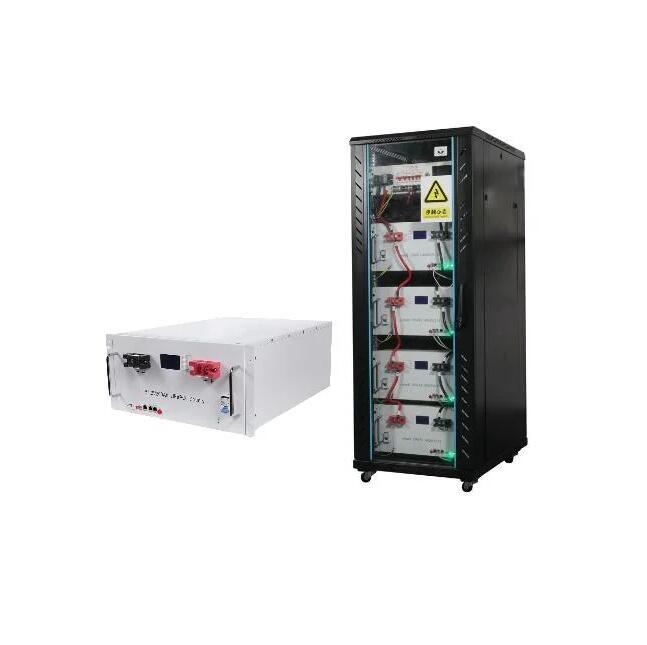

US and Europe Most Popular Best Seller Rack Mounted Solar RV Marine 51.2V 50Ah 100Ah 150Ah 200Ah 300Ah More LiFePO4 Lithium Ion Battery
Product Description
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric bicycle
--LED Backup / Engine Starting Battery,etc
|
Product Type |
FP4850-RM |
FP48100-RM |
FP48150-RM |
FP48200-RM |
|
|
Rcgular Parametcrs |
Cell material |
lithium iron phosphate |
lithium iron phosphate |
lithium iron phosphate |
lithium iron phosphate |
|
Combination mode |
16S |
16s |
16s |
16s |
|
|
Rated Voltage |
51.2v |
51.2v |
51.2v |
51.2v |
|
|
Rated Capacity |
50Ah （@25℃） |
100Ah ( @25℃) |
150Ah ( @25℃) |
200Ah ( @25℃) |
|
|
Rated Energy |
2560Wh |
5120Wh |
7680Wh |
10240Wh |
|
|
Dimensions |
482x430x130(±2)mm (W*D*H) |
482x430x175(±2)mm (W*D*H) |
482x430x175(±2)mm (W*D*H) |
482x550x222(±2)mm (W*D*H) |
|
|
482x430x130(±2)mm (With Handles) |
482x465x174(±2)mm (With Handles) |
482x465x174(±2)mm (With Handles) |
482x550x222(±2)mm (With Handles) |
||
|
Weight |
28Kg |
47Kg |
68Kg |
86Kg |
|
|
Communictation Interface |
RS485、CAN |
RS485、RS232 、CAN |
RS485、RS232、CAN |
RS485、RS232、CAN |
|
|
ProtectionLevel |
IP20 |
lP20 |
lP20 |
lP20 |
|
|
Cycle Life |
≥6000 (times@ 25℃Ambient, 80%DOD) |
≥6000 (times @ 25℃Ambient, 80%DOD) |
≥6000 (times @ 25℃Ambient, 80%DOD) |
≥6000 (times @ 25℃Ambient, 80%DOD) |
|
|
Material of Box |
Sheet Metal |
Sheet Metal |
Sheet Metal |
Sheet Metal |
|
|
Electrical Parametcrs |
Voltage Range |
40~58.4V |
40-58.4V |
40-58.4V |
40-58.4V |
|
Maximum Continuous Discharge Current |
50A |
100A |
100A |
100A |
|
|
Maximum Continuous Charge Current |
25A |
50A |
50A |
50A |
|
|
End of Charge Voltage |
58.4v |
58.4V |
58.4V |
58.4V |
|
|
End of Discharge Voltage |
40v |
40v |
40v |
40v |
|
|
lnput Protection |
63A/1P MCB(Optional) |
125A/1P MCB(Optional) |
125A/1P MCB(Optional) |
125A/1P MCB(Optional) |
|
|
Opcration Ervironment |
Charging Temperature |
0 to 55℃ |
0˚C to 55˚C |
0˚C to 55˚C |
0˚C to 55˚C |
|
DischargingTemperature |
–20˚C to 55˚C |
–22˚C to 55˚C |
–22˚C to 55˚C |
–22˚C to 55˚C |
|
|
StorageTemperature |
–20˚C to 55˚C |
–22˚C to 55˚C |
–22˚C to 55˚C |
–22˚C to 55˚C |
|
|
Standards |
CB |
lEC62368-1(IEC 62619) |
IEC62368-1 (IEC 62619) |
IEC62368-1 (IEC 62619) |
IEC62368-1 (IEC 62619) |
|
EMC |
IEC/EN 61000-6-1/2/3/4,ETSIEN 300 386 |
IEC/EN 61000-6-1/2/3/4,ETSIEN 300 386 |
IEC/EN 61000-6-1/2/3/4,ETSIEN 300 386 |
IEC/EN 61000-6-1/2/3/4,ETSIEN 300 386 |
|
|
CE |
EMC Directive 2014/30/EU
|
EMC Directive 2014/30/EU
|
EMC Directive 2014/30/EU
|
EMC Directive 2014/30/EU
|
|
|
Battery Directive |
Battery Directive 2013/56/EU |
Battery Directive 2013/56/EU |
Battery Directive 2013/56/EU |
Battery Directive 2013/56/EU |
|
|
Transport |
UN38.3 |
UN38.3 |
UN38.3 |
UN38.3 |
|
Feature
1. Under normal conditions, using lithium iron phosphate battery technology,with excellent safety, thousands of cycles,100% DOD
2. Built-in automatic protection function to prevent overcharging, overdischarging,overcurrent and overheating.
3.Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20°C~ 60°C.
8. Support for series application extensions (up to 51.2V) and two parallels.
| Price Terms: | FOB DDP EXW |
|---|---|
| Payment Terms: | T/T |
| Packing: | Carton packaging and wooden box packaging |
| Lead Time: | 20 days |
