Product Description

Specifically designed in high volume laser cutting environments, the fiber laser Robotic flexible 3D cutting system will vastly improve your production efficiency and accuracy which will give you a superior product for your market.

We utilizes either Kuka or ABB robots which provide accuracies from +/- 0.05mm and maximum positioning speed of 30m/min. Also using the latest in laser technology by integrating the power efficient fiber laser source, giving you the best and most cost effective technology on the market today.

The fiber laser Robotic flexible 3D cutting system is defined as: multi-angle, multi-direction flexible cutting for different thickness metal-plate by specific fiber laser cutting head.

The fiber laser Robotic flexible 3D cutting system utilizes the advantage of the flexibility and performance of the robot . According to the size of the processing work piece, in order to teach-programming or offline-programming different tracks on different products, the robot can be installed correctly or inversely .The robot´s sixth axis loaded fiber laser cutting head is also able to do the 3D cutting on the irregular processing work piece.

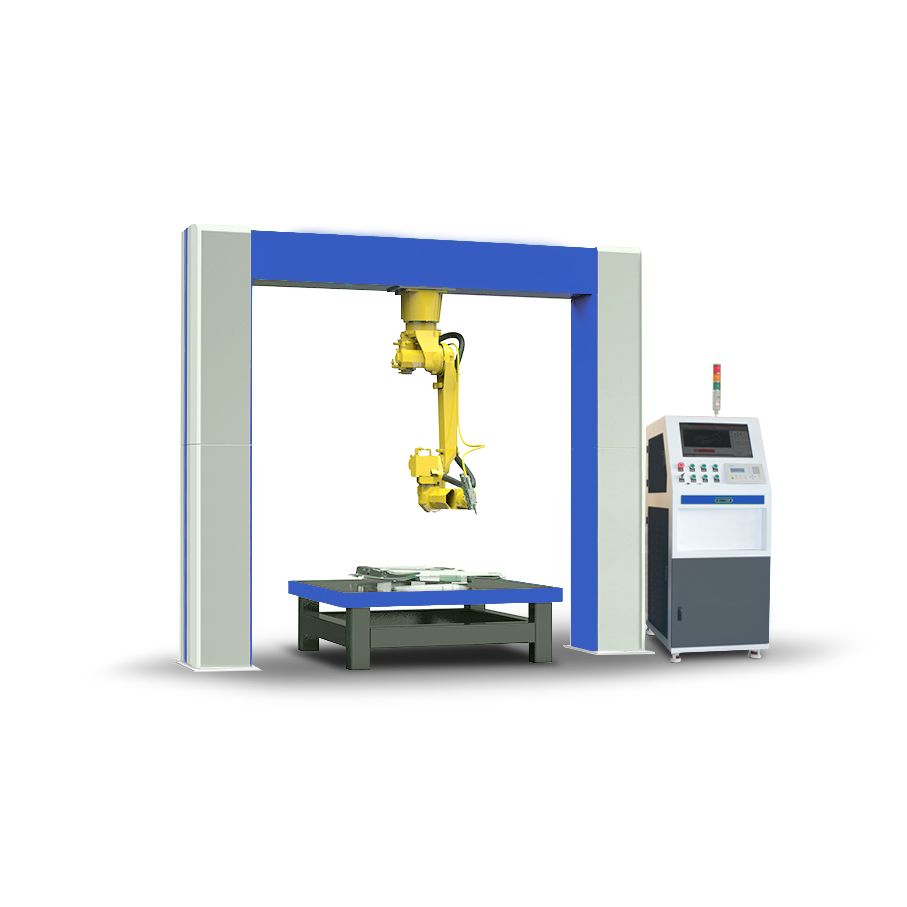

The robot installation structure adopts a fixed gantry-type structure, and the whole steel structure is welded, and the structure is stable and reliable. The robot installation structure requires a stable structure and modular design, which can effectively balance the vibration generated by the robot during operation and ensure the repeatability of the laser head. At the same time, the working space and the maximum effective working radius are fully considered.

The top-down inversion robot is installed to maximize the working area of the robot; the robot can be stretched to the maximum extent, and the maximum swing arm function of the robot can be utilized, and the materials loading and unloading area and the working area are opened.

Technical Parameters
