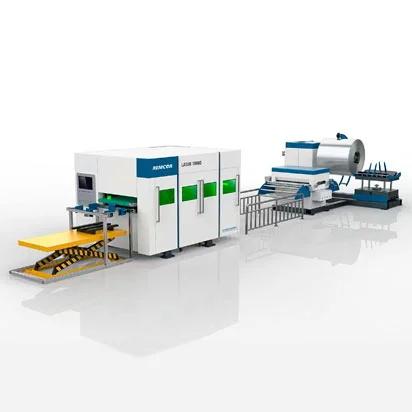

The coil fed laser cutting combines with the de-coiling system, leveling system and laser cutting system. It's suitable to process the multi shape of products, can realize customized manufacturing. Compared with traditional coil processing lines, our sheet metal coil line machine laser cutting system with features of high precision, high productivity, less cost on labors, and stable operation. which is suitable for cutting metal coils, such as stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, galvanized steel, copper, etc.
Decoiler,hydraulic lifting, all servo support, and remote control.
Levelling, which is to straighten from coil sheet.
Manufacturing steps: Fiber Laser cutting or Punching Or shearing or folding.
Post-processing, such as robot handling to stack automatically or welding etc.
Coil Fed Laser Cutting Machine Features
Fully-automation can realize to process from the raw metal coils to the final profiles, no need a numeral labors to handle different devices and a few cycles of loading and unloading, There is no need to change the dies, and no waste of time or labors, can realize the higher flexibility manufacturing faster react to the customer's needs and rapid react to the market changes.
Higher productivity, there is no waste of labor landing and blanking compared with traditional line. Only one worker can handle the whole lines. It is stable operation, no need to change the dies, less operation.
High precision and accuracy, the system apply with the servo feeding system and solid fiber laser technology, which make sure the precision.
Sheet Metal Coil Cutting Machine Parameter Details
|
Number |
Item |
Specification |
|
Laser cutting station |
||
|
1 |
Laser source power |
1500W |
|
2 |
Working area |
3000mm×1500mm |
|
3 |
X、Y axis positioning accuracy |
±0.05mm/m |
|
4 |
X、Y axis repositioning accuracy |
±0.03mm |
|
5 |
Max running speed |
120m/min |
|
6 |
Max acceleration |
1.2G |
|
7 |
Workbench maximum load weight |
800kg |
|
8 |
Station weight |
6.5T |
|
9 |
Station size（length*width*height） |
6m×2.92m×2.0mm |
|
De-coiling station |
||
|
10 |
De-coiling width/capacity |
300-1250mm/10T |
|
11 |
Decoil landing capacity |
10T |
|
Levelling station |
||
|
14 |
Levelling rollers |
Up 5/down 4 |
|
15 |
Output speed |
16m/min |
If you are looking for a reliable precision laser cutter factory, please choose us, and we will be your best partner.
