Multifunctional engraving and milling machine integrating heavy cutting and high

Model:HM DX650/DX870/
Brand:HMW
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:engraving and milli , engraving and milli , engraving and milli
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

HMWTECH CO.,LTD

Biz MemberJiang Xi - China
Live Chat:
Last Online:30 Mar, 2024

View all products. (757)

Product Description

HM DX650/DX870/DX1080



THE PERFECT COMBINATION OF HIGH SPEED AND HIGH STABILITY

Multifunctional engraving and milling machine integrating heavy cutting and high-speed displacement



project

unit

HMDX650

HMDX870

HMDX1080

X/Y/Z axis travel

mm

600/500/280

800/700/350

1000/800/400

Door width

mm

740

750

950

Distance from spindle end to workbench

mm

50-330

50-400

130-630

Workbench area (length x width)

mm

600x500

800x690

1000x800

Permissible load

Kg

300

400

2000

Spindle taper hole

No.

ER32/BT30

ER32/BT30

ER32/BT30

Maximum spindle speed

r/min

24000

24000

24000

Spindle motor power

kw

5.5

7.5

7.5

XYZ axis fast movement speed

m/min

15/15/15

15/15/15

24/24/24

Maximum chip speed

mm/min

8000

8000

8000

Number of tools

T

12

12

12

positioning accuracy

mm

±0.005/300

±0.005/300

±0.005/300

Repetitive positioning accuracy

mm

±0.003

±0.003

±0.003

Machine weight

kg

3800

5000

6500

Machine tool dimensions (length/width/height)

mm

2200/2000/2400

2400/2100/2400

3400/2100/2600

Control system



New generation 21MA/Mitsubishi E80



Product Image

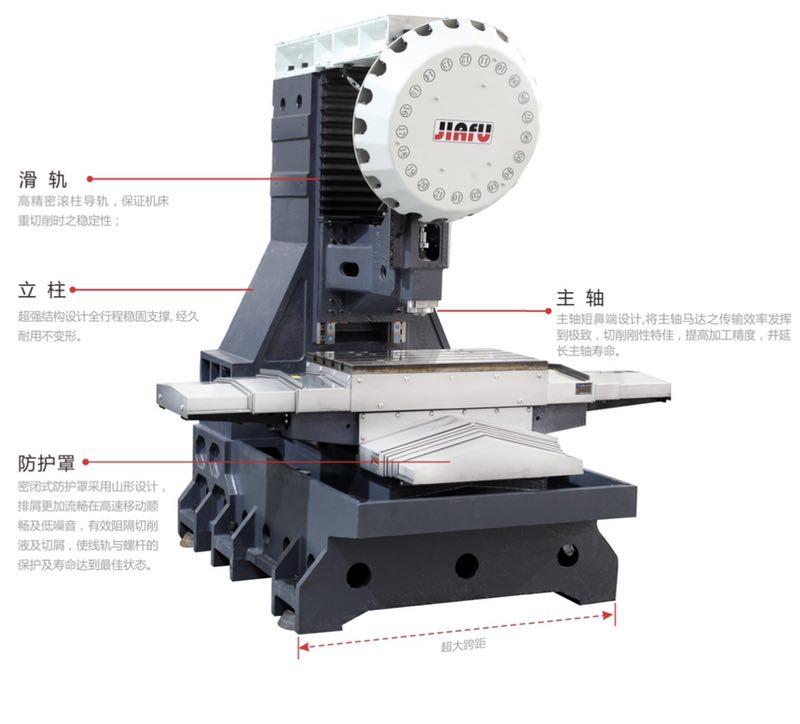

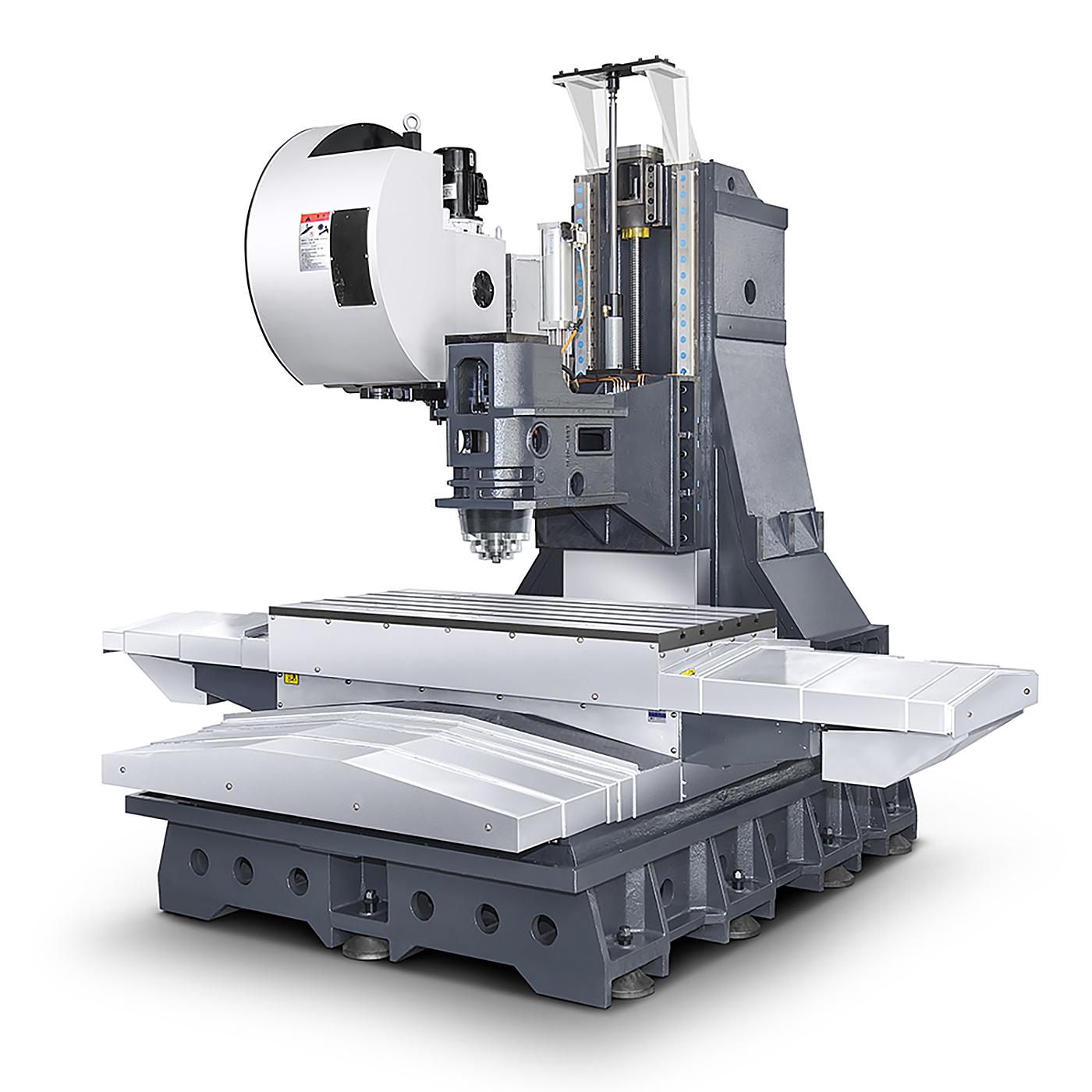

Multifunctional engraving and milling machine integrating heavy cutting and high 1
Img 1

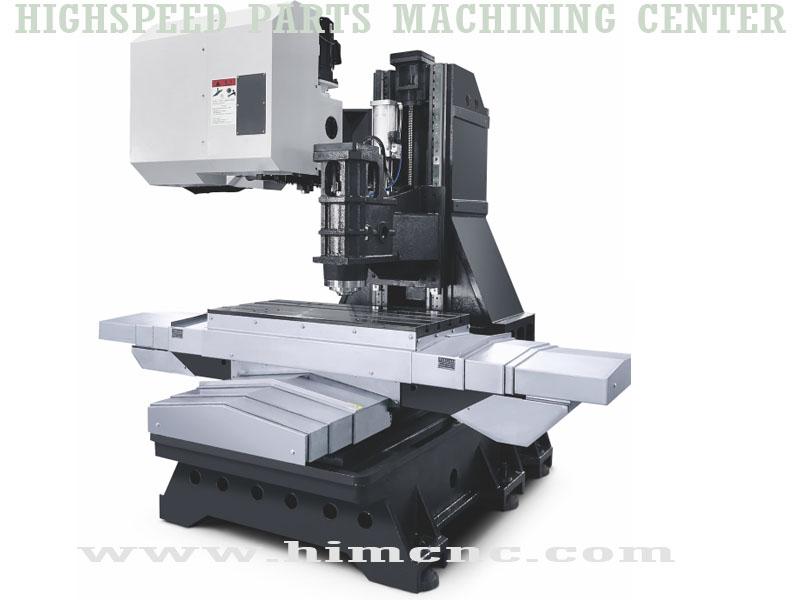

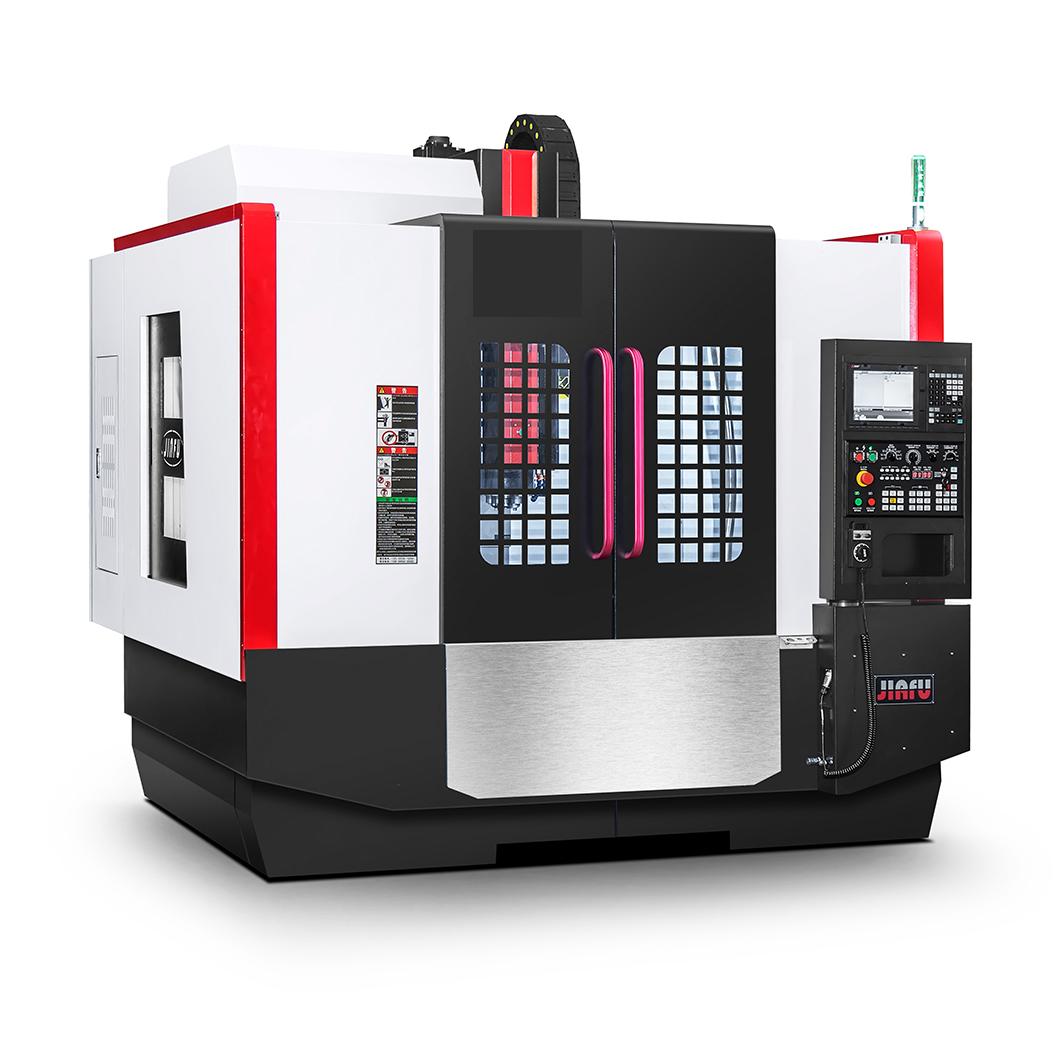

Multifunctional engraving and milling machine integrating heavy cutting and high 2
Img 2

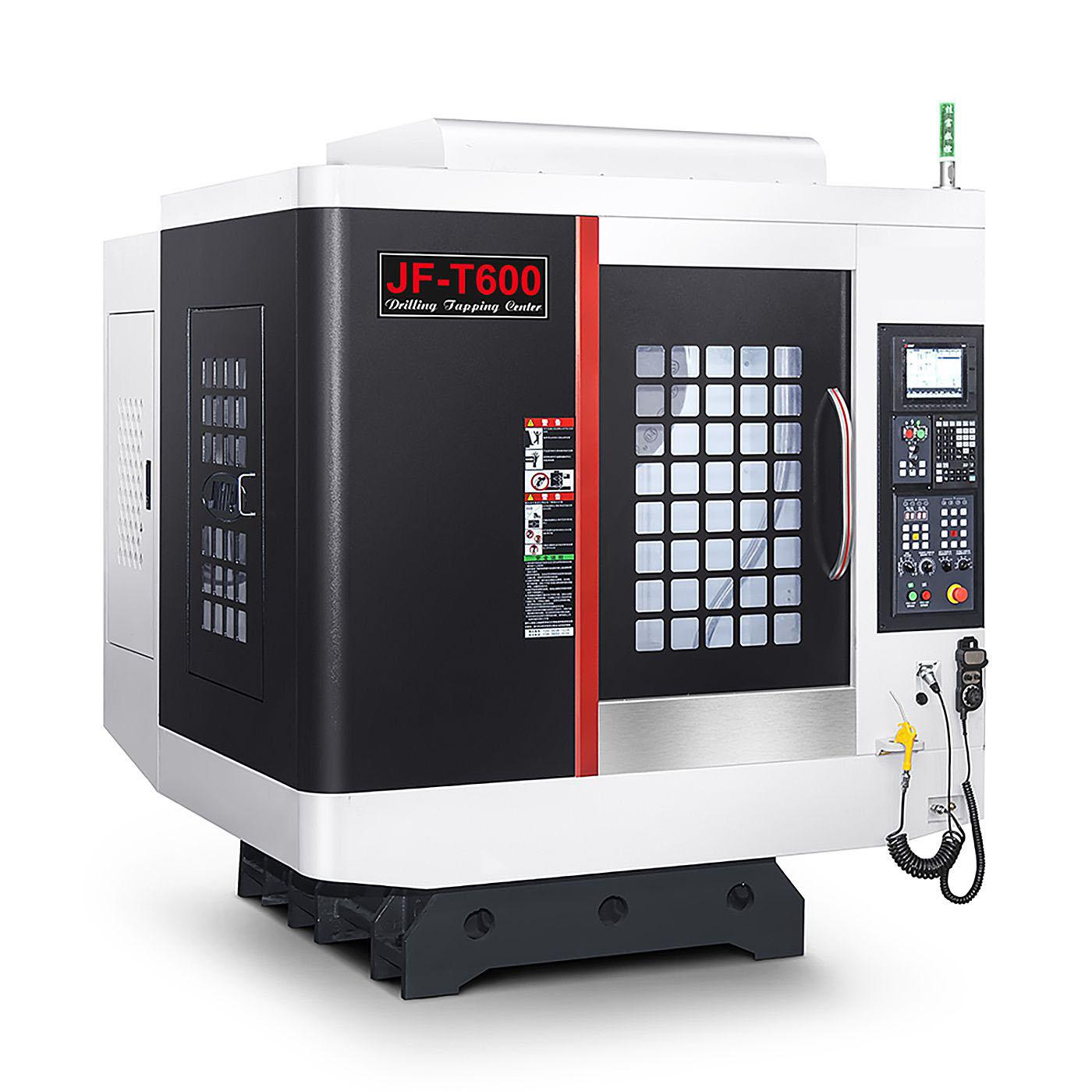

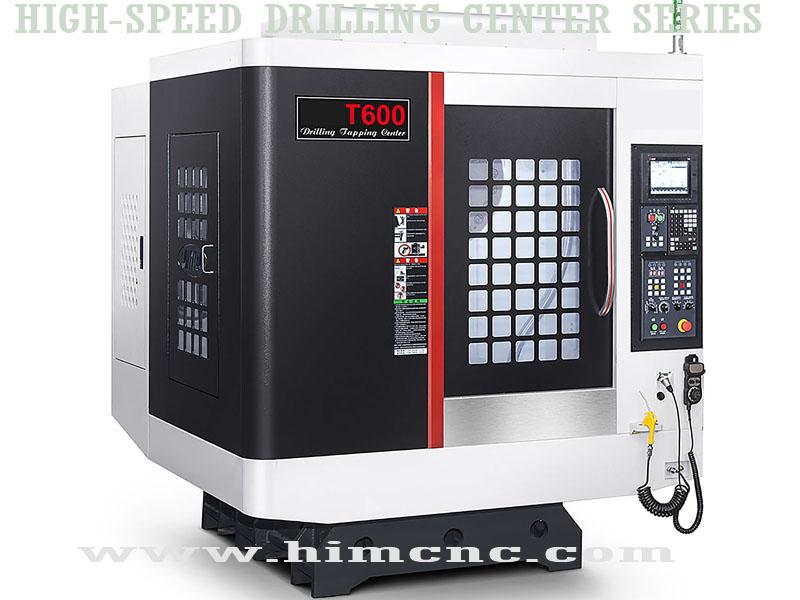

Multifunctional engraving and milling machine integrating heavy cutting and high 3
Img 3

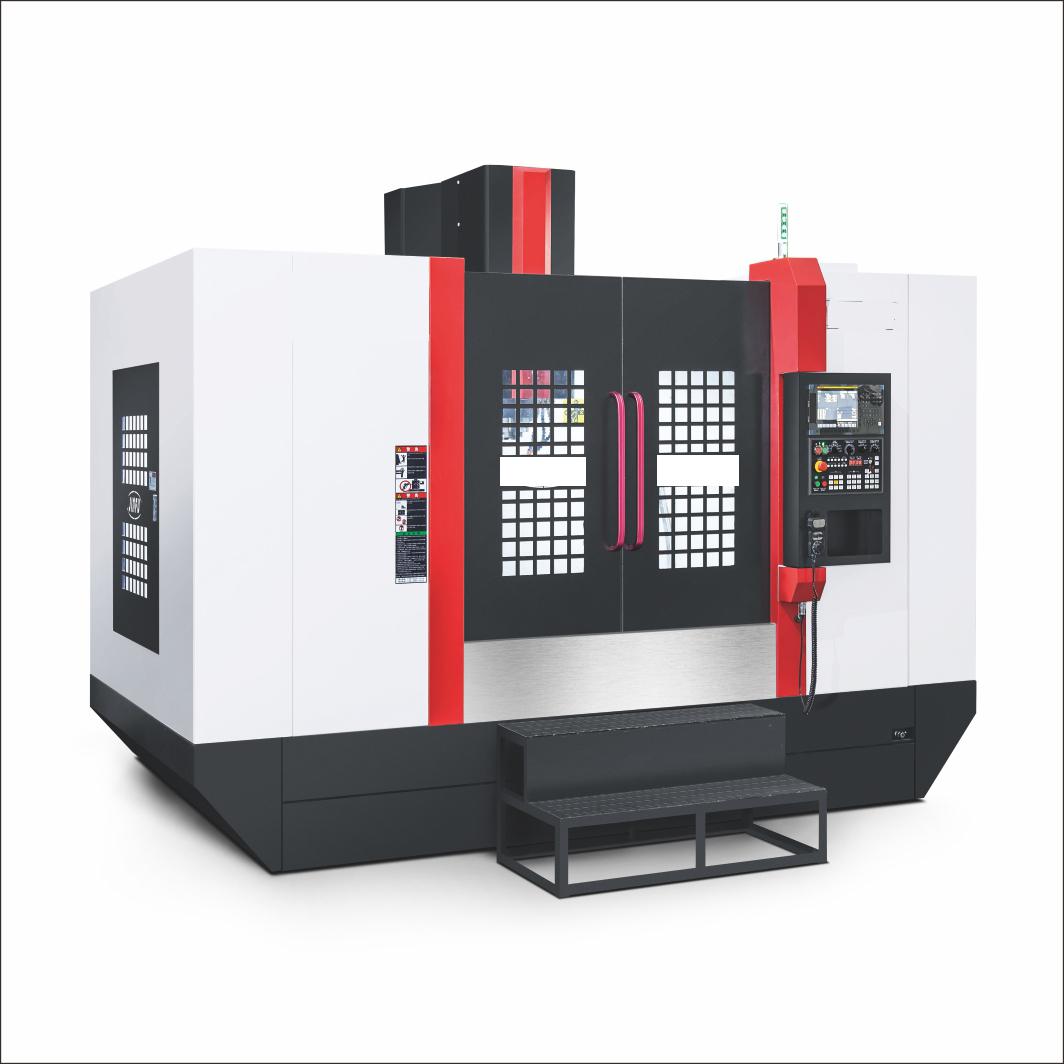

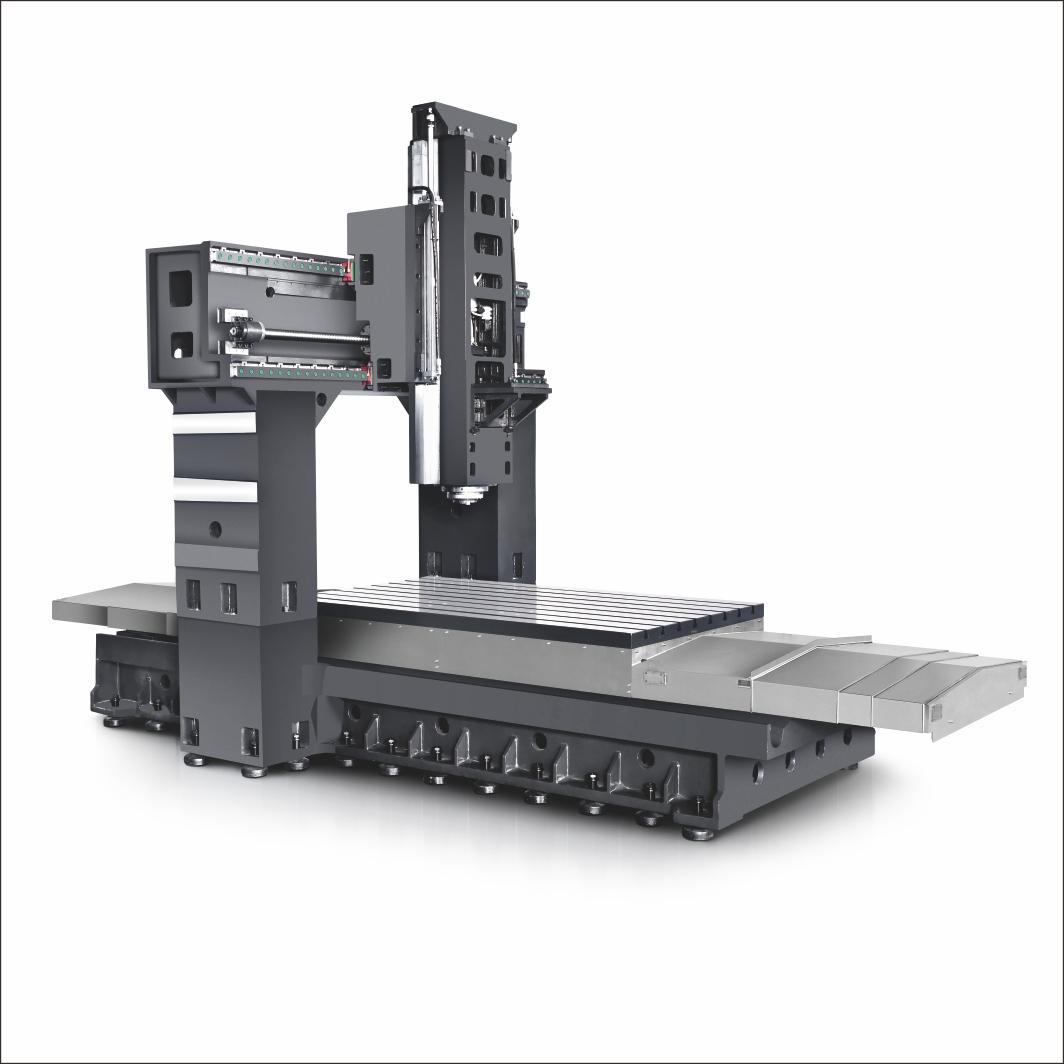

Multifunctional engraving and milling machine integrating heavy cutting and high 4
Img 4

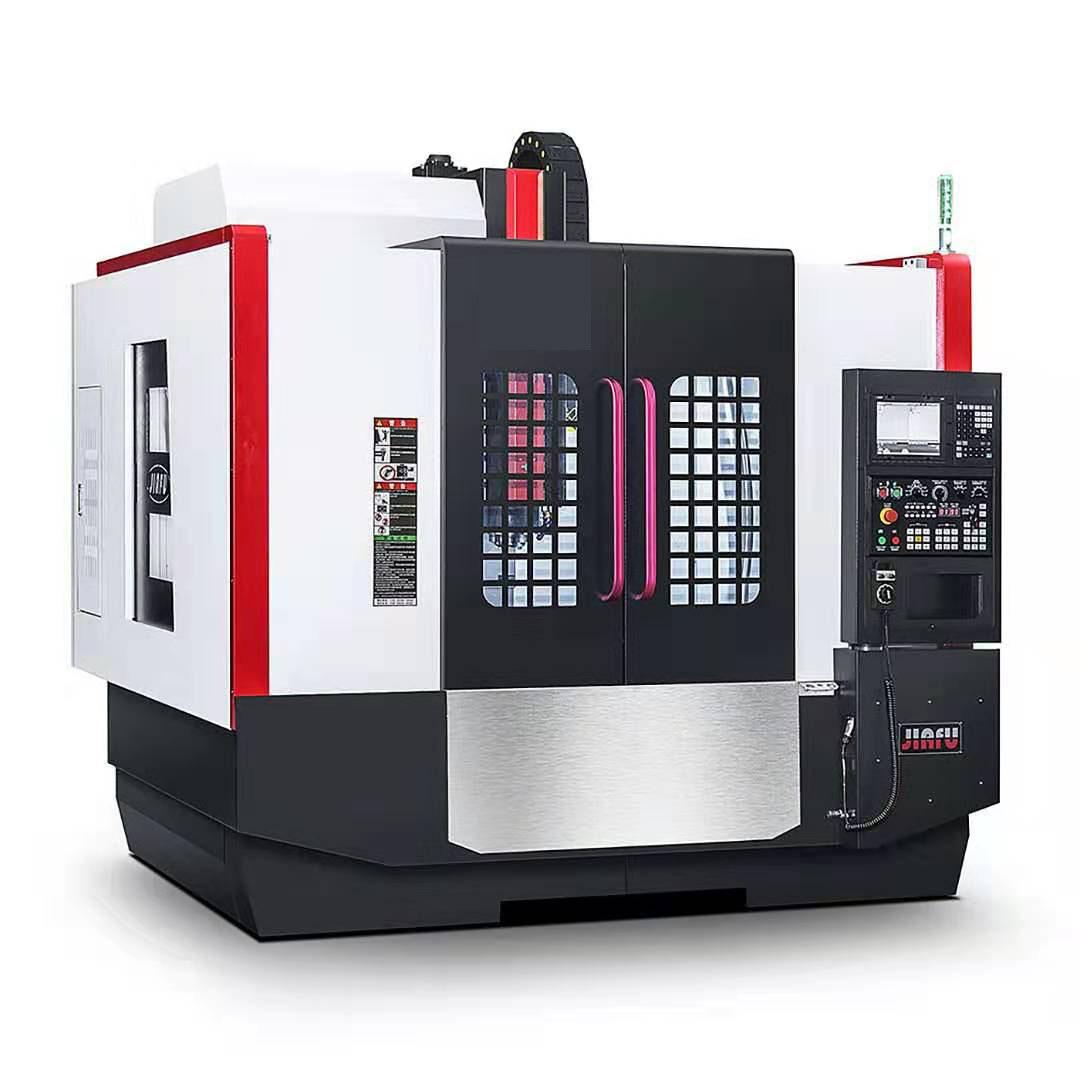

Multifunctional engraving and milling machine integrating heavy cutting and high 5
Img 5

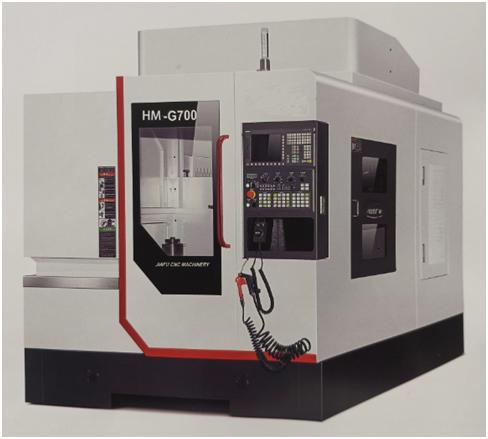

Multifunctional engraving and milling machine integrating heavy cutting and high 6
Img 6

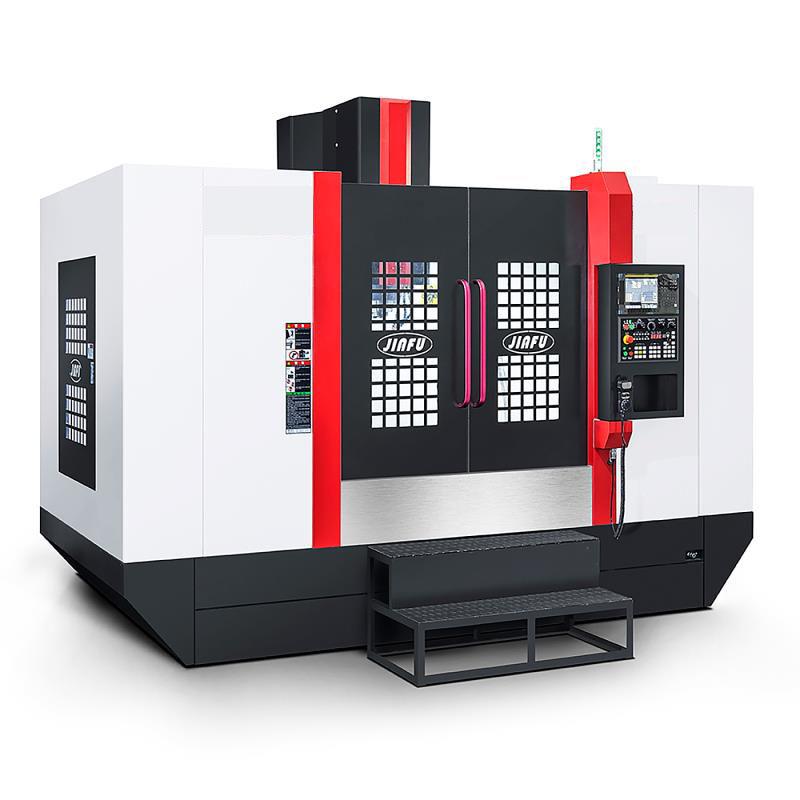

Multifunctional engraving and milling machine integrating heavy cutting and high 7
Img 7

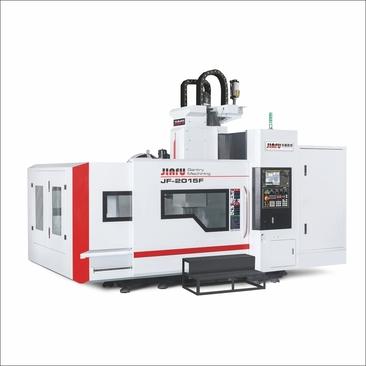

Multifunctional engraving and milling machine integrating heavy cutting and high 8
