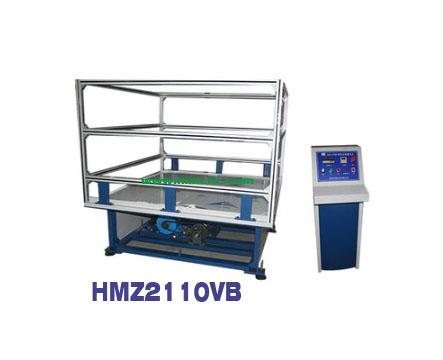

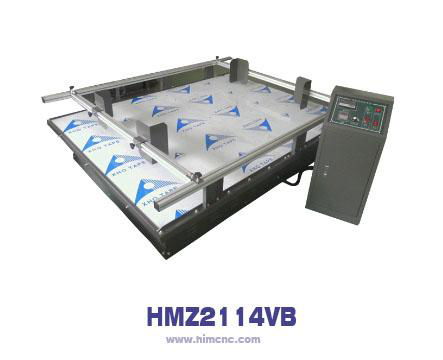

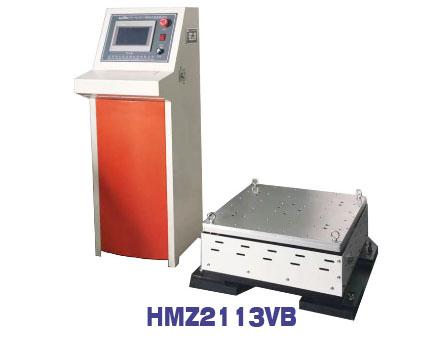

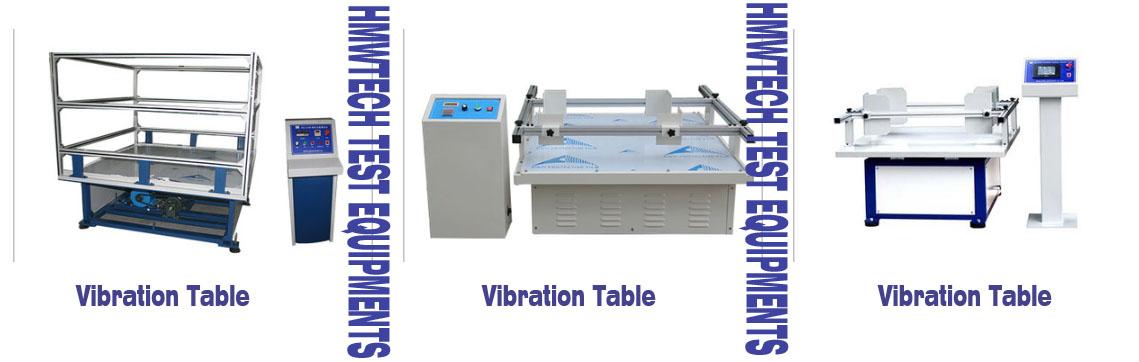

The simulated transportation vibration table is an assessment of the ability of various items under specific loads to withstand actual road conditions during road vehicle transportation, in order to obtain the impact of actual conditions on the items in the laboratory, thereby providing a basis for evaluating or confirming the items and their packaging.

The simulated transportation vibration table will also become the finalized product of our factory, which is mainly used in the testing of large and heavy products such as furniture and household products. In addition to the above two specifications, we can accept and have manufactured the same type of test machine with a rated load of not more than 2500 pounds. The simulated transportation vibration testing machine is mainly used to simulate the bumpy environment of the goods in the container during transportation, and test the structural strength of the product and the protective ability of the packaging to the product.

This machine is suitable for simulating transportation test of toys, electronics, furniture, gifts, ceramics, packaging and other products after packaging, and conforms to American and European transportation standards.

1. Vibration frequency digital display, high accuracy;

2. Synchronous silent broadband transmission, low noise;

3. The sample clamp adopts the guide rail type, which is convenient and safe to operate;

4. Heavy channel steel base is equipped with damping rubber, easy to install, strong load, and stable operation;

5. According to the similar equipment in Europe and America, the rotary vibration conforms to the transportation specifications in Europe and America;

6. It is applicable to the inspection and test of product packaging in toy, electronics, furniture, gifts, ceramics, packaging and transportation industries;

7. According to the similar equipment in Europe and America, the rotary vibration conforms to the transportation specifications in Europe and America.

Maximum test load KG 100 (or specified)

Frequency range rpm 100~300

Amplitude range mm 25.4

Vibration mode Gyration

Simulated speed 25~40km/h

Platform size mm 1000 * 1200 (or specified)

Machine weight KG about 150

Power supply voltage 220V 50HZ
