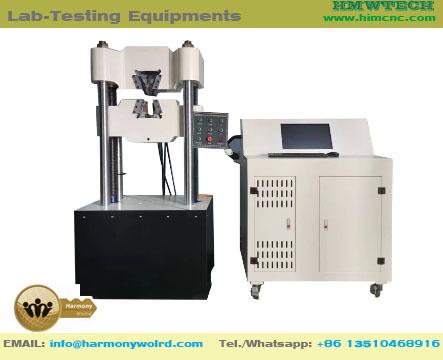

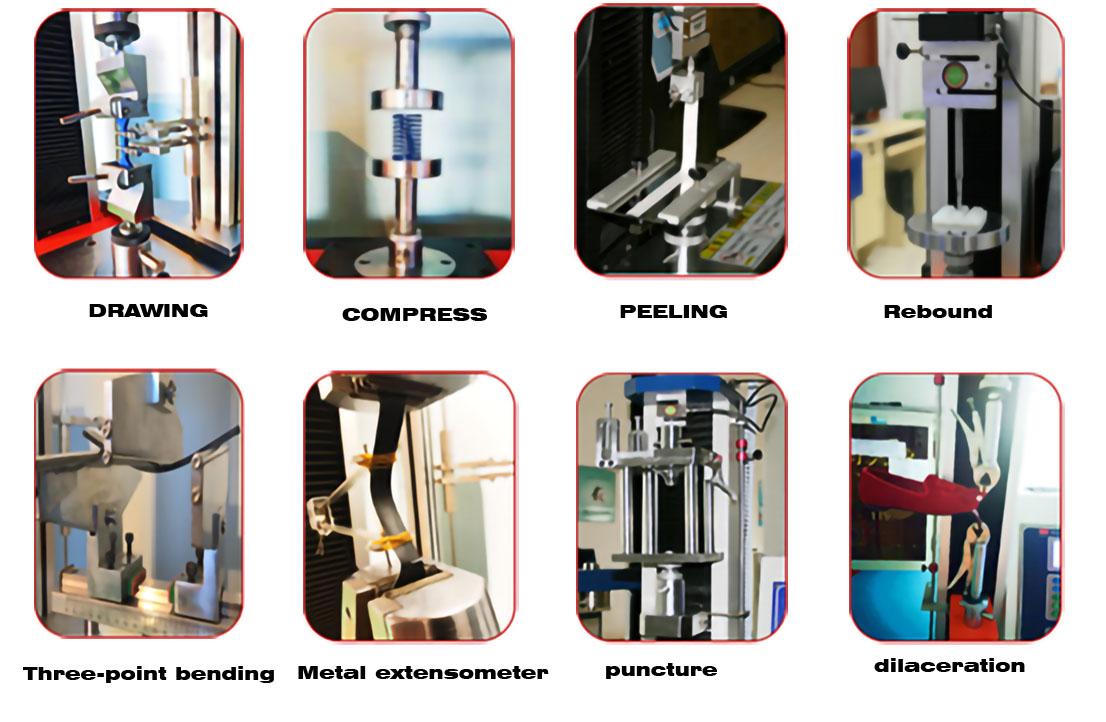

This testing machine is a bottom-mounted hydraulic universal testing machine, which is mainly used for tensile, compression, bending, shear and other tests of metal materials and non-metallic materials such as cement, concrete, plastic, etc. Add accessories to complete the mechanical property test of steel strand, wire rope, chain, welding electrode, adhesive tape and components. It is widely used in machinery, metallurgy, transportation, construction engineering, building materials, colleges and universities, quality inspection and other industries and departments. With reliable performance, economy and practicality, it is an ideal testing machine for material detection in production and engineering.

Maximum test force kN 2000KN/200T

Test force accuracy level 1

Relative error of test force indication ≤ ± 1% of indication

Test force resolution 0.01kN

Displacement measurement resolution mm 0.01

Deformation measurement accuracy mm ± 0.5% FS

Test speed mm 0.1-50mm/min adjustable

Maximum tensile test space mm 620mm

Maximum compressed space mm 520mm

Clamping diameter of round sample jaw mm Φ 13-50

Clamping thickness of flat sample jaw mm 0-20mm

Pressure plate diameter Φ 204mm

Spacing between two upright columns: 510mm

Bending support roll spacing 40-500 mm

Working piston stroke 150mm

Clamping mode Hydraulic clamping

Oil pump motor power 3KW

Beam moving motor power 0.55KW

Overall dimension of main engine 730 × five hundred and seventy × 1900（mm）

Weight 2600 (kg)
