| Model: | HMS90/91 |
|---|---|
| Brand: | OEM/ODM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Test Bench |
| Label: | Tensile test , Tensile testER , testing machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:30 Mar, 2024 |

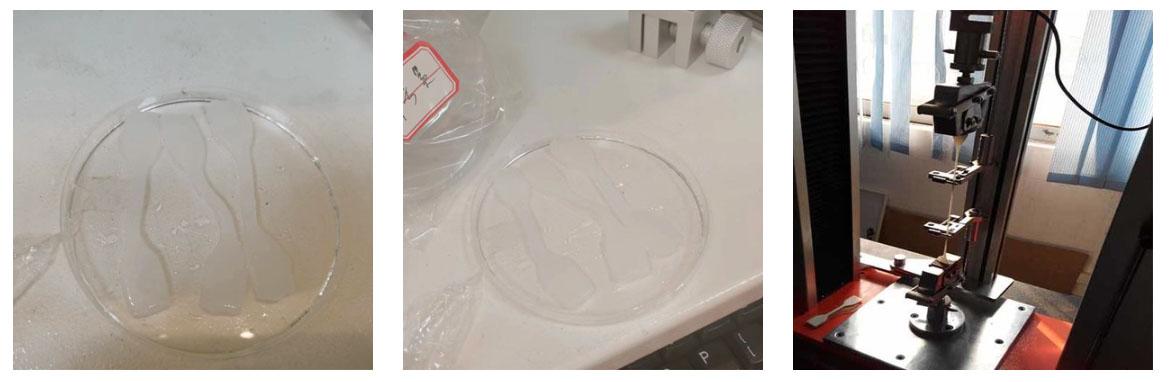

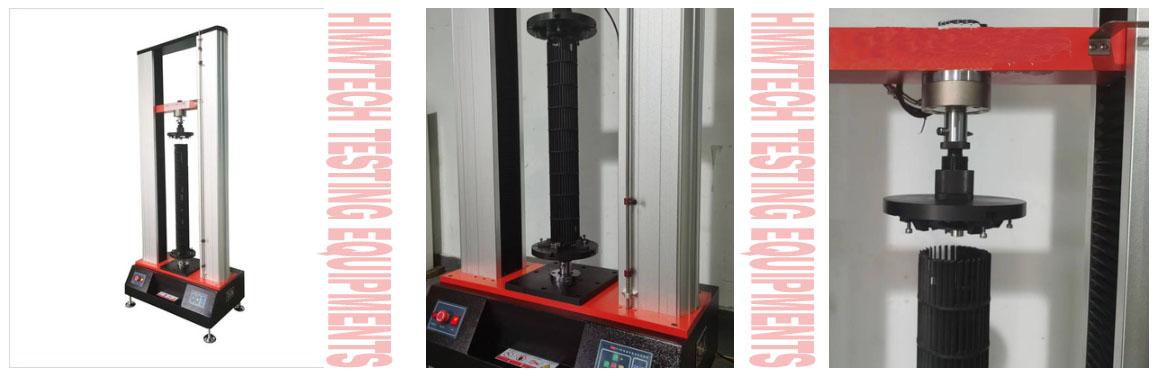

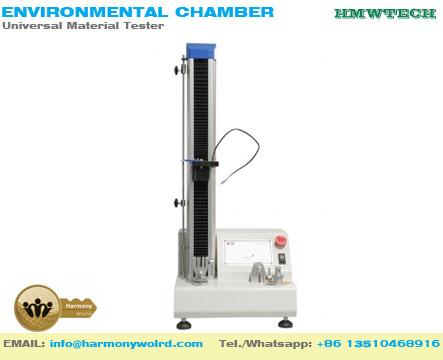

This machine can test metal, rubber, plastic, textile, leather, paper, composite materials.. etc. tensile, compression, adhesion, peeling, tearing, etc. The newly developed B-type display operation mode is matched with the machine It is also the most flexible in type, and has data output that can be connected with special software to perform analysis, statistics, storage and other functions in the computer. The operation is simple, the transmission efficiency of this machine is as high as 85%, the energy loss is small, the accuracy is high, and the scalability is large. It can be operated by a single machine or connected to a computer.
Features
It can carry out tensile, pressure, peeling, tearing, shearing, ring initial adhesion... and other tests. It can display force and displacement at the same time. It is driven by a stepping motor and driven by a precision ball screw. It can directly set the test speed. Complete, automatic return function quick release connector, can use a variety of different fixture one-key test functions, easy to operate, can be directly connected to the printer, output reports can be operated by a single machine or online with a computer, USB interface, data analysis.
Standards compliant
GB/T2792，ASTM D3330，GB/T 12914-1991，GB 13022-91，GB/T1040-92，GB2792-81，GB/T 14344-9，GB/T 2191-95，QB/T 2171-95，GB/T 10003-2008
SPECIFICATION
| Model | HMS90 | HMS91 |
| Capacity | 10N, 20N, 50N, 100N, 200N, 500N, 1KN (can select double capacities preparation) | |
| Display | Computer display mode | |
| Force Resolution | 1/500,000 | |
| Force Accuracy | ≤±0.3% | |
| Stroke Resolution | 0.005mm | |
| Control Mode | All computerized operation mode. | |
| Test Stroke | 500mm | 800mm |
| Test Width | Ø140mm | |
| Test Speed | 0.5~600mm/min, can set by computer, with up & down fast adjustment button of grips | |
| Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa | |
| Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function | |
| Machine Dimension(W×D×H) | 40×30×92cm | 40×30×120cm |
| Machine Drive | Stepper motor drive, synchronous wheel and precision ball screw drive | |
| Power | 180W | |
| Machine Weight | Approx 28kg | Approx 35kg |
| Power Supply | 220V 50/60HZ 10A | |
| Standard Device | 1 set of grips, computer software, USB computer connection wire | |
| Optional | Personal computer | |
| Payment Terms: | TT |
|---|---|
