| Model: | JGC-8 |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Relay & Contactor |
| Label: | ceramic vacuum relay , vacuum relay , HV vacuum relay |
| Price: |
¥600
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:16 Apr, 2024 |
Contact form: SPDT
Working voltage: 15kV
Carrying current: 30A
Wire pack working voltage: 12Vdc/24Vdc/26.5Vdc/115Vdc
Features: small, load switch (tungsten contacts), suitable for frequent operation; ceramic shell, high withstand voltage; high carrying current.
|

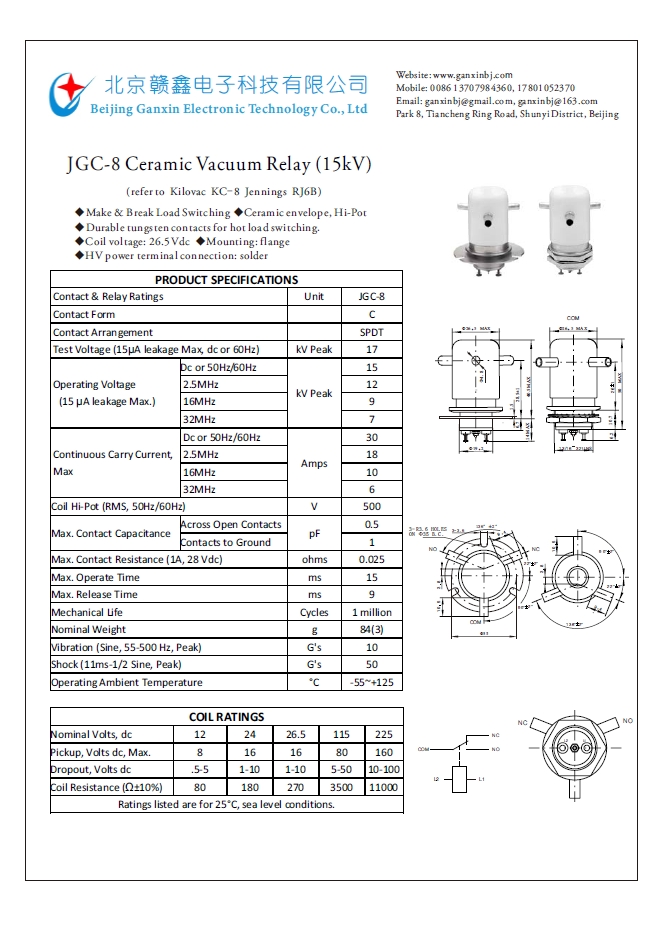

Nominal specifications |
Unit |
Type/Value |
|
Contact number |
|
C |
|
Contact form |
|
SPDT |
|
Test voltage max. (15μA leakage max.) |
KV peak |
17 |
|
Operating voltage max. (leakage I≤15μA) |
||
|
DC or 50Hz/60Hz |
KV peak |
15 |
|
2.5MHz |
KV peak |
12 |
|
16 MHz |
KV peak |
9 |
|
32 MHz |
KV peak |
7 |
|
Continuous carrying current |
||
|
DC or 50Hz/60Hz |
Amps |
30 |
|
2.5MHz |
Amps |
18 |
|
16 MHz |
Amps |
10 |
|
32 MHz |
Amps |
6 |
|
Coil breakdown voltage (50Hz/60Hz, v rms) |
V |
500 |
|
Contact capacitance max. |
||
|
Across open contacts |
pF |
0.5 |
|
Contacts to ground |
pF |
1 |
|
Resistance contact max. (1A, 28 vdc) |
ohms |
0.025 |
|
Max operating time |
ms |
15 |
|
Max release time |
ms |
9 |
|
Mechanical life |
Cycles |
1 million |
|
Nominal weight |
g (oz) |
84 (3) |
|
Vibration frequency (sine, 55~500Hz, peak) |
G’s |
10 |
|
Shock grade (11ms, 1/2 sine, peak) |
G’s |
50 |
|
Working ambient temperature |
℃ |
-55~+125 |
|
Coil Specifications |
||||
|
Nominal voltage, vdc |
12 |
24 |
26.5 |
115 |
|
Max pickup voltage, vdc |
8 |
16 |
16 |
80 |
|
Drop out voltage, vdc |
0.5-5 |
1-10 |
1-10 |
5-50 |
|
Coil resistance (Ω ± 10%) |
80 |
180 |
270 |
3500 |
|
Ratings listed are obtained under 25℃ sea level conditions. |
||||
High voltage terminal connections: S-solder, w-screw
Mounting: F-flange, P-bolted
Coil voltage:
/26.5vdc-26.5vdc
/24 vdc-24 vdc
/12 vdc-12 vdc
/115vdc-115vdc
