| Model: | - |
|---|---|
| Brand: | Sailotar |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Optical Fiber |
| Label: | 2+1 fiber combiner , pump combiners , side pump combiner |
| Price: |
¥600
/ pc
|
| Min. Order: | 2 pc |
| Live Chat: | Last Online:06 Jan, 2023 |

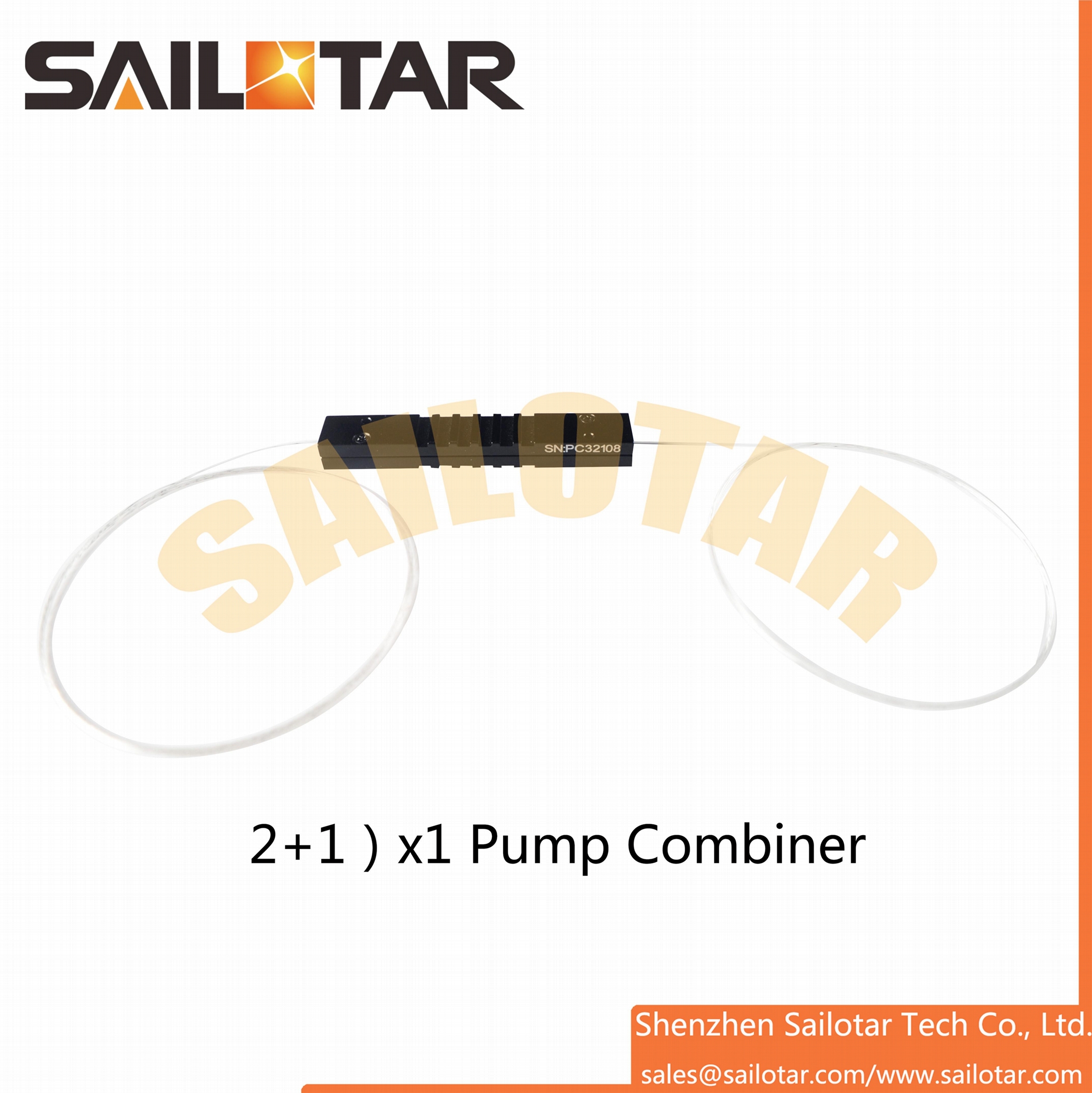

This 2+1)×1 multi-mode fiber combiner is designed for high power fiber laser application. It combines 7pump lasers into one multi-mode output fiber. Fiber type can be customized.
Specifications
|
Parameters |
2+1)x1 Multi-Mode Pump Combiner |
|||
|
Pump Wavelength |
800~1000nm |
|||
|
Signal Wavelength |
1000~1100nm |
|||
|
Pump Fiber |
105/125 0.15NA(or 0.22NA) |
|||
|
Input Signal Fiber |
HI1060 (or 6/125) |
10/125 SCF or DCF 12/125 SCF or DCF 15/125 SCF or DCF
|
20/125 SCF or DCF |
25/250 DCF 30/250 DCF |
|
Output Fiber (optional) |
6/125DCF 10/125 DCF 12/125 DCF 20/125 DCF 25/250 DCF 30/250 DCF
|
10/125 DCF 12/125 DCF 20/125 DCF 25/250 DCF 30/250 DCF |
20/125 DCF 25/250 DCF 30/250 DCF |
25/250 DCF 30/250 DCF |
|
M2 |
1.3 |
|||
|
Optical Isolation |
>=25dB |
|||
|
Power Handling/port |
25~50W |
|||
|
Pump Efficiency |
≥90% (typ. 93) |
|||
|
Signal Insertion Loss |
<0.5 (Typ. 0.3) |
<0.7 (Typ. 0.5) |
||
|
Environment Temperature |
-5 ~ +70℃ |
|||
|
Storage Temperature |
-40 ~ +80℃ |
|||
|
Operating Humidity |
5 ~ 95 %RH |
|||
|
Fiber Length |
0.8M (or custom) |
|||
|
Package |
5x5x35mm or 70x12x8mm or 100x15x10mm |
|||
