Hello friend,

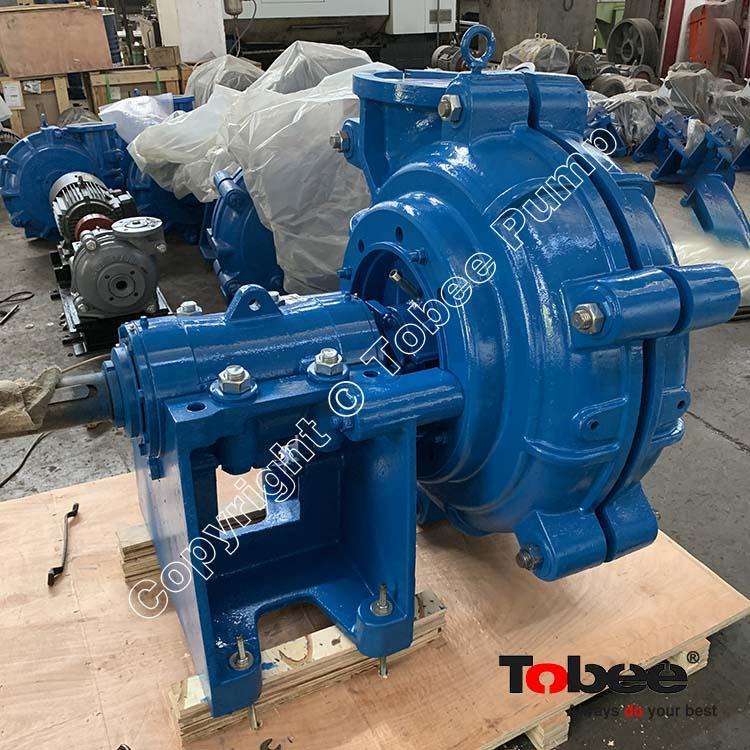

Many thanks for your interesting about our Tobee® 8x6 AH Slurry Pumps.
8x6E-AH Slurry Pump is used for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes, it could also be used in dredging and drilling mud application etc.
1、Design Features:
√ Bearing assembly - large diameter shaft with short overhang contributes to long bearing life.
√ Liners - easily replaceable liners are bolted, not glued to the casing for positive maintenance.
√ Casing - Casing halves of cast or ductile iron provide high operating pressure capabilities.
√ Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal.
2、8x6 E AH Slurry Pump Data Sheet:
| Model |
Max. Power (kw) |
Materials | Clear Water Performance |
Impeller Vane No. |
|||||
| Liner | Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
| 8/6E-AH | 120 | M | M | 360-828 | 10-61 | 500-1140 | 72 | 2-9 | 5 |
3、8x6 E AH Slurry Pump Applications:
|
• Mining |
• Gypsum |
• Limestone |
• Mineral processing |
|
• FGD |
• Chemical slurries |
• Tailings |
• Lime slurries |
|
• Ash handing |
• Cyclone feeds |
• Waste sludge |
• Coarse sand |
|
• Lime mud |
• Phosphoric acid |
• Dredging |
• Construction |
|
• Alumina Industry |
• Power Plant |
• Potash Fertilizer Plant |
• Other industries
|
Should you have any questions and requirements, please feel free contact us.
