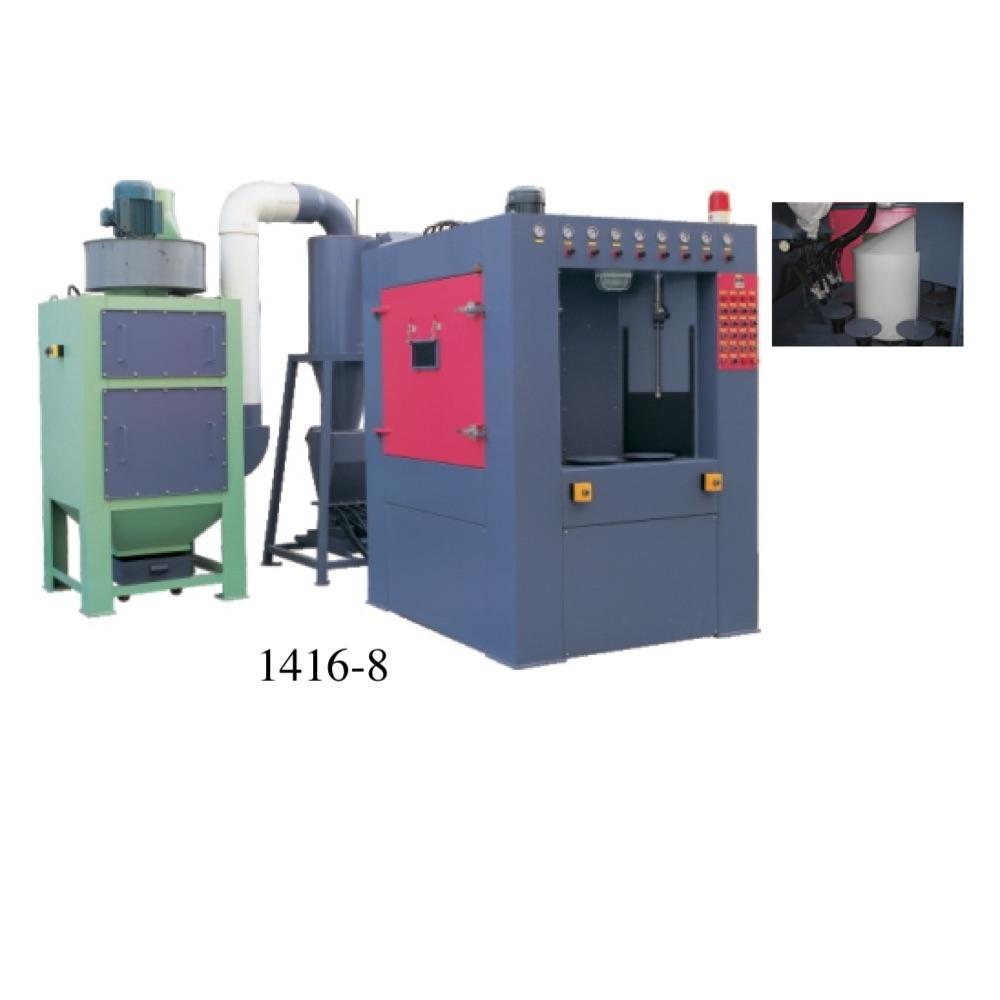

Automatic rotary indexing satellite turntable blast machines consists of cabinet enclosure, a indexing turntable with eight or twelve rotary satellites, oscillating system, eight automatic suction blast guns, one automatic blow-off gun, reclaimer, reverse pulse cartridge dust-collector and PLC control system, etc.
It's suitable for automatica precise repeatable blast processing surface of small size components with cones or cylinder shape with no part-on-part contact possible, application ranges from delicate deburring to shot peening for small to middle scale production.
Large working chamber allows more options for gun placement and more room for maintenance.
Turntable comes either for one-staion, two-station or three-station indexing. One-station indexing puts one part in each of the blast, blow-off, and load positions, two-station indexing puts two parts in each of the blast, blow-off, and load positions, three-station indexing puts three parts in each of the blast, blow-off, and load positions.
| Model |
1820 |
1518 |
1416 |
|
| Cabinet (WxDxH mm) |
1800x2000x2000 |
1500x1800x2000 |
1400x1600x2000 |
|
| Blast Chamber (WxDxH mm) |
1750x1950x800 |
1450x1750x800 |
1350x1550x800 |
|
| Loading area |
380x380 |
310x310 |
280x280 |
|
| Turntable | dia,mm |
1350 |
1150 |
1050 |
| loading kg max |
250 |
200 |
200 |
|
| processed parts(DiaxH mm max) |
350x350 |
280x280 |
250x250 |
|
| Satellite |
8 |
8 |
8 |
|
| Blast gun |
8 |
8 |
8 |
|
| Blow-off gun |
2 |
2 |
2 |
|
| Exhauster (Kw) |
7.5 |
5.5 |
5.5 |
|
| Air source: | Pressure bar |
0-7 |
||
| Flow m3/min |
8 |
8 |
8 |
|
| Model |
1316 |
1014 |
1212 |
|
| Cabinet (WxDxH mm) |
1300x1600x2000 |
1000x1400x2000 |
1200x1200x2000 |
|
| Blast Chamber (WxDxH mm) |
1250x1550x800 |
950x1350x800 |
1150x1150x800 |
|
| Loading area |
260x260 |
180x180 |
180x180 |
|
| Turntable | dia,mm |
1000 |
800 |
800 |
| loading kg max |
200 |
150 |
150 |
|
| processed parts(DiaxH mm max) |
230x230 |
150x150 |
150x150 |
|
| Satellite |
8 |
8 |
8 |
|
| Blast gun |
8 |
4 |
4 |
|
| Blow-off gun |
2 |
2 |
2 |
|
| Exhauster (Kw) |
5.5 |
3.0 |
3.0 |
|
| Air source: | Pressure |
5-7 bar |
||
| Flow |
8 m3/min |
4 m3/min |
4 m3/min |
|

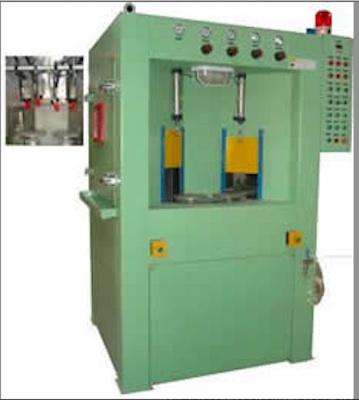

Automatic rotary indexing satellite turntable wetblast machine consists of a large cabinet enclosure, a indexing turntable with eight rotary satellites, gun oscillating system, four automatic suction blast guns, sand pump and PLC control system, etc
It's suitable for automatic precise repeatable blast processing surface of small size components with cones or cylinder shape with no part-on-part contact possible, used for cleaning and finishing all kinds of parts, produce a smooth, a sericeous surface, a bright shine appearance.
Large working chamber allows more options for gun placement and more room for maintenance.
Turntable comes two-station indexing, two parts in each of the blast, and load positions.
PLC controlled Wetblast Cabinet with 8 work piece holding satellites.
Two blasting sections with automatic oscillating guns angled for targeted blasting.
Workpiece moves in a rotary motion during oscillated blasting for complete coverage.
During blasting the two processed work piece stops at the entry bay for unloading and 2 new work pieces can be loaded.
Features:
Specifications:
Model: 1212W-4
Main cabinet: L1200xW1200xH2000
Indexing table: Dia. 800mm
speed: 3rpm
motor 750W
Satellite: Dia. 150mm
speed: 0-60rpm
motor: 750W
Blasting gun oscillating system: motor 750W
speed: 6.5rad/s
Blast gun: 4 sets
Blast method: suction blast.
Processable parts: Dia150 x H200mm max, weight: 200kg max.
