High Temperature 1700℃ 1800℃ Molybdenum Disilicide Mosi2 Heating Element for Furnaces

MoSi2 rod heating element is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.

Product Description

Specifications

Sizes of Molybdenum Sisilicide MoSi2 Heating Element

1. Diameter: 3/6mm; 6/12mm; 9/18mm; 12/24mm
2. Length: from 150 to 700mm, customized available
3. Operation temperature: from 500℃ to 1800℃.

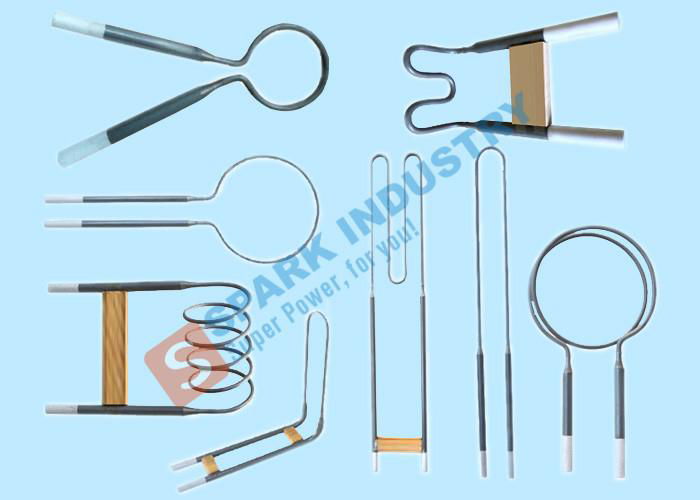

4. Shape: Straight; U ; W ; L and other Special Types
5. Function: ceramic, magnetic material, glass, metallurgy, fireproofing material furnaces

Following should be provided when ordering MoSi2 Heating Elements:

• Grade: 1700, 1800
• Diameter of Cold Zone / Hot Zone: c/d, in/in or mm/mm
• Length of Hot Zone: Le*, in. or mm
• Length of Code Zone: Lu*, in. or mm (Lu includes l, k and m as in the drawing below)
• Shank Spacing: a*, in. or mm for U and W shapes
• Specify Le, Lu, and a with the same units (e.g. all as in. or mm).
