| Model: | 71500 |
|---|---|
| Brand: | Bangoo |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Hand Tools |
| Label: | AC hose crimper , hydraulic crimper , crimping tools |
| Price: |
US $95
/ pc
|
| Min. Order: | 50000 pc |
| Live Chat: | Last Online:14 Jul, 2022 |
Hydraulic A/C Hose Crimper kit; AC repair tools; Handheld Hose crimping
Tools; Hose crimper; Hose crimping machine
Features
Hydra-Krimp for Barbed and Beaded Hose Fittings
The new Patent pending "HYDRA - KRIMP" makes crimping barbed and beaded fittings as easy as
1 - 2 - 3!
The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.
The Hydra- Krimp can be used on both beaded and barbed hose fittings.

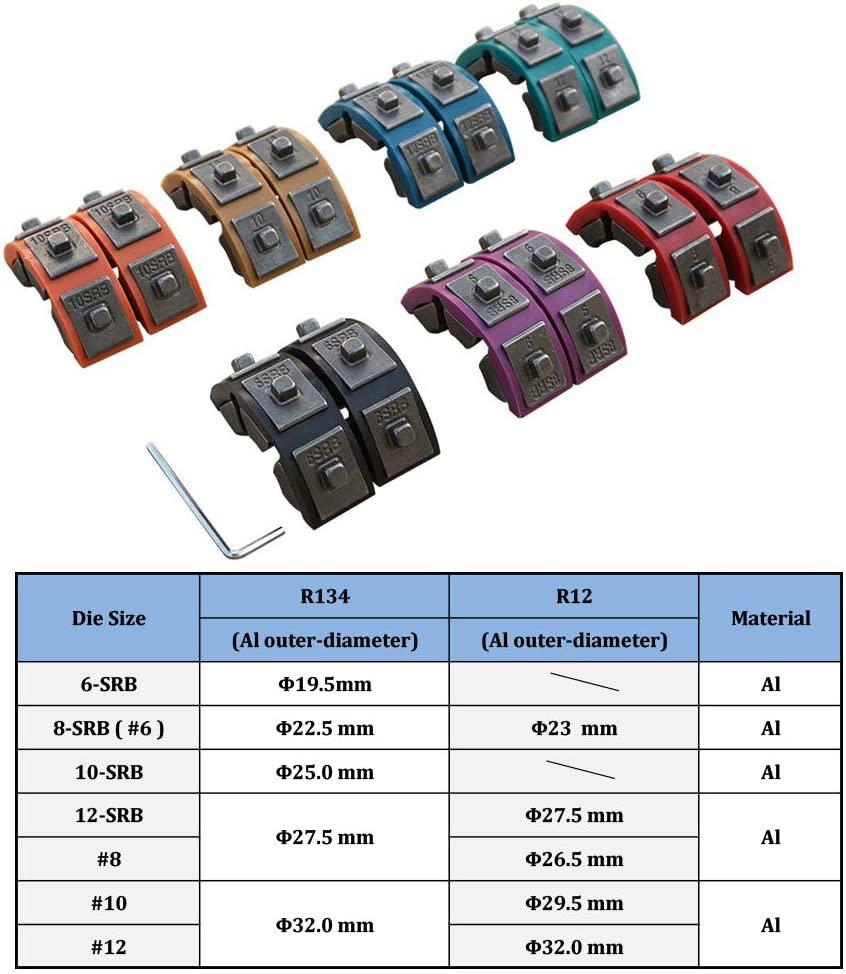

The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced
Barrier #6, #8, #10 and #12.
The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom molded
Case and includes:
KIT INCLUDES
|
71500 - 001 |
Hydra - flare assembly |
|
71500 - 8 |
Die Set - #8 (13/32") |
|
M71500 - 10 |
Die Set - #10 (1/2") |
|
M71500 - 12 |
Die Set - #12 (5/8") |
|
71500 - 6SRB |
Die Set - #6 (5/16" Reduced Barrier) |
|
71500 - 8SRB |
Die Set - #8 Reduced Barrier (13/32) |
|
71500 - 10SRB |
Die Set - #10 (1/2" Reduced Barrier) |
|
71500 - 12SRB |
Die Set - #12 (5/8" Reduced Barrier) |
|
71500 - PB |
Die Set Plastic Box |

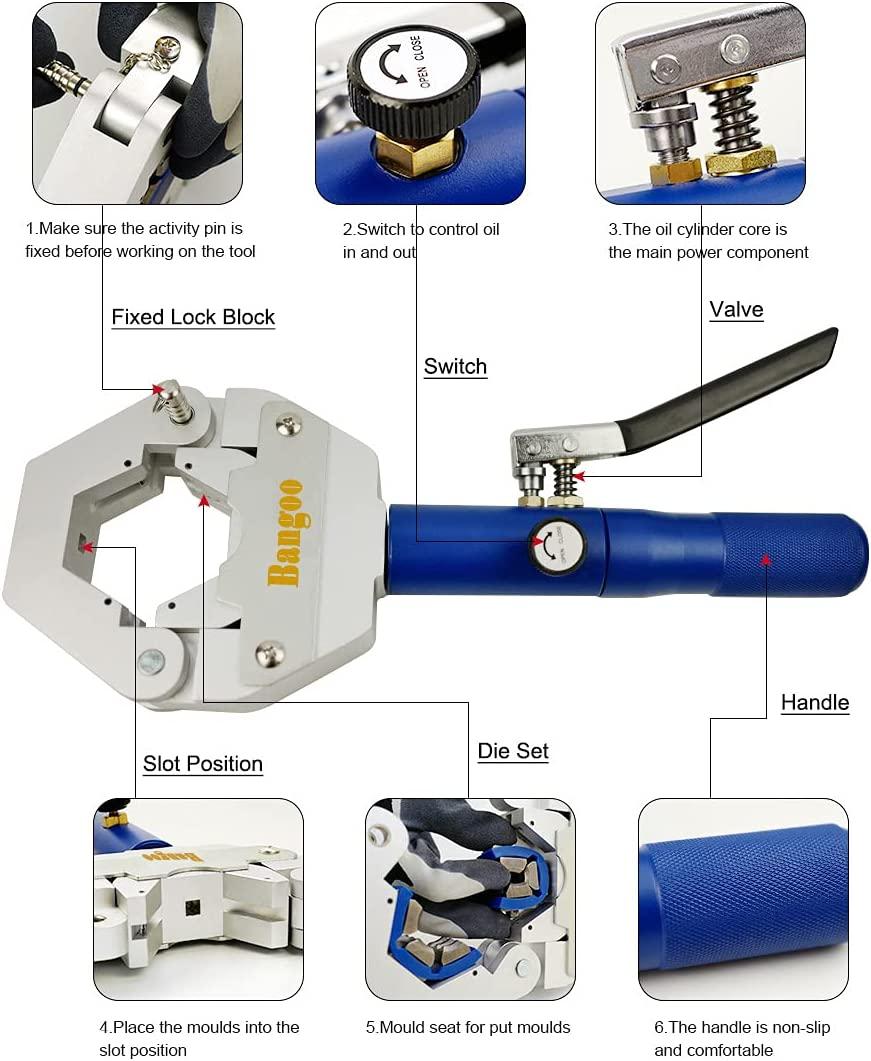

How to use?
Very easy for using:
1. Remove pin and loose the handle till you can "Open" top yoke.
2. Select correct die set (refer to back page for description )
3. Insert the die into joke.
4. Position fitting and hose in the crimper and close the yoke.
5. Insert pin securely.
6. Turn Body of tool clock wise until dies are snug against hose fitting.
7. Turn hydraulic valve to "closed "position.
8. Pump handle to crimp fitting onto hose. Continue pumping until handle comes to a stop.
9. Once crimp is complete, turn hydraulic valve to OPEN position.
