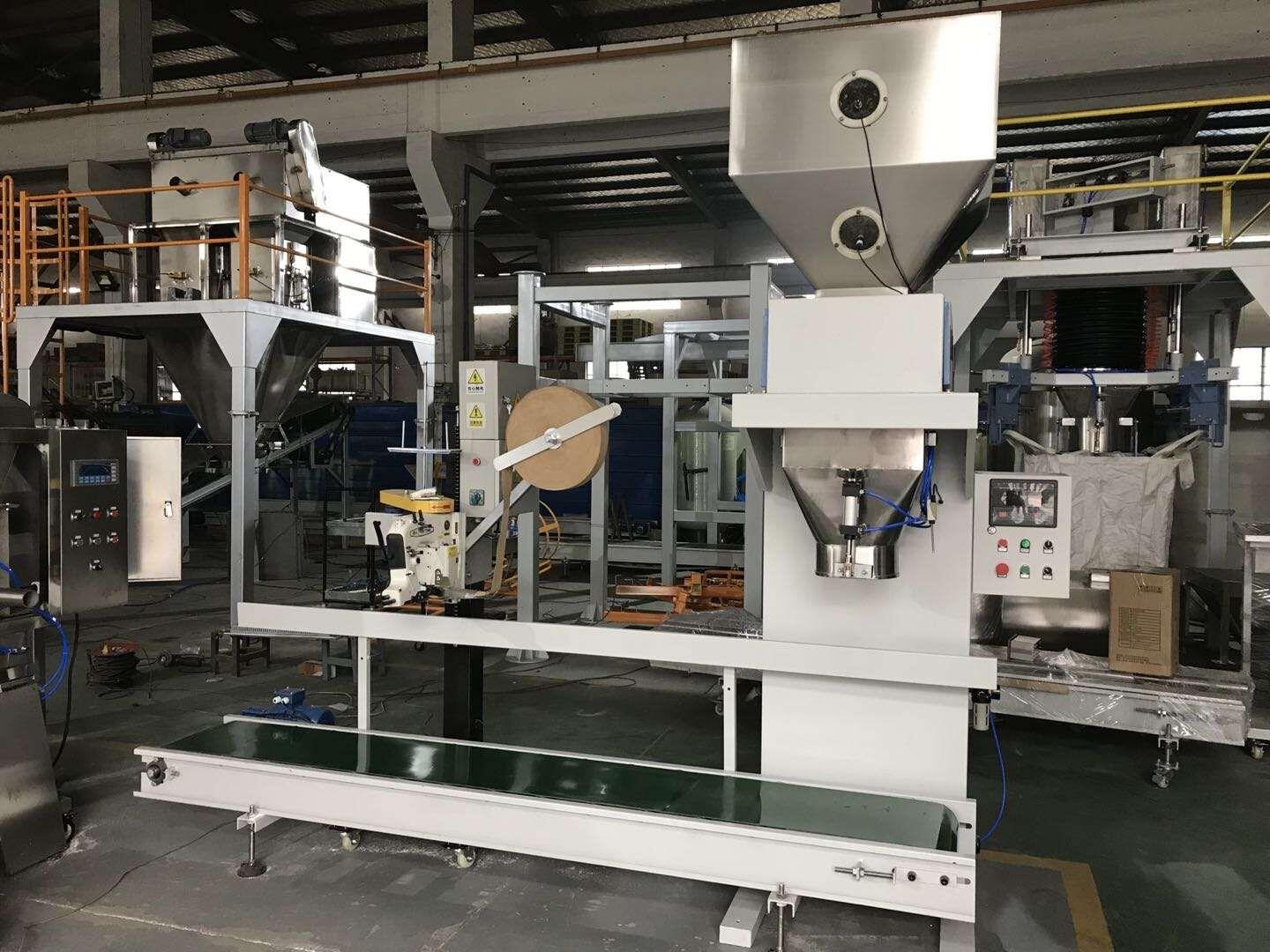

Free Flowing Granules Packing Machine Grains Bagging Machine

Application

BAGGING and PALLETIZING MACHINE. The product is conveyed to the weighing container by its own weight. In order to ensure regular and uniform flow, the product must be very free-flowing. It’s suitable for weighing packing all kinds of free flowing granules into bags, products such as plastic granules, masterbatch, grains, seeds, sugar, agricultural products, cereals, granular fertilizers, urea, sand, cat litter, and so on. Produced by Wuxi HY Machinery Co., Ltd.

It’s optional to install loading conveyors, dust collector, sewing machine, heat sealing machine, weight checker, metal detector, coding machine, robot palletizer, high-level palletizer, pallet wrapping machine, etc. to make the complete production line.

Gravity packing machine Wheat bagging machine Stone Kernels bagging machine Bone Flour bagging machine packing machine Canola Meal bagging machine Premix bagging machine Birdseed bagging machine packing machine horse Feeds bagging machine Meals and Stock Feeds baggingmachine Poultry Feeds bagging machine Whole Grains packing machine Cracked Grains bagging machine Food and Ingredients bagging machine packing machine

Automated Bagging Line

Fully Automatic Packing & Palletizing Line
Fully Automatic Packing Palletizing Line
Fully Automatic Packing Line
Fully Automatic Bagging Line
Fully Automatic filling and packaging line
automated bagging system automated bagging machine
Produced by WUXI HY MACHINERY CO., LTD.

Applications:
This is Fully Automatic Packing Palletizing Line, Fully Automatic Packing Line, Fully Automatic Bagging Line, Fully Automatic filling and packaging line, automated bagging system produced by WUXI HY MACHINERY CO., LTD.This fully automatic packing line includes automatic bags placing feeder, auto materials feeding filling,auto weighing bagging, auto bags guide-in and bag top sealing, auto bags transportation conveyor, auto empty pallet feed-in before robot, auto robot palletizing with pallet dispenser for stacking on pallet, loaded pallet conveyor, auto pallet wrapping, etc.. It’s fully automatic finished and continuously working.

And it’s selectable to install the bag overturning, reshaping, flattener, weight re-checker, metal detector, rejection system, printer, palletizer, etc. to make a complete automatic bagging production line produced byWuxi HY Machinery Co., Ltd.

Working Process
Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing, heating or welding) → next process

Feature
Your benefits due to our experience:
1) Clean bag filling
Due to product-specially chosen filling spout with all-side clamping jaws
2) Space saving
Due to compact machine design
3) Cost saving
Due to stable operation and low maintenance costs
4) Easy handling
Due to easy and intuitive operational menu with “weight input” “weight display” “time display”
Due to clear operator guidance, easy cleaning and maintenance
5) High weight accuracy: ±0.2%FS
Due to coarse and fine flow filling controlled by one frequency-change screw’s (auger’s) rotating speed
Due to the use of the Touch screen or METTLER TOLEDO weighing controller and high reliable load cell sensors
6) Good product protection
Due to project-specially selected bag closure, e.g. sewing, welding or hot-melt sealing

Technical Parameter

• Model: LCS-HYG series
• Weighting Range: 1~100kg, customized
• Accuracy: within ±0.2%
• Capacity: 180-220bags/hour, 300-360bags/hour, 500-700bags/hour, 700-900bags/hour
• Power Supply: AC110-240V/220-600V, 50/60Hz, 1/3P, customized made as per local electrical system
• Power: ~1.5 kW
• Air Resource: 0.4～0.6 Mpa ( 0.2m3/min air consumption)
• Bag Belt Conveyor Dimension: 3000*400mm, customized design.
