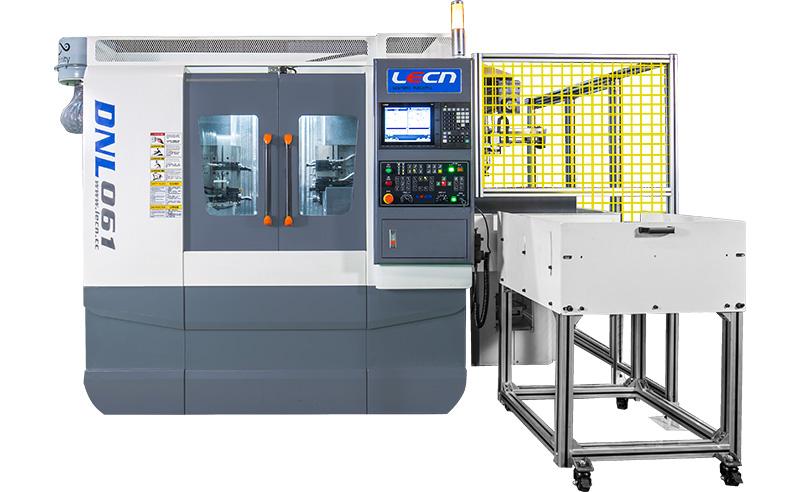

Double Head CNC Lathe DNL061/DNL062
Double Head CNC Lathe Description
Both ends of the one clamping are processed at the same time or independently, the compact vertical cutter double head CNC lathe with 100-480 mm turning length is suitable for turning, drilling, tapping and boring of precision shaft parts. Compared with traditional CNC lathe, one is equivalent to the machining efficiency of two machines, and the coaxiality can reach μ level. High precision, high efficiency, it can carry with truss or joint robot and automatical line.
Technical Parameters
|
ITEM |
DNL061 |
DNL062 |
|
Max Body Rotate Diameter, mm |
Ø200 |
Ø200 |
|
Clamping Diameter Scope, mm |
Ø15-Ø50 |
Ø15-Ø50 |
|
Turning Length Scope, mm |
100-300 |
300-480 |
|
Spindle Clamp Diameter, mm |
Ø50 |
Ø50 |
|
X/Z Travel , mm |
280/180 |
280/180 |
|
X/Z Fast Speed, m/min |
18/24 |
18/24 |
|
Fool Type |
cutter |
cutter |
