Product Description

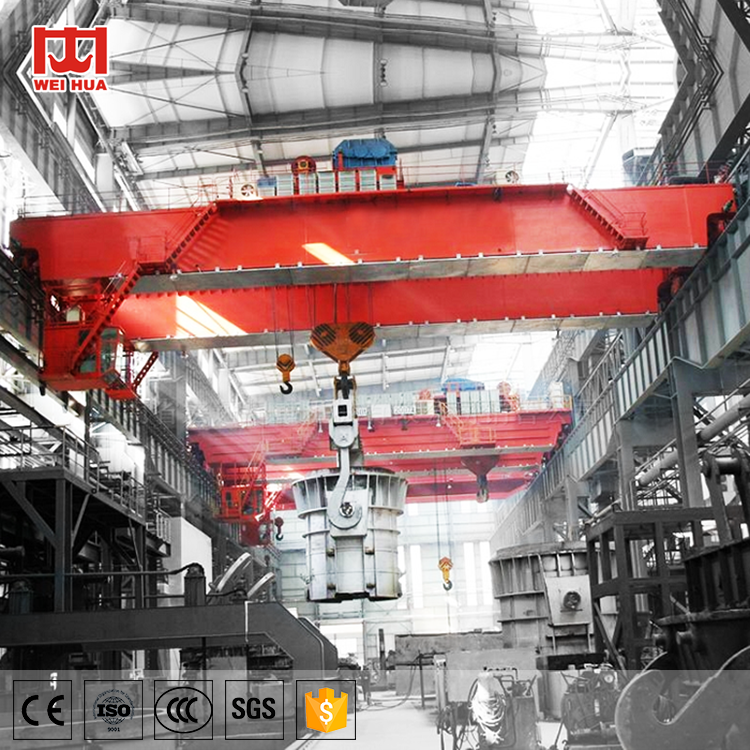

QDY type double beam overhead foundry crane is one of the main equipment in the continuous casting technology of steel manufacturing. It is mainly used for smelting metal transporter, casting and hot metal charging.
QDY type double beam overhead foundry crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.
QDY type double beam overhead foundry crane travelling mechanism and main electric equipment are installed in the boxed girder, which employs rock wool for heat insulation, and has an air cooler inside. To reduce heat radiation of molten structural members, a thermal baffle is set along the span direction at the bottom of the girder
Contact us for more information !
Contact me for more parameters and quotation !
product detail picture:
Contact me for more parameters and quotation !
Environmental conditions:
1.The power of crane is three—phase AC;rated frequency is 50HZ;rated voltage is 380V;
2.The temperature of working environment is-10~+60℃;
3.The relative humidity is no more than 50% when the temperature is+40℃;
4.If the requirements are more than above-mentioned,it shall carry out the requirements in the purchase contract as the user asks.
Features:
1. Heavy duty double beam overhead steel factory crane .
2. Special used in steel plant.
3. Smooth starting and stopping.
4. Safe and reliable traveling, long life.
5. Heat-resistant electrical equipment and wiring.
6. Crane drive: IP54 or IP44, level F insulation
7. High quality with competitive price.
Specific details of casting and metallurgy overhead crane
Please contact me for customized parameters !
|
tem |
QDY |
YZ |
|
Loading capacity |
5 ~ 75t |
75 ~ 350t |
|
Lifting height |
customized |
|
|
Lifting speed |
Varies with lifting capacity |
|
|
Span |
10.5 ~ 31.5 m |
15 ~ 38 m |
|
Lifting mechanism |
Winch trolley |
|
|
Working class |
A7/A8 |
|
|
Working temperature |
-20 ~ +60 ℃ |
|
|
Power supply |
AC-3Phase-220//230380/400/415/440V-50/60Hz |
|
|
Control voltage |
DC-36 / 48V |
|
|
Motor protection class |
IP54 IP55 IP65 |
|
|
Control way |
Cabin, wireless remote, pendant push button |
|
|
Safety device |
Buffer,current overload protection,overload device,power failure protection |
|
|
Application area |
Factory,workshop,warehouse,power station,logstic,etc. |
|
|
Painting color |
Yellow,Red or Customzied |
|
Relevant product pictures and descriptions
QDY Double Girder Cast Foundry Crane
|
Capacity(t) |
Lifting Height(m) |
Speed (m/min) |
Total Power (kw) |
Recomend Rail (kg/m) |
||||
|
Main hook |
Aux hook |
Main hook |
Main Hook |
Aux. hook |
Trolley |
Crane |
||
|
16/3.2 |
12 |
15 |
2.5~9 |
9 |
20~38 |
30~70 |
19.4~49.5 |
52.8 |
|
20/5 |
27.5~62.5 |
|||||||
|
25/5 |
28.1~72.9 |
|||||||
|
32/5 |
15 |
17 |
30~80 |
29.7~110 |
63.69 |
|||
|
40/5 |
2~9 |
30~70 |
30.5~111.5 |
|||||
|
50/10 |
2~7 |
9 |
46.4~130 |
|||||
|
63/10 |
21 |
23 |
1.5~7 |
9 |
46.4~157 |
|||
|
75/20 |
26 |
28 |
1.7~7 |
7 |
18~30 |
81~184 |
88.96 |
|
YZS Four Girder Cast Foundry Crane
Contact me for more parameters and quotation !
Relevant product pictures and descriptions
What's your phone number and email address?We'll give you our best offer !
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Quality Control
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. WEIHUA has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. WEIHUA has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Company Information
From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, ¥100,000 investment in the workshops to the current development of The employees is more than 6,800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached ¥10,000,000 in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
What's your phone number and email address?We'll give you our best offer !
Packaging&Delivery
FAQ
Q. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
