| Model: | R1530P |
|---|---|
| Brand: | gildemeister |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | portable plasma cut |
| Price: |
US $1650
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:11 Nov, 2021 |

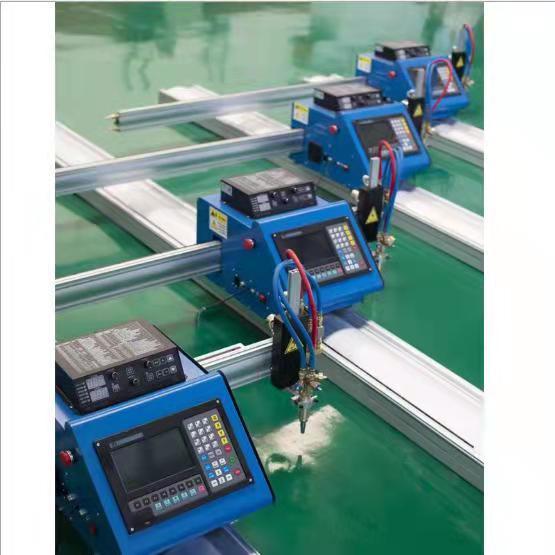

Portable plasma cutting machine

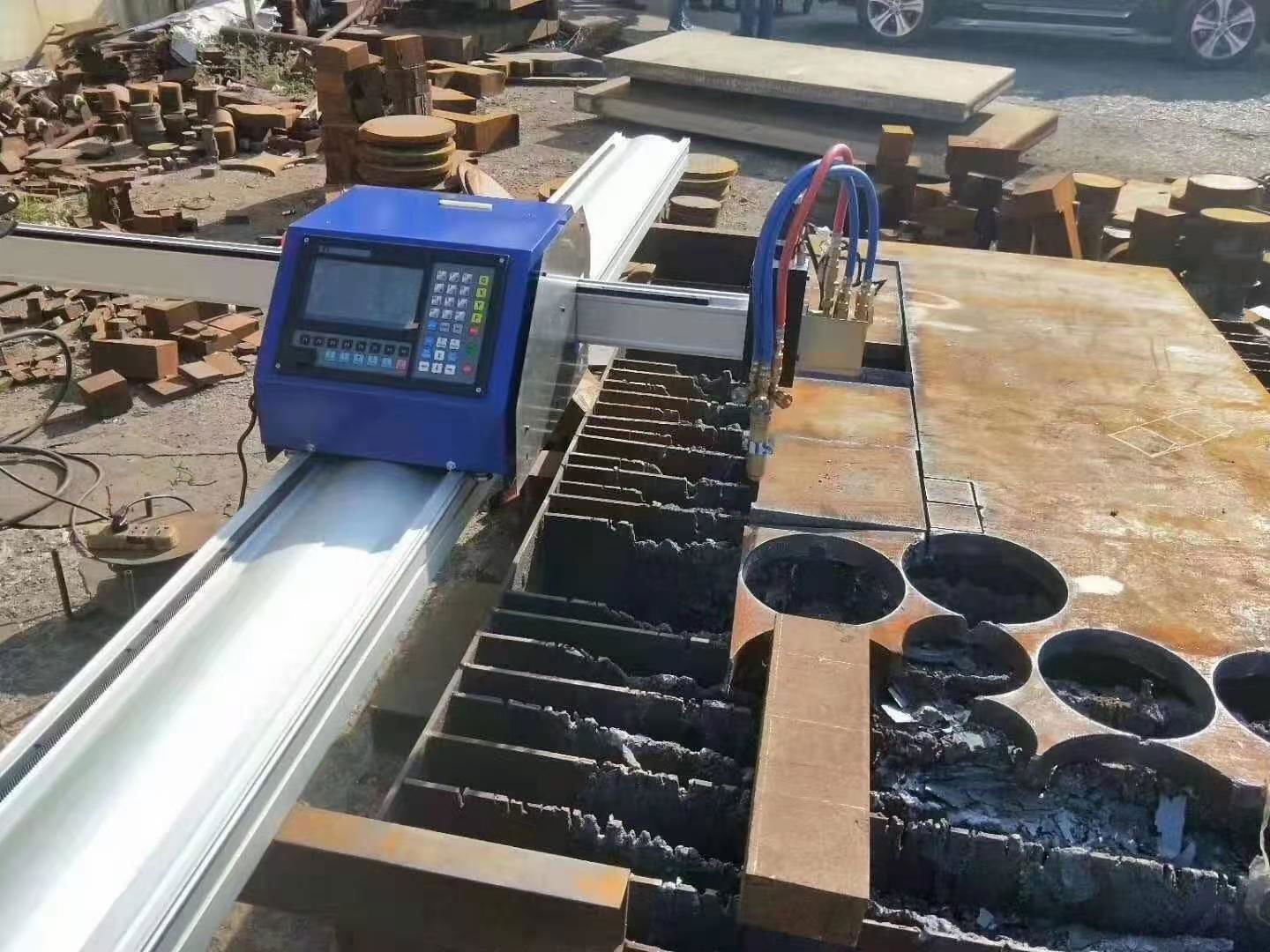

Portable plasma cutting machine is an economy CNC plasma cutting machine which is used for metal sheet cutting work. Because this type of machine choose Cast Aluminium rail to carry the cutting torch move around,it is very easy to move.This model of R1530P has a valid cutting size 1500X3000mm which could met most customer's working requirement. Meanwhile, the plasma generator could be 60-200A to different chickness metal sheet. The adding of flame cutting head allows even thicker metal sheet cutting.For the occision which need bigger size cutting, we could customize accordingly.
Product Specification
|
Product name |
Portable plasma cutting machine |
|
Cutting size |
1000X2000mm/1500X3000mm |
|
Structure |
Cast Aluminium |
|
Control system |
Fangling |
|
Plasma generator |
60-200A |
|
Flame cutting torch |
Added |
|
Torch Height control |
Chinese |
|
Traveling speed |
0-5000mm/min |
|
Cutting speed |
0-3000mm/min |
|
Plasma generator |
Chinese LGK |
|
Voltage |
AC 380V/50HZ |
|
Weight |
105Kg |
|
Package |
Plywood |
Features:
1 7 inches LED screen with common used shape drawing saved in the system, helpful to do different size cutting job.
2 High speed stepper motors, cast aluminium structure, light duty and easy to place on top of steel for cutting.
3 Flame cutting head and plasma cutting head amounted to cut different thickness metal sheet.
4 Porfessional cutting software which could support 19 languages, suitable for different level operators to use.
5 Torch height control device added, no problem to do cutting for not so very flat cutting jobs.
Applications:

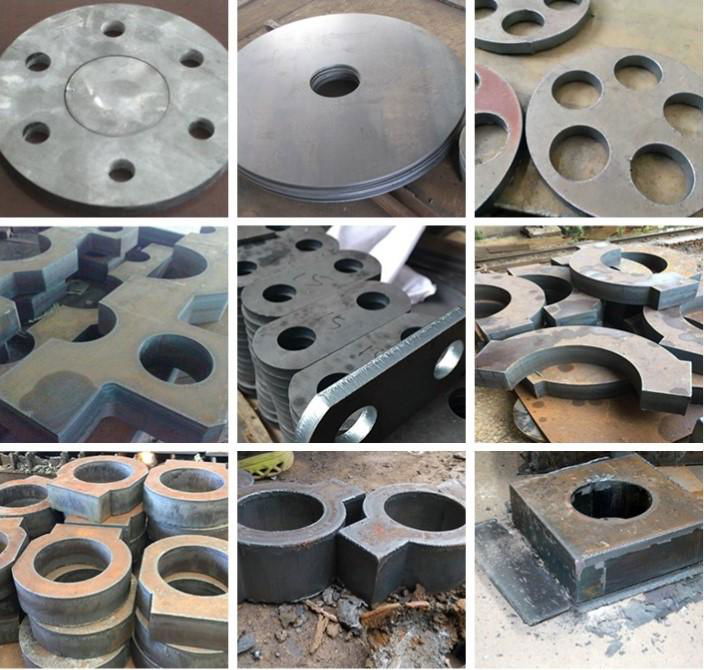

Gildemeister Portable plasma cutting machine could used to cut mild steel, high carbon steel, stainless steel, aluminum,copper and other non-ferrous metal, etc. Machin is widely applied in industries such as automobile, shipbuilding, machine tools,pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries.
