| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Magnetic Materials |
| Label: | magnet factory , magnets supplier , magnets company |
| Price: |
US $10
/ kgs
|
| Min. Order: | 1 kgs |
| Live Chat: | Last Online:08 Sep, 2021 |
The company's magnetic assemblies products cover a wide range of types & sizes, including neodymium cup(pot) magnets, ferrite(ceramic) cup/pot magnets,plastic&rubber coated holding magnets，fishing magnets, all kinds of hook magnets, channel magnets, different types of office magnets and so on. In addition to the regular sizes for magnet assemblies, the magnets company completes the processing and assembling of many customized magnets assemblies products every year.

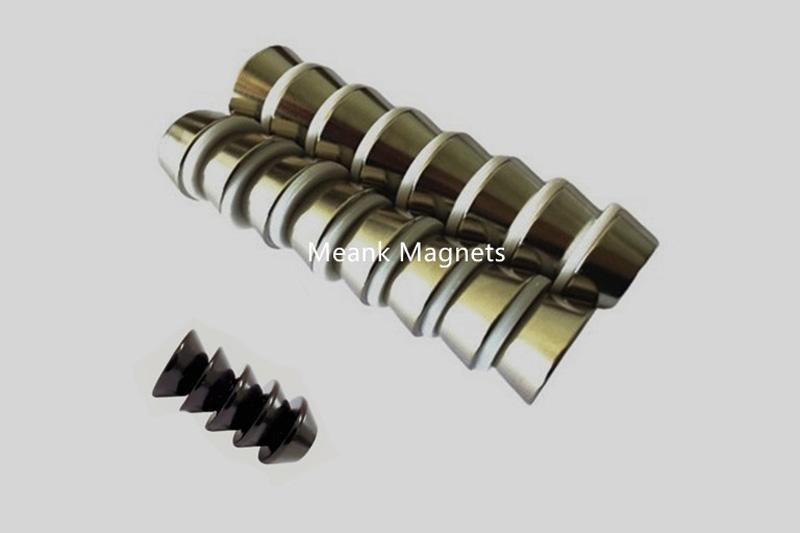

The strong neodymium(NdFeB) cone magnets are special disc or cylinder magnets that the two ends have not the same size. One rare earth strong neodymium cone shaped magnets is expressed by bottom diameter(D1)x top diameter(D2) x thickness(T).
Surface Treatment is Needed for Rare Earth Strong Cone Shape Neodymium Magnets
Strong neodymium(NdFeB) cone magnets are not rust-resistant and easy to corrode, and its surface need to be coated, generally including zinc plating, nickel, environmental protection zinc, environmental protection nickel, nickel copper nickel, environmental protection nickel copper nickel,epoxy coating etc.
|
Surface |
Coating |
Thickness (Microns) |
Color |
Resistance |
|
Passivation |
|
1 |
Silver Grey |
Temporary Protection |
|
Nickel |
Ni+Ni |
10-20 |
Bright Silver |
Excellent Against Humidity |
|
Ni+Cu+Ni |
Good Against Salt Spray |
|||
|
Zinc |
Zn |
8-20 |
Bright Blue |
Excellent Against Salt Spray |
|
C-Zn |
Shinny Color |
Superior Against Humidity |
||
|
Tin |
Ni+Cu+Sn |
15-20 |
Silver |
Superior Against Humidity |
|
Silver |
Ni+Cu+Ag |
10-20 |
Silver |
Superior Against Humidity |
|
Gold |
Ni+Cu+Au |
10-20 |
Gold |
Temporary Protection |
|
Copper |
Ni+Cu |
10-20 |
Gold |
Excellent Against Humidity&Salt Spray |
|
Epoxy |
Epoxy |
15-25 |
Black,Red,Grey |
Excellent Against Humidity,Salt Spray,Superior Against Solvents,Gases, Fungi and Bacteria,FDA Approved |
|
Ni+Cu+Epoxy |
Excellent Against Humidity |
|||
|
Zn+Epoxy |
|
|||
|
Parylene |
Parylene |
5-20 |
Grey |
Excellent Against Humidity |
|
Chemical |
Ni |
10-20 |
Silver Grey |
Excellent Against Humidity |
Magnetization Direction of Powerful & Strong NdFeB Cone Magnets
The magnetized direction of powerful neodymium(NdFeB) cone magnets generally divided into axially magnetized and diameterly magnetization, which is determined according to the required working face.Please tell us which end is N-pole when you order cone shape strong neodymium magnets from us.
Custom Rare Earth Neodymium(NdFeB) Cone Magnets
Neodymium cone magnets are non-standard products,sintered Nd-Fe-B material has good machinability and can be customized into different sizes of neodymium(NdFeB) cone magnets,mould is not necessary for customizing powerful neodymium cone magnets.We can make machine cone shape neodymium magnets for any quantity from tiny size to large size.
Maximum Working Temperature for Various Grade of Strong Neodymium Cone Magnets
|
Neodymium Material Grade |
Maximum Working Temp. |
Curie Temp. |
|
N（N35,N38,N40,N42,N45,N48,N50,N52） |
176°F (80°C) |
590°F (310°C) |
|
N-M（N35M,N38M,N40M,N42M,N45M,N48M,N50M,N52M） |
212°F (100°C) |
644°F (340°C) |
|
N-H（N35H,N38H,N40H,N42H,N45H,N48H,N50H） |
248°F (120°C) |
644°F (340°C) |
|
N-SH（N35SH,N38SH,N40H,N42SH,N45SH,N48SH） |
302°F (150°C) |
644°F (340°C) |
|
N-UH（N28UH,N30UH,N33UH,N35UH,N38UH,N40UH,N42UH） |
356°F (180°C) |
662°F (350°C) |
|
N-EH（N28EH,N30EH,N33EH,N35EH,N38EH,N40EH） |
392°F (200°C) |
662°F (350°C) |
|
N-AH（N28AH,N33AH,N35AH,N38AH） |
428°F (230°C) |
662°F (350°C) |
