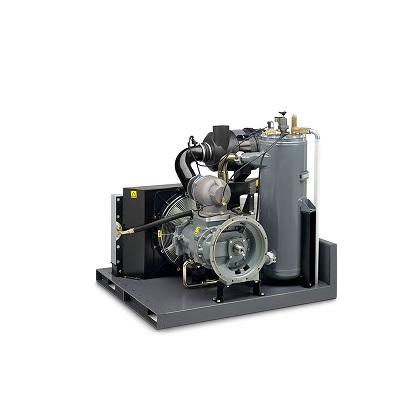

Power take-over (PTO) compressors
Product Description
TEWATT Power take-over compressors(hereinafter PTO compressors) focused on providing an economic, efficient way to produce compressed air while utilizing your existing power source. The PTO compressors is the ideal air companion where the power source is an engine, electric motor, hydraulic motor, PTO-drive or any other source. PTO compressors have become popular customized applications around the world. Including manufacturers of packaged air compressors, drill rigs, trucks & all-terrain vehicles. They are designed compactly with the smallest possible footprint, they are designed to offer maximum flexibility in use – they are designed to fit your needs exactly.
https://www.tewatt.com/product-list-drill-modules.html
Main Features:
Integrated gearbox drive
Simple service and maintenance
Integrated air receiver tank and pressure vessel
6 complementary models
5-30 bar
Skid mounted (with or without canopy) and vessel options available
Flows up to 36 m3/min
Pressure and flow settings regulated to the gear ratio rpm and input power
Small footprint to enable easy integration with your existing equipment
Legendary air element with worldwide sales and service support
Technical data
|
Compressor |
|
TWT330-12 |
TWT520-14 |
TWT1000-25 |
TWT1000-30 |
TWT1270-25 |
TWT1250-30 |
|
Required input power |
Kw |
78 |
147 |
302 |
315 |
388 |
415 |
|
Maximum free air delivery |
m3/min |
9,3 |
14,7 |
28 |
28 |
36 |
35 |
|
cfm |
330 |
520 |
1000 |
1000 |
1270 |
1250 |
|
|
Maximum effective working pressure |
bar |
12 |
14 |
25 |
30 |
25 |
30 |
|
psi |
175 |
203 |
362 |
435 |
362 |
435 |
|
|
Maximum allowable inlet temperature |
°C |
50 |
50 |
50 |
50 |
50 |
50 |
|
Minimum allowable inlet temperature |
°C |
-25 |
-25 |
-25 |
-25 |
-25 |
-25 |
|
Compressed air temperature at minimum pressure valve (approx.) |
°C |
90 |
90 |
100 |
100 |
100 |
100 |
|
Design data |
|||||||
|
Number of compression stages |
|
1 |
1 |
2 |
2 |
2 |
2 |
|
Minimum allowable male rotor speed |
rpm |
2000 |
3000 |
2000 |
2000 |
2000 |
2000 |
|
Maximum allowable male rotor speed |
rpm |
4930 |
5000 |
4000 |
4000 |
4000 |
4000 |
|
Oil capacity |
l |
28 |
50 |
47 |
47 |
47 |
47 |
|
Net capacity of air receiver |
l |
42 |
91 |
143 |
143 |
143 |
143 |
|
Vessel |
|
Internal |
Internal |
External |
External |
External |
External |
|
Weight and dimensions |
|||||||
|
Length |
mm |
990 |
1250 |
1590 |
1590 |
1590 |
1590 |
|
Width |
mm |
994 |
1430 |
1700 |
1700 |
1700 |
1700 |
|
Height |
mm |
1198 |
1422 |
1365 |
1365 |
1365 |
1365 |
|
Weight with canopy |
kg |
500 |
840 |
1350 |
1380 |
1400 |
1430 |
|
Weight without canopy |
kg |
420 |
735 |
1210 |
1240 |
1260 |
1230 |
Note: Specifiations are subject to change without further notice.
