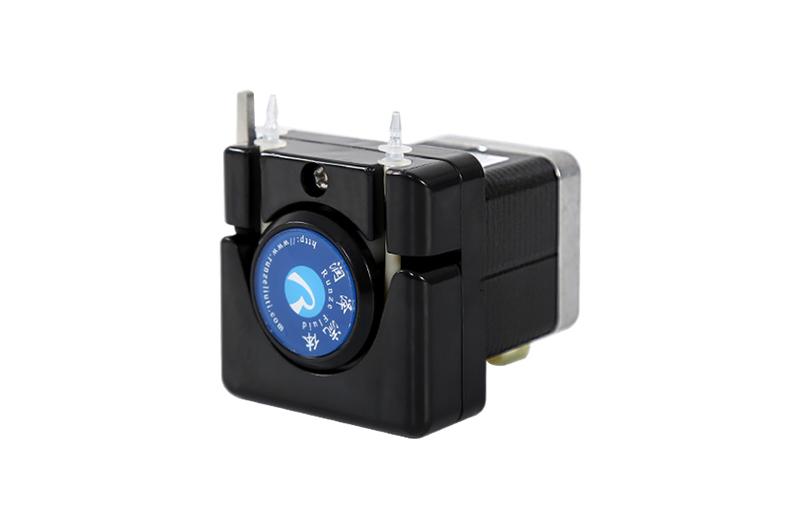

Small oem peristaltic pumps BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.
Specification ofMini Peristaltic Pump
|
Model No. |
BJ-RZ1030-4 |
|
Pump Roller |
POM 4 rollers (low pulse) |
|
Pump Head Material |
ABS engineering plastic |
|
Motor type |
NMB 1.8° 42 stepper motor |
|
Input voltage |
24V DC |
|
Rated Current |
1.1A |
|
Rated Power |
26.4W |
|
Motor Speed |
0-400rpm |
|
Flow Range |
0-170ml/min |
|
Tubing Size |
ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
|
Tubing Life |
Silicone≥200H BPT Rubber≥1000H Viton≥1000H |
|
Pressure Rating |
Up to 2 bar（30psi） |
|
Working Environment |
0-40℃, ≤80％ non-condensing |
|
Max DB |
70db |
|
Suction |
About 5 meters |
|
Head |
About 8 meters |
|
Dimension (L*W*H) |
57*57*73.5mm |
|
Net Weight |
450g |
Fitting Peristaltic Tubing of Mini Peristaltic Pump
|
Picture |
Material |
Features |
Service Life |
|
|
Silicone |
Food grade, High flexibility Temp. range -4℃ - +180℃ For non-corrosive liquid |
≥200h |
|
|
Pharmed BPT |
Saint-Gobain, FDA standard Temp. range -51℃- +132℃ Anti weak acid and alkali |
≥1000h |
|
|
Viton |
MasterFlex, FDA Standard Temp. range -20℃- +260℃ Anti strong acid and alkali |
≥1000h |
1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks
2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing
3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer
Flow Rate for Reference of Mini Peristaltic Pump
|
Tubing Type |
Tube Size (ID*WT: mm) |
Speed Range (rpm) |
Flow Range (ml/min) |
|
BPT Rubber Tube |
0.64*0.8 |
0-400 |
0-13 |
|
1.14*0.8 |
0-33 |
||
|
1.52*0.8 |
0-59 |
||
|
2.06*0.8 |
0-102 |
||
|
2.54*0.8 |
0-128 |
||
|
2.79*0.8 |
0-147 |
||
|
Silicone Tube |
1*1 |
0-26 |
|
|
2*1 |
0-106 |
||
|
3*1 |
0-170 |
* Flow rate measured by pumping pure water under room temperature and pressure, actual working flow rate maybe vary from different medium and working environment
Nanjing Runze Fluid Control Equipment Co., Ltd, founded in 2014, was mini peristaltic pump suppliers engaged in R&D, production, marketing and service for microfluidic components including peristaltic pump, syringe pump, piston pump, food and beverage.
