| Model: | JLY-HP-651555 |
|---|---|
| Brand: | JINLAIYUAN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | - |
| Price: |
US $12500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:27 Aug, 2021 |

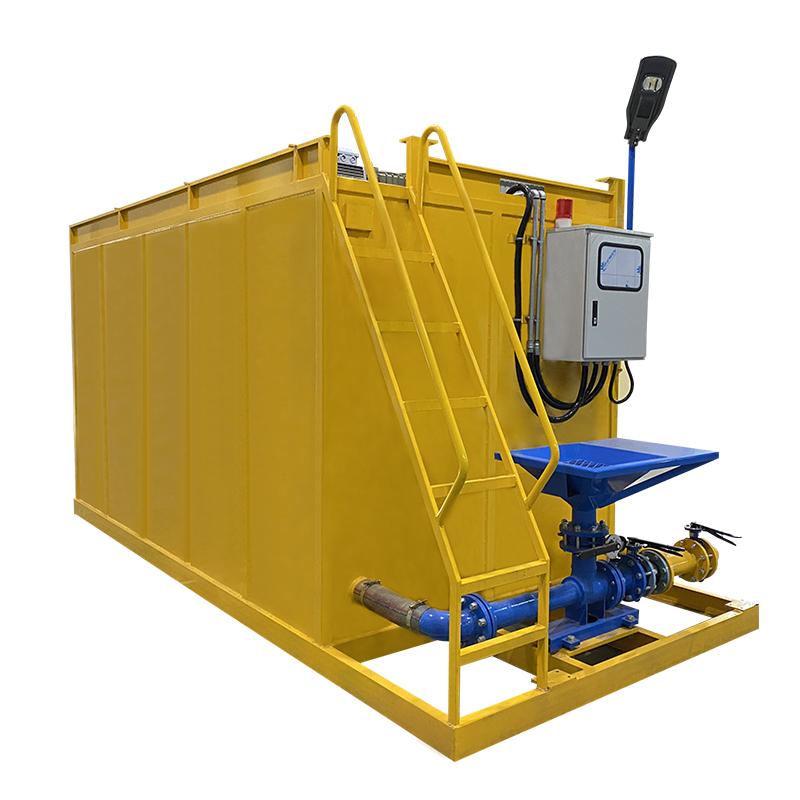

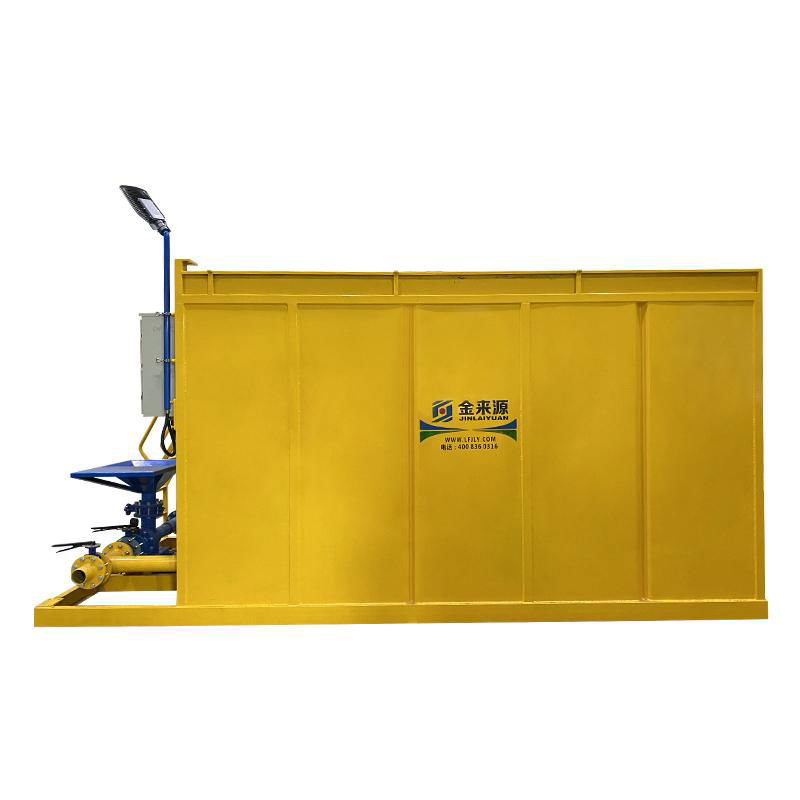

Mud Mixing System with Agitator
| Serial No. | Name | Parameter | Note |
| 1 | Gear Reducer | 5.5kw x 2 group | Roation Rate 60r/Min.;Double Layer Blade;With Centralizer |
| 2 | Jet System | 65m³/Hour | Ton Package Hopper(Selective Breeding) |
| 3 | Jet Pump | 18.5kw | Full-alloy pump |
| 4 | Electric Control | Outdoor | Protection when overloading, Votage high or Low, Less phase. |
| 5 | Top Board | Steel Grating Board | 5mm |
| 6 | Side Borard | Corrugated Sheet | 6mm |
| 7 | Bottom Board | 120 Structional sheet +6mm Bottom board | / |
| 8 | Protective Fence | Foldable | Match |
| 9 | Ton Package Hopper | / | Selective +12000 |
| 10 | Volume | 15m³ | / |
| 11 | Water hole | 4" | Inverted teeth of Elbow |
| 12 | Mud Pump Interface | 5" | Inverted Teeth of Butterfly Valve(May adjust it according customer's request |
| 13 | Sand Cleaning Gate | 10" | Disassemble Blind Plate |
| 14 | Sewage Hole | 4" | Inverted Teeth Butterfly Valve |
| 15 | Net. Weight | 3500kg | / |
| 16 | Overall Size | 4700X2000X2450mm | / |
