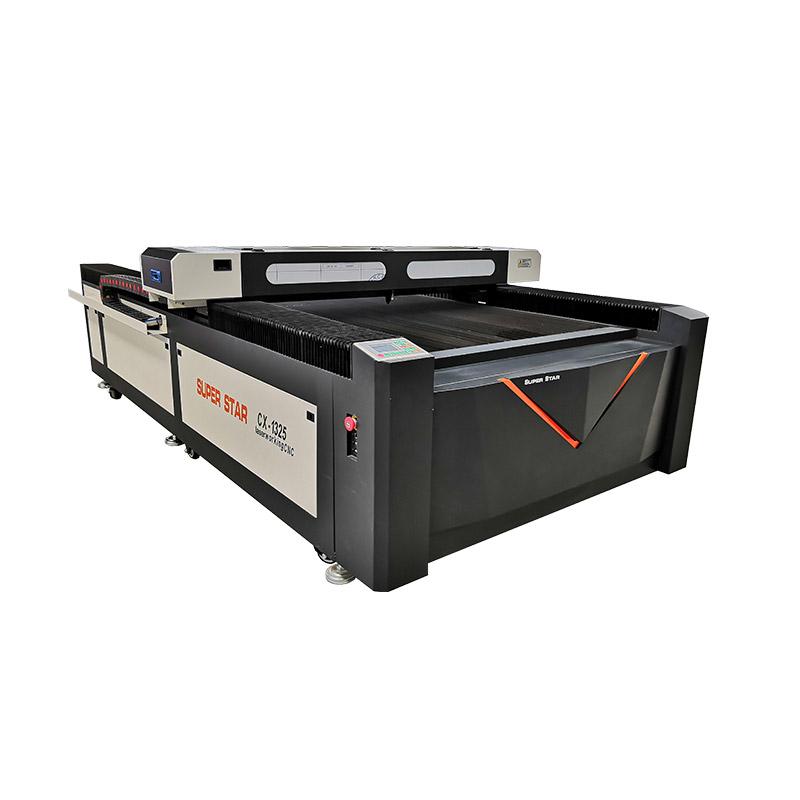

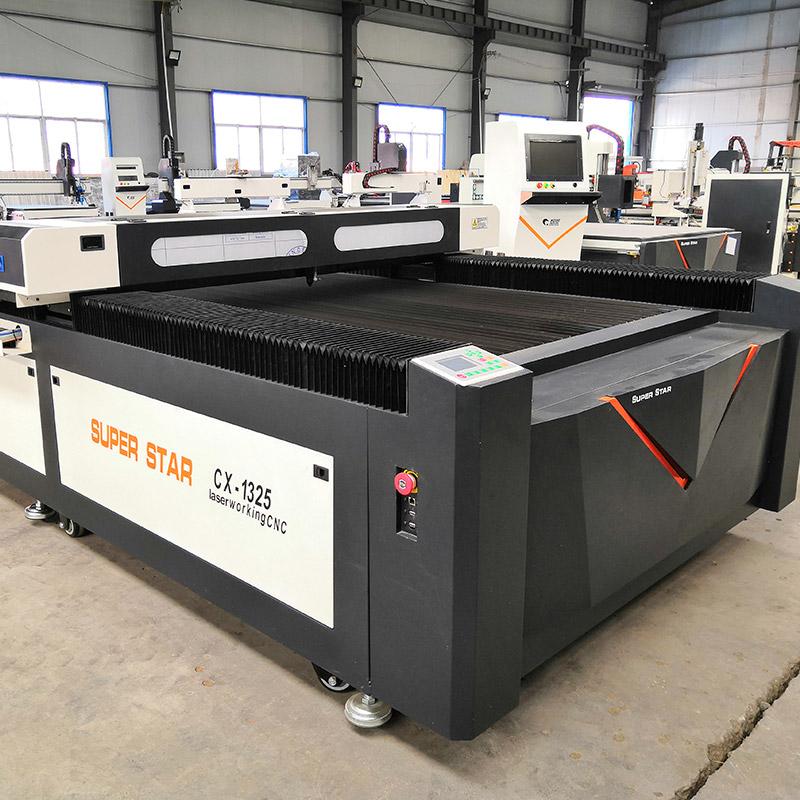

1325 Laser Cutting Machine Advertising Engraving Machine laser cutting machine manufacturers in china
1325 Smart Laser Cutting Equipment is a high-power multi-purpose laser cutting machine. The flat cutting part adopts the gantry structure. With a unique deceleration design, the mechanical system is stable, the structure is stable, the rigidity is good, and the speed is high. Choose high-speed motor and driver, 24 hours long time running without losing step.
Advantages
1. Touch screen control system, USB offline use, more convenient to use; add break point continuation function.
2. The software is compatible with CorelDraw, AutoCAD, Photoshop and all kinds of graphic processing software. Directly original output function, none error.
3. The edge of cutting is smooth and there is no sawtooth .The software adopts continuous curve method to get faster cutting speed.
Specification of Advertising Laser Machine
|
Laser type |
Sealed CO2 laser tube |
|
Laser power |
60W |
|
Cutting area |
1300*2500mm |
|
Resetting position accuracy |
+/-0.05mm |
|
Working voltage |
AC110-220V +/-10%.50-60HZ |
|
Power |
1500W max |
|
Operating temperature |
0-45 degree |
|
Operating humidity |
5-95% |
|
Minimum shaping character |
English 1*1mm |
|
Graphic format supported |
BMP, PLT, DST, DXF, and AI |
|
Driving system |
Leadshine stepper Driving |
|
Cooling mode |
Water-cooling and protection system |
|
Auxiliary equipment |
Exhaust-fan, air-exhaust pipe, Air compressor |
|
Controlling system |
DSP control system—MPC6515 |
|
Compatible software |
Coreldraw auto CAD photoshop |
|
Whole machine size |
3000*1600*990mm |
|
Machine Weight |
600Kgs |
Applicable Industry
1325 Laser Cutting Machine mainly used for advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry.
Applicable material: wood, timber, plywood, MDF, acrylic, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Laser Cutting Machine Manufacturers In China sells competitive prices, high-quality laser engraving machines, desktop fiber laser engraving machines. Welcome to browse our website and contact us.
