Application:

It has been recognized that the life of a transformer can be extended with regular purification of electrical insulating fluids within the transformer. Moisture, gaseous and solid contaminants can seriously affect the function of electrical insulating fluids as a coolant and insulator.

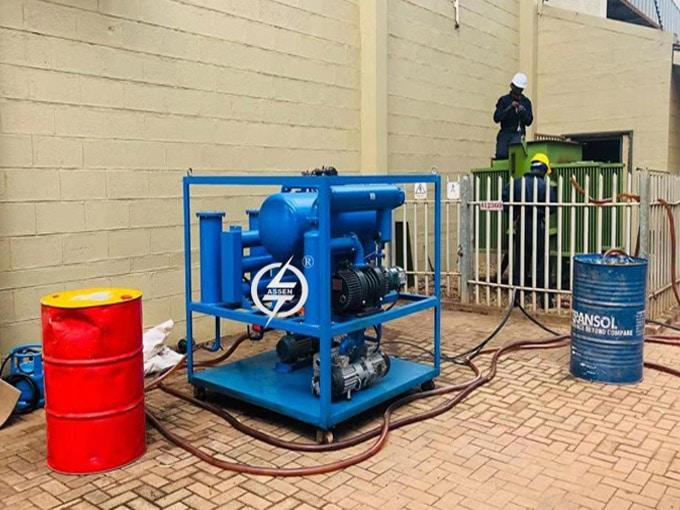

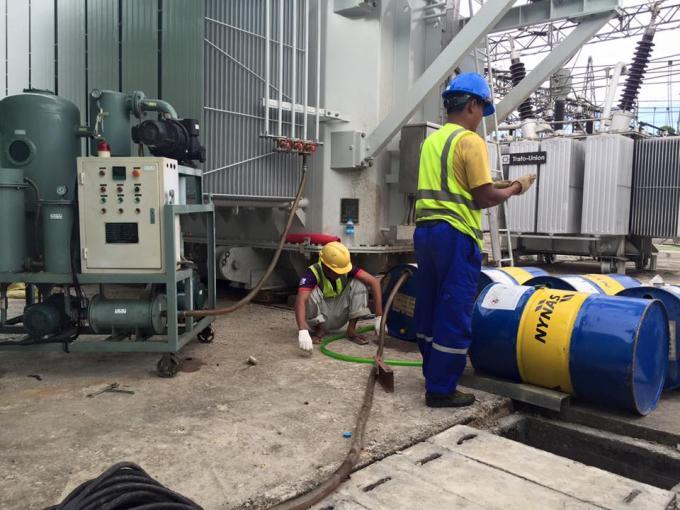

This specification describes the equipment supplied by ASSEN for the processing (degasification, dehydration, filtration and optional de-acidification) of transformer insulating oil. The ZY Purifiers are designed for processing the transformer oil in workshops or in the field, in storage tanks, directly in transformers or within Tap Changers/Circuit Breakers. Purification of oil in transformers can be carried out off-load or on-load depending on customer's preference.

Features

• Ideal for insulating oil clean up and transfer
• Eight models are available to accommodate various flow rates
• Continuously removes free water down to 5 ppm or less
• Fluid cleanliness grade (NAS) to 6 or better
• Dual water and particulate removal
• Improve oil dielectric values
• Advanced demulsification technology
• Coalescence-separation technology
• Duplex 3D evaporation technology
• Double-infrared fluid level controller
• A trinity of interlocked preventive device
• Carbon fiber infrared heating system
• Automatic back-flushing system
• Unique H.P.M high molecule absorption material
• Mobile equipment for outdoor use
• Explosion-proof type available
• On-line vacuum oiling and dehydrating feasible

After treatment

oil quality guarantees to the following specifications.
Water: ≤ 10PPM
Gas: ≤ 0.5%
Dielectric Strength: ≥60KV
Particle size: ≤5μm
