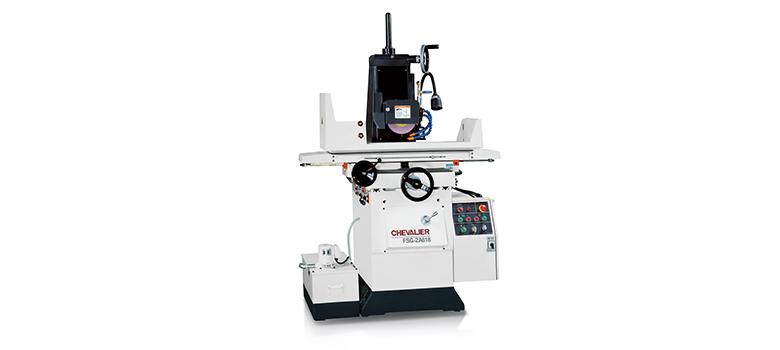

Detailed description: Semi-automatic surface grinder (2A series, two-axis automatic)
FSG-2A618 / 2A818 / 2A1224
This is for user-friendly operation, specially designed with a tool box (618M).
Based on safety considerations, an automatic power-off device that interlocks with the electrical box door is designed.
The ultra-high 18" (450mm) vertical stroke provides more grinding space.
The left and right stroke setting has a buffer device to avoid improper operation impact (618M).
According to the mechanical bending action and movement characteristics, the front and rear double V guide rails are designed with the best support distance.
The main castings are made of high-strength Meehanite cast iron, which has been annealed by relaxation force to eliminate internal stress and have super rigidity.

Strong and excellent stability, it is an indispensable grinding tool for precision flat and shaped grinding.
The machine and electrical parts of this model are guaranteed for one year under normal conditions of use.
2A (two-axis automatic) series
X-axis hydraulic system drive
Z axis adopts "V" track and motor drive
Table size (width x length): up to 300 x 600mm FSG-618M SERIES
M series
Workbench ball slide
Z axis is double "V" + Turcite-B
Table size (width x length): up to 150 x 460mm
working lamp
Diamond pen holder
Wheel hub
Punch Former
magnet
Rotary magnet
Electromagnet
Rotary electromagnet
Precision vice
Parallel dresser (manual)
Orbital balance platform
Wheel balance platform
Vacuum cleaner
vacuum cleaner
Electromagnetic water filter
Dust-absorbing electromagnetic dual-water machine
Manual paper belt type water machine
Double-layer water filter
Single water machine
Waterproof cover, nozzle
Solenoid controller
Bilateral movable cover
