·Power supply: DC10--30V,

·Stand-by current for control board: 40mA
·Fingerprint capacity: 200

·Size: 36.4*70mm

·Relay Function: Normally Open or 1-20 second

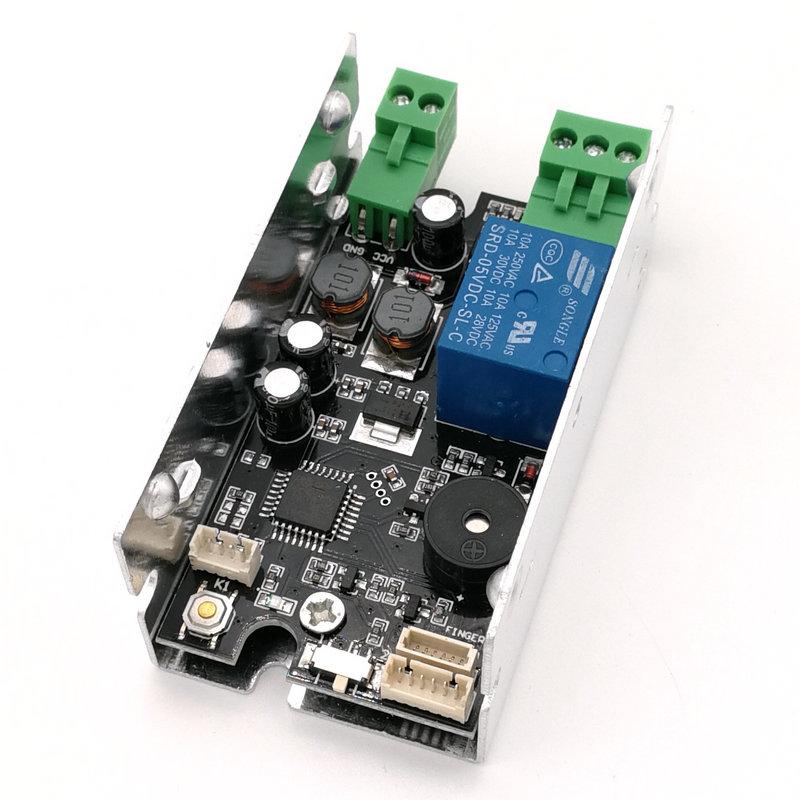

K215-V1.3 Circuit board diagram

K215-V1.3 Reference Connection Diagram:

1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.

2. When back to factory default, press SET button until hear “Di” and music,means initialization operation successful.

3. Mode Selection Usage: when chose 2, operating time of the relay is1s-20safter pass fingerprint,can adjust by knob. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.

Note:

●In factory status, any fingerprint can pass, after register fingerprints, this function is invalid;

K215-V1.3 has a wide range of use, which can be used in automobile control, access control and other occasions.

K215-V1.3 can be connected withR301T,R302,R303T,R307,R502,R502-A,R502-AW,R503fingerprint module.

·Provide User Manual

You can dowload the K215-V1.3 user manual from this website link:

https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0

K215-V1.2 fingerprint control board connect with R501,R502,R502-A,R503 video on Youtube:https://youtu.be/1Zk2bjRdRpg

K215-V1.3 Circuit board diagram

K215-V1.3 can be used together with R503 capacitive fingerprint module
