| Model: | SC APC/SC UPC |
|---|---|
| Brand: | ZHIYI |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment |
| Label: | Fiber Optic Connecto , LC APC LC UPC , SC APC SC UPC |
| Price: |
US $1
/ pc
|
| Min. Order: | 500 pc |
| Live Chat: | Last Online:07 Jul, 2021 |

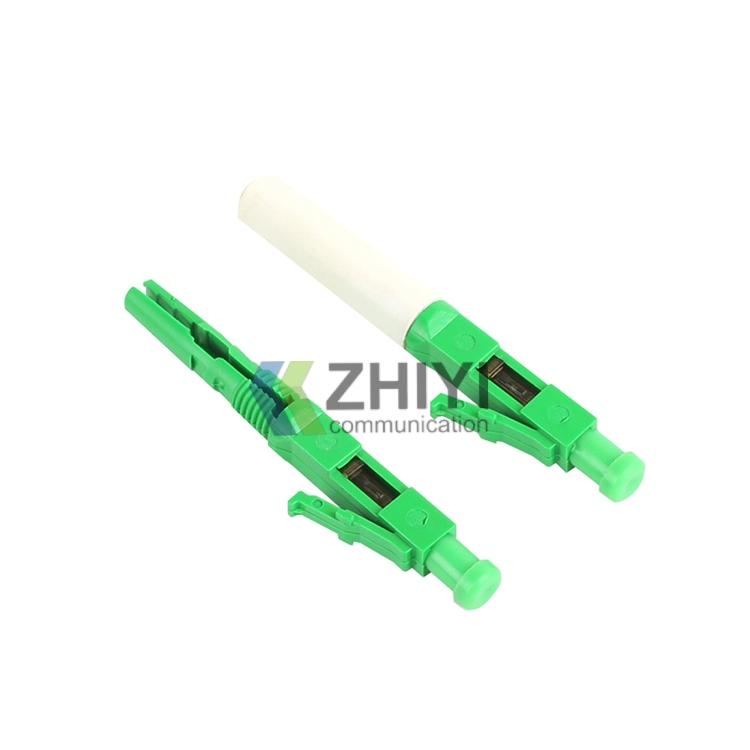

Fiber optic connector SC/APC for Jumper, patch cords , FAT distribution box in FTTX, FTTH Access
Application
- FTTX, FTTH access for indoor & Putdoor.
- Repair/replacement
- Direct to optic equipment termination.
Ordering Informations:
| Description | |
| Suitable cables | 2x3mm drop cable & Dia. 0.9/2.0/3.0mm fiber cable |
| Fiber Diameter | 125umm(625&657) |
| Fiber mode | SM&MM |
| Operation time | <30S(Nofibercut) |
| Insertion Loss | Ave.S0.25dB,Max.s0.4dB |
| Reflection LOSS | 255dB |
| Fastening strength of nakedfiber | >3N |
| OperatingTemperature | -40~+85°C |
| Dropped from a height of 6m for 3 Directions 3 times | oILs0.2dBoRLS5dB |
| Repeatability(>500times) | AILs0.2dBoRL≤5dB |
| Reusability | >5times |
| Water immersion | Yes |
| Tightening type | Screwtype |
| Size(WxHxL) | 10.3x8.8x60.5mm |
| Payment Terms: | T/T |
|---|---|
