| Model: | 1631ATC |
|---|---|
| Brand: | FORSUN CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | ATC CNC Router , ATC CNC Wood Router |
| Price: |
US $15000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:29 Oct, 2020 |
ATC CNC Wood Router with Automatic Pusher Device
ATC CNC wood router, perfect functions, vertical emptying, grooving, and material cutting are completed in one step, completely replacing the traditional sliding table saw and electronic cutting saw, getting rid of the traditional opening method relying on manual labor, and using CNC drilling when opening the material At the same time that the group is installed vertically, it can truly realize intelligent production through integration with special design software.
Features and benefits：

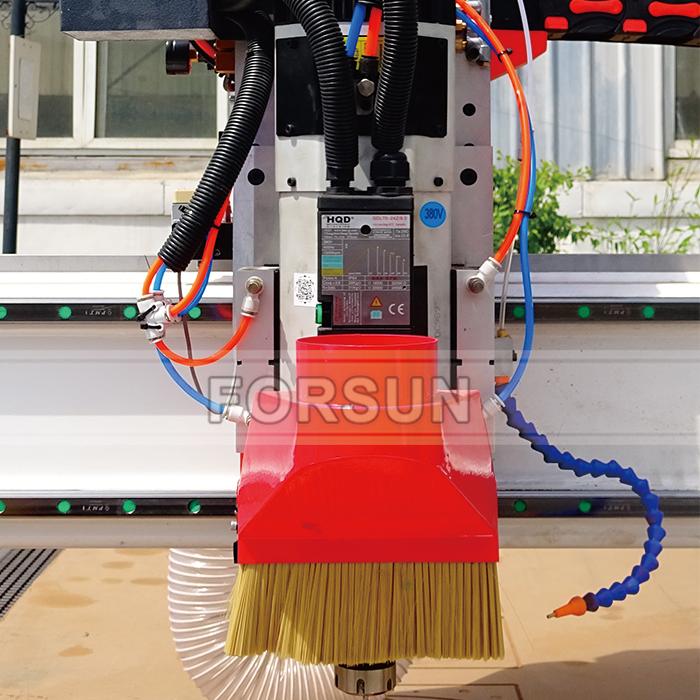

1. 9KW HQD ATC Spindle: The machine Always has a more firm and reasonable structure, It is easy to operate and durable for long-time heavy-duty work.
2. The machine adopts the combination of T-slot and vacuum table, which can strongly absorb materials in different parts and can also fix materials in different shapes, which is flexible and convenient.
3. Automatic Pusher Device: Automatically pushes the material after the whole machine is finished, and pushes the material to open the dust on the table.
4. SYNTEC 6MB Control System: This machine adopts Taiwan SYNTEC 6MB control system. With an open PLC program, customers can plan according to processing needs. Complete functions, simple cycle to realize flexible dialogue programming and simple operation. In addition, it provides a graphic simulation function to facilitate program error checking.
5. Automatic tool sensor: Avoid errors caused by different tool lengths and manual operations.
6. Carousel 12 PCS Tool Magazine: The use of a 12-tool rotating conveyor belt can speed up tool changes, thereby ensuring faster cycle times, thereby increasing throughput.
7. QUATTRO Aggregate: This aggregate head is standard equipped with 4 tool outlets.Application: horizontal boring, (except X-Line, which can also be used for routing).
8. 1000W YAKO Servo motor: It has the advantages of high accuracy, fast speed, and long service life. In addition, it has a strong anti-overload capability and can withstand a load that is three times the rated torque. When running at high speed, it has the advantages of stable operation and low noise.
Applications of ATC Wood CNC Router:
This CNC Router Machine was made especially for industries such as Foam mold making, Cabinet-making, plastic sheeting processing, and sign making, aluminum cutting, etc.
Suitable Material
Wood Duo Aggregate
The woodworking duo aggregates designed for the Wood Line electro spindles allow a wide range of machining operations to be carried out, including milling, boring, and cutting.

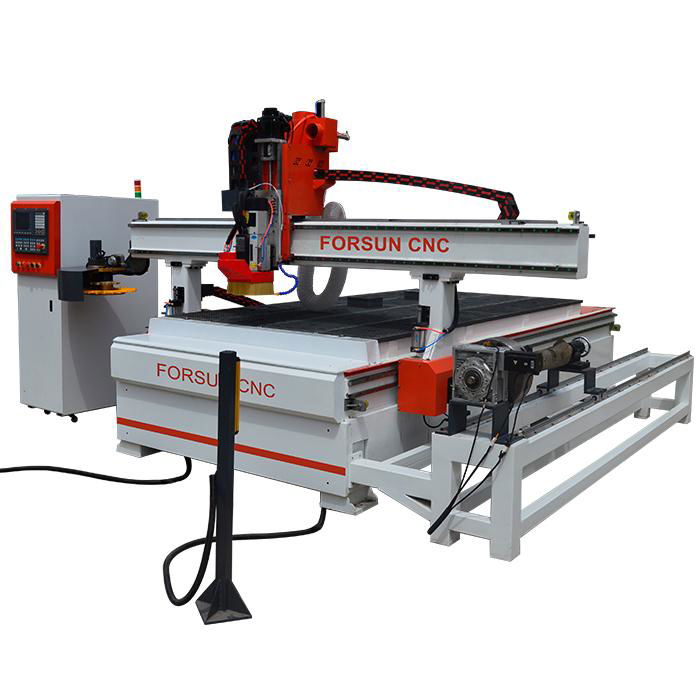

Rotary Axis (The 4th Axis of CNC Router / 4 Axis CNC Router)
The application of the Rotary Axis CNC Router is cylindrical or 3D sculptures in stone, woodworking, advertising, metal, and other industries. We can build the Rotary Axis CNC Router. At the same time, the rotary shaft device can also be added to the standard CNC Router to realize the cylindrical engraving working. Thus, round material and flat material can be processed in one CNC Router. It will save a lot of time and improve high efficiency.
Safety Laser Curtain/laser barriers to Project Operator
We s est installing laser barriers to create laser-safe temporary work areas. It is designed to enable operators to work in complete safety. When you need maximum flexibility for enclosing a laser work area or need a temporary Class 1 laser safe work zone, choose movable laser barriers. Movable barriers are a great alternative to laser curtain systems.
Parameter Data
| Model Name | Carousel ATC Wood CNC Router FS1631 with Auto Pusher |
| X, Y-Axis Travel | 1600X3100mm, Option:1300X2500mm(4X8ft), 2000X3000mm. 1500X3000mm(5X10ft), 2000X4000mm |
| Z-Axis Travel | 200mm, Option: 300mm,400mm,500mm,600mm |
| Spindle Power | 9.0KW ATC Spindle with 24000RPM, ISO30, ER32 |
| Auto Pusher | Auto Pusher |
| Tool Magazine | Carousel Tool Magzine with 12 pcs positions. Option: Linear type Auto tool changer magazine |
| Motor for X, Y, and Z | 1000W YAKO Servo motor |
| Operating System | Syntec Controller Option: NC Studio controller. SIEMENS Controller, DSP |
| Drive System X, Y, and Z-axis | Helical Rack and Pinion for X and Y-Axis, High precision ball screw for the Z-axis. |
| Transmission X, Y, and Z-axis | HIWIN/THK Rail Linear guide and bearings. |
| Machine structure | Cast steel table structure and side support, aluminum T-Plate Extrusion Combined vacuum table |
| Working Voltage | 220V/50HZ/60HZ,3PH 380V/50HZ/60HZ,3PH |
| Command Language | G Code & M Code |
| Collet | ISO30,φ4，φ6,1/8,1/9 |
| Lubrication | Automatic lubrication system |
| Tool Calibration | Automatic tool sensor |
| Dust collector system | 3.0KW Dust collector system with 2 bags |
| Max. Rapid Travel Speed | 80000mm/min |
| Max. working Speed | 45000/min |
| Repeatability | +/-0.04mm/300mm |
| Working Accuracy | +/-0.03mm/300mm |
| Other Names of the CNC Router | CNC Wood Router, CNC Router Machine, Router Machine, Wood CNC Machine, CNC Cutting Machine, CNC Wood Carving Machine, CNC Engraver, 3 axis CNC Router, Best CNC Router, CNC Router Price, Wood Router, Wood CNC Router, 3D CNC Router, Router CNC, Aluminum CNC Router. CNC Engraving Machine, CNC Milling Machine, CNC Drilling Machine, Best CNC Router, 4×8 CNC Router, Cheap CNC Router, CNC Carving Machine, China CNC Router, 3d Wood Carving Machine. |
| Machining Function | 2D Machining, 2.5D Machining, 3D Machining |
| Compatible Software | Type3, UcancCAM, ArtcCAM, AlphCAM, Vectric, Enroute, MasterCAM Cabinet Vision, etc |
| Gross Weight | 2500 KGS |
| Package Size | Plywood Package 4000*2250*1900mm |
