| Model: | AR-131A |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | Roughness Tester , Roughness Gauge , Roughness Meter |
| Price: |
US $230
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:22 Mar, 2024 |

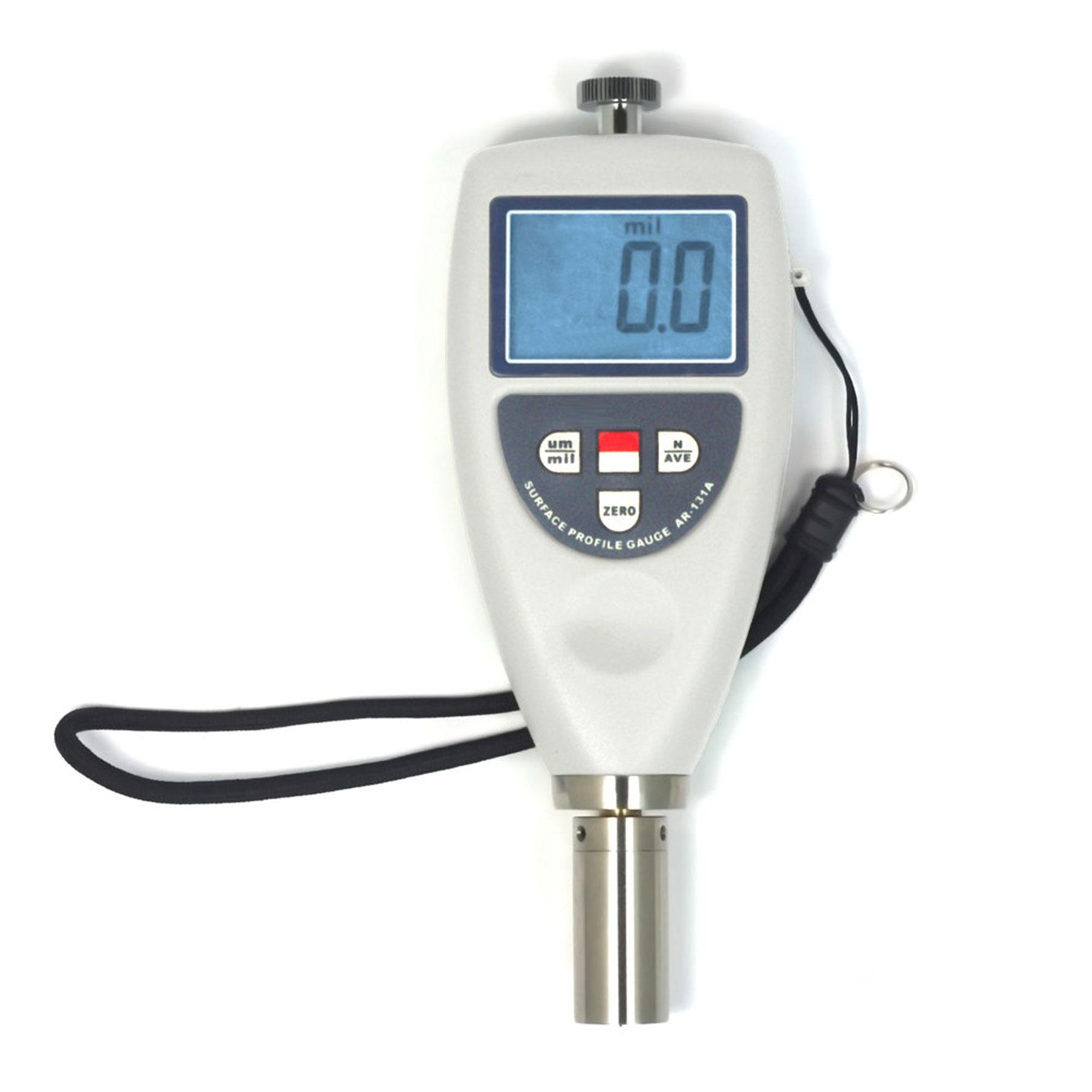

Digital Surface Profile Gauge AR-131A Surface Roughness Tester Range 0 µm~750µm
The Surface Profile Gauge used in Shot blasting industry, the printing industry, Spraying Anti Corrosion Industry, According to the selected measurement conditions are calculated from the corresponding parameters, in the liquid crystal display clearly shows all the measured parameters.
Product Feature
* Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.
* Public and imperial units converted, with the average computing power.
* With a mean value calculation, undervoltage alarm indicator function.
* Direct measurement of the surface peak-trough height.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
|
Resolution |
1µm (0.1 mils) |
|
Range |
0 µm ~ 750µm/(0mils to 29.5mils) |
|
Measurement Speed |
>30 (readings per minute) |
|
Accuracy |
±5% or ±5 µm ( whichever is the greater) |
|
Operating Temperature |
0~ 50°C |
|
Operating Humidity |
＜80%RH |
|
Size |
176x63x25 mm |
|
Power Supply |
2x1.5vAAA Um-4 Battery |
|
Weight |
310 g (Not including batteries) |
|
Standard Accessories |
Main Unit |
|
Zero Calibration Block |
|
|
Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories
|
USB data output |
|
Bluetooth data output |
