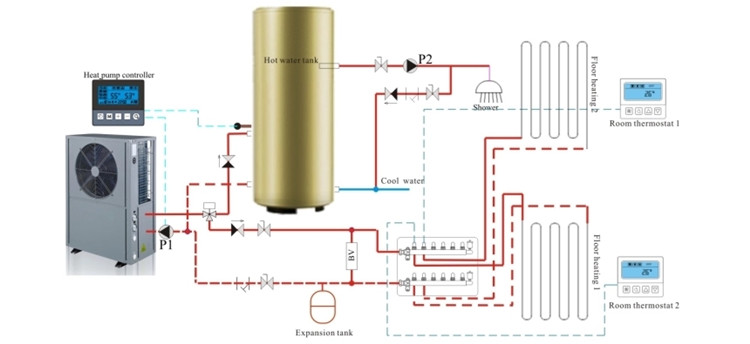

Air source heat pump is a good partner of Underfloor Heating. Underfloor Heating with Heat Pump means that the heat pump absorbs the heat energy in the air and heats the water to a temperature not higher than 60°C (usually 35-50°C). The hot water passes through the radiant Underfloor Heating pipe to transfer the heat to the ground to warm the house.

The advantages of combining radiant floor and air and water heat pump:
1. Radiant floor heating distributes the heat evenly in the entire room, and personal comfort is extremely high.
2. Radiant floor heating has less heat loss, the air is not dry, there is less dust, and the level of mites is lower.
3. The heat pump can provide not only hot water to radiant floor heating, but also hot water and cold water for daily use, and ground cooling in summer.
4. The heat pump only needs a small amount of electricity to drive the engine. The same hot water cost as the solar system-65-70% reduction.
5. The heat pump unit is generally installed outdoors, and the pipes are hidden in the floor, which is safe and does not occupy space.

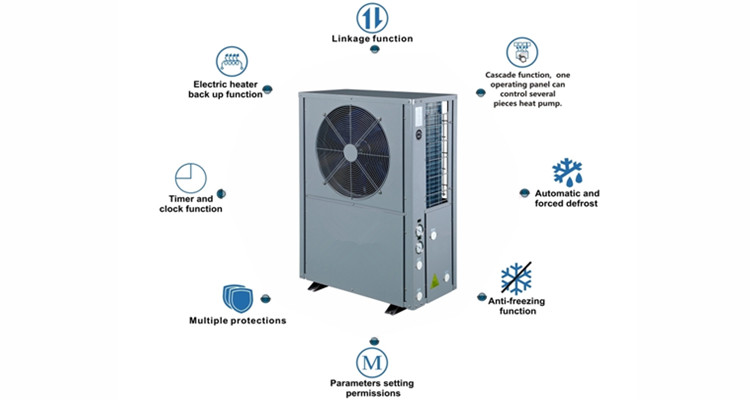

Advantages of Underfloor Heating Heat Pump:
●Maximum outlet temperature of heat pump: 60℃
●Working environment temperature of heat pump: -10℃ to 45℃
●Heat pump heating capacity: 3.8KW-9.2KW
●Lower noise level: 42DB-45DB
●Refrigerant R410A: Does not deplete ozone
●Mitsubishi/Panasonic rotary compressor has high heating efficiency
●The heat pump can automatically defrost function
●Heat pump automatic multiple protection and failure
●The heat pump includes the built-in WILO water pump and Danfoss electronic expansion valve
●LED touch screen controller and digital remote control
●Underfloor Heating Heat Pump has automatic multiple protection

Warranty:
1. CE, CB, RoHS, Conform to EN14511-2:2011 test standard
2. 1 year warranty
3.1% spare parts are repaired free of charge.

Leomon Technology can design and produce Swimming Pool Heater according to customers' special requirements.

Underfloor Heating Heat Pump Specifications:

Rated Working Condition:dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp:55 ℃.
