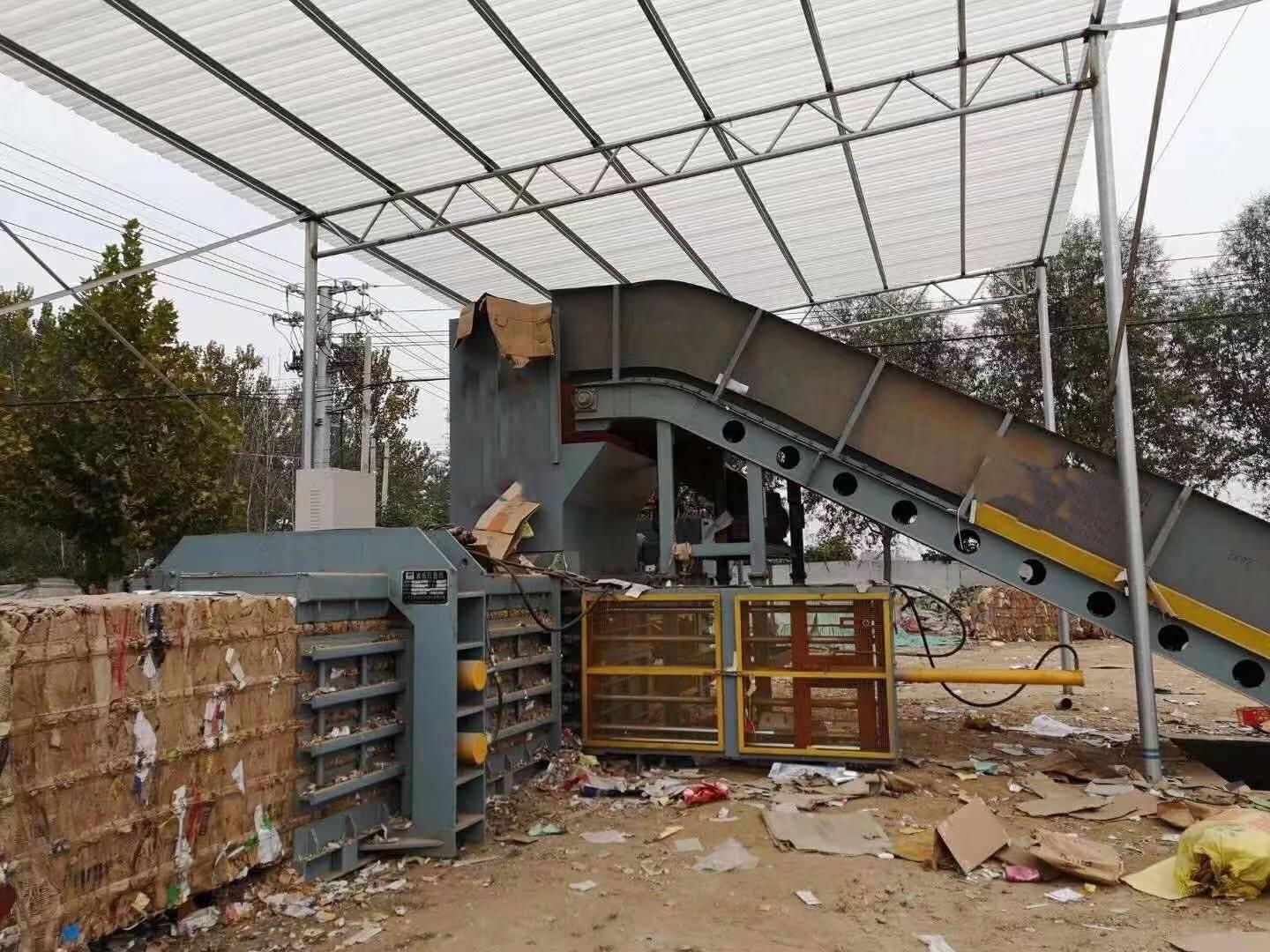

YDWB200 series Semi-Automatic Waste Paper Baler with Conveyor
| Items | YDWB200-I | YDWB200-II | YDWB200-III | Remarks | |
| Capacity | t/h | 8~10 | 6~8 | 5~6 | |
| Bale Size | mm | 1100(w)*1250(h) | 1100(w)*1250(h) | 1100(w)*1200(h) | variable length |
| Bale Weight | kgs/bale | 900~1000kgs | 800~900kgs | 700~800kgs | |
| Main Cylinder | φ280 | φ250 | φ220 | ||
| Motor | KW | 45kw | 37kw | 30kw | |
| Hopper Size | mm | 2000mm | 2000mm | 1600mm | |
| Cooling | water cooling | water cooling | water cooling | ||
| Conveyor | belt conveyor | belt conveyor | belt conveyor | ||
| Machine Weight | tons | about 26tons | about 24tons | about 21tons |
|
About our Machine:
1. Control system: PLC+ touch screen (Siemens brand), lifetime more than 8 years!
2. Two model for operation: you can chose any model you want to operate the machine;
3. Paper feeding automatically: equipped with conveyor to feeding paper automatically;
4. Two pcs photoelectric switch and remote controller to control the conveyor work or not;
5. wire feeding automatically;
6. wire auto-tie system: the wire auto-tie after paper baling;
7. cooling system: high efficiency water cooling to save energy;
8. count wheel: counting bale length automatically;
9. Frequency controller: Siemens Brand, to control the conveyor speed for running.
Application:
--the semi-automatic baler is widly used for pressing waste paper, waste cartons, cardboard, OCC,ONC,ONP etc;
--Semi-automatic baler YDWB150 series baling machine is suitable for small bale size, bale weight baling plant, the small bale is easy for handle after presssing into bale;
--the semi-automatic baler require a man tie bale after one bale finish pressing
--wire feeding automatically by wire feeders
