| Model: | 003 |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Textile & Leather / Fabrics / Non-woven Cloth & Industrial Fabrics |
| Label: | Paper Machine , Forming Fabrics , Dryer Fabrics |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:11 Nov, 2020 |

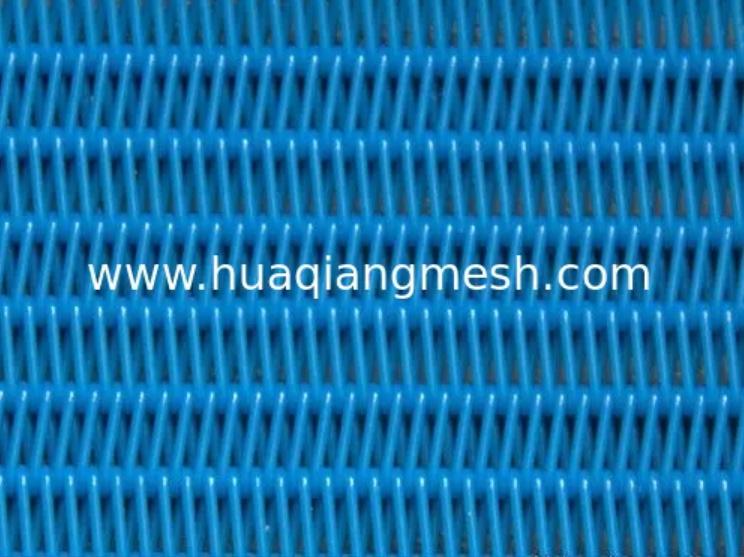

Spiral Dryer mesh with medium loops
Medium loop polyester spiral dryer fabric / Polyester Spiral Link Dryer Screen/ Polyester Spiral Link Dryer Fabric / spiral dryer fabric medium loop / medium loop spiral belt / medium coil spiral fabric / polyester spiral mesh ----medium loop
Polyester spiral dryer fabrics are made from first-class monofilament, in reference to Finland Standard, has the characteristics of stable property and long work time.
It is widely used in producing of paper, corrugated paper, fluting, test linear paper, kraft paper, paper for train fare, also used in filtration and sieving in environmental protection, pharmaceutical, mine, metallurgy, machinery, airspace and other fields.
Major Use of polyester spiral dryer fabric:
Producing of paper, corrugated paper, paper for train fare.
filtration and separation of air, liquid and solid in various fields
|
item |
Diameter of wire |
Strength
|
Thickness
|
Weight
|
Air permeability
|
|
|
Spiral
|
Pintle
|
|||||
|
1001 |
0.9 |
1.1 |
2300 |
3.03 |
1.64 |
21000 |
|
1002 |
0.7 |
0.9 |
2000 |
2.45 |
1.4 |
18000 |
|
1003 |
0.7 |
0.9 |
2000 |
2.45 |
1.31 |
16000 |
|
1006 |
0.5 |
0.8 |
1800 |
1.87 |
0.97 |
15000 |
Medium loop polyester spiral dryer fabric / Polyester spiral dryer fabric with fillers /polyester spiral press filter cloth /spiral mesh with fillers /polyester spiral fabric with fillers---- medium loop
The fillers are added into the spiral loops, in order to decrease the air permeability.
The medium loop spiral fabrics with fillers are widely used in paper machine dryer part, belt press for water treatment, thickener belt, coal washing , sludge dewatering, etc.
More information please click here.
