| Model: | SD12000 |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Drying Machine |
| Label: | drying tunnel , IR dryer , dry machine |
| Price: |
US $12995
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:20 Oct, 2023 |
Description:

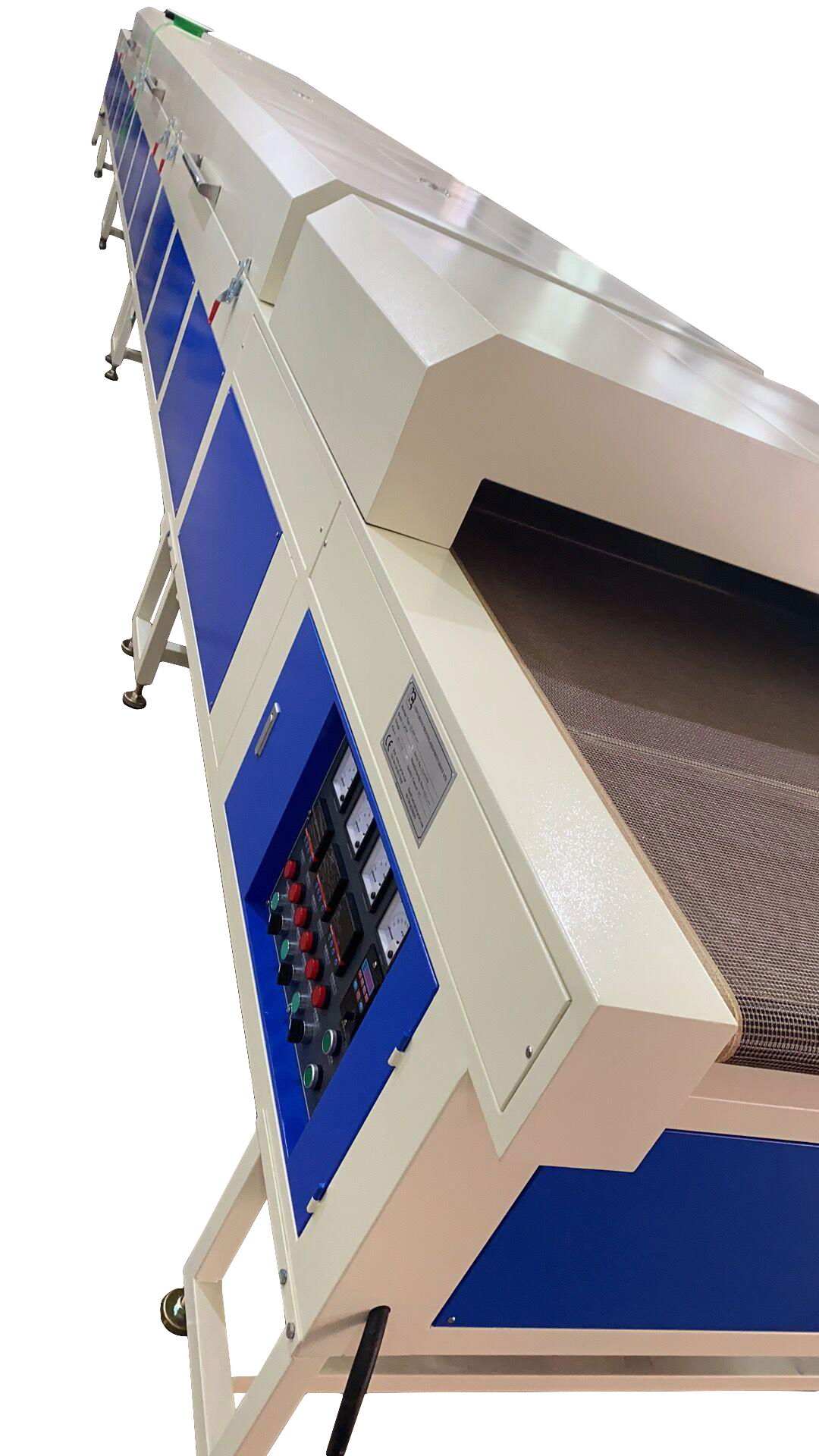

IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. Adopt hot circulating system,save energy effectivly.
3. Teflon screen belt , customers' designs are welcome
4. Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5. Adjustable belt speed and tunnel temperature controls.
6. Cooling System with Ten fans.
7. Insulation cotton for Heat area box.
8. Galvanized iron bracket: 2pcs
Parameters:
|
Temperature range |
Normal~200º C |
|
Enterrance length |
1.90M . |
|
Exit length |
0.80M. |
|
Drying box area |
8M length . |
|
Cooling hood |
1M |
|
Space between drying zone and cooling zone |
0.30M |
|
Conveyor total length |
12M. |
|
Conveyor width |
1M. |
|
Belt material |
2*2.5mesh glass fiber Teflon |
|
Enter high |
120mm. |
|
Leg high |
375mm |
|
Working Power Supply |
AC 380V 50HZ |
|
Belt speed adjustment |
0-30M/MIN |
|
Package dimensions |
288*144*120CM |
|
Package weight |
430KG |
