| Model: | Qixiang QX210 |
|---|---|
| Brand: | Qixiang |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | - |
| Price: |
US $80
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:07 Nov, 2020 |
CONTACT US
Website: www.keennew.com
Email: sales@keennew.com
Skype: kfi_eddy@hotmail.com
Whatsapp: +8613249165907
industrial 4G 3G Cellular Bus Wifi router with for Fleet Management Digital Signage Video Surveillance

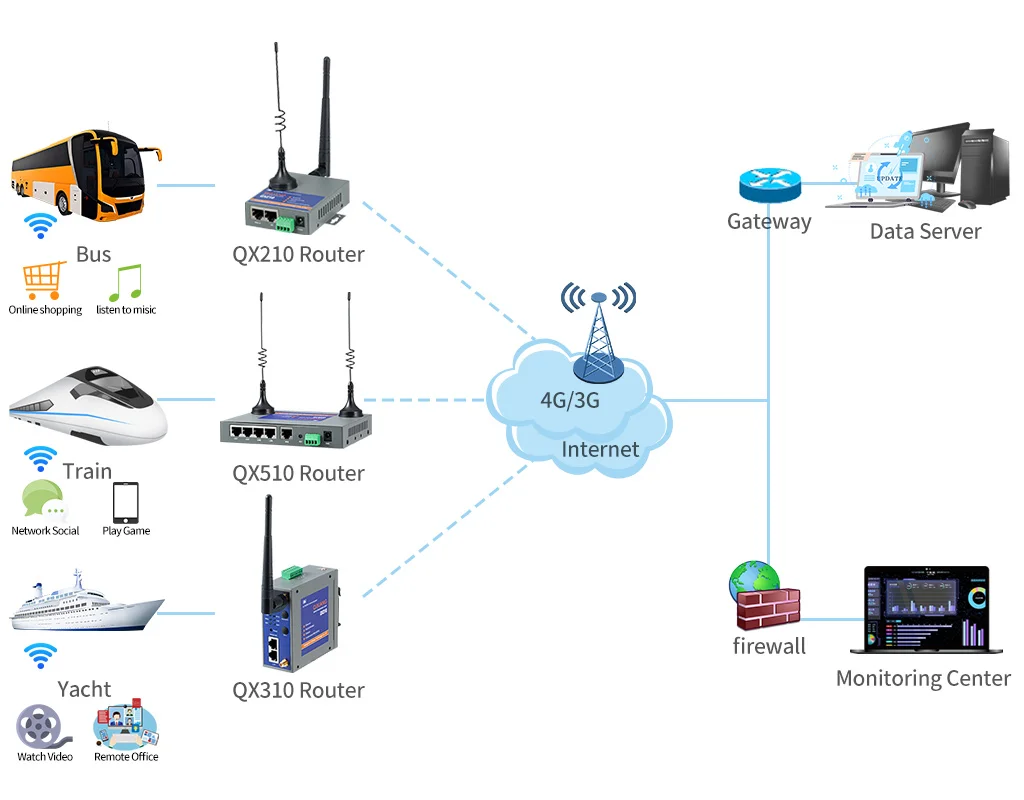

QX210 developed the On Board WiFI GPS solution, provides WiFi hotspot service to passengers, brings great experience for the passengers. This solution can also provide data transmission for Advertising screen, new mobile internet channel and business to transportation companies, advertisers, advertising agencies, mobile carriers, surrounding merchants through a public WiFi hotspot.
Create values for transportation clients:
1. Enhance customer’s experience by providing Bus WiFi Access Point. 2. Enhance on board security by real-time video surveillance data transmission. 3. Increase revenue through Digital Signage Advertising easy deployment.
4. Minimize operational costs by GPS positioning for fleet management.
|
Model |
Qixiang QX210 Series |
|
Product Name |
industrial 4G 3G Cellular Bus Wifi router with for Fleet Management Digital Signage Video Surveillance |
|
WiFi |
Chipset: QCA9531
Standard: IEEE802.11b/g/n, Frequency 2.4GHz Speed up to 150Mbps/300Mbps |
|
Support Area |
Support Cellular Frequency Bands of your order shipping address' country |
|
Cellular |
Module: EC25/SLM750
Frequency Band: Global bands,customized. FDD-LTE,TDD-LTE,HSPA,UMTS,WCDMA,EVDO,GSM,GPRS,etc |
|
Interface |
1×10/100 Mbps WAN + 1×10/100 Mbps LAN, Ethernet RJ45;
1×Serial Port (RS232/RS485); 1×DC Power Connector; 1×Reset Button; 2×External Antennas; 1×Sim Card Slot; |
|
Storage |
Flash/RAM: 128Mb/1024Mb (16MB/128MB) |
|
Power Supply |
DC 12V/1.5A (7.5V-32V) |
|
System |
LEDE Linux/openWRT |
About Order
For Ready to Ship Order:1. The default product support "4G+Ethernet+WiFi", and it adopt Cellular Frequency Bands of your shipping address' country.
2. This router provide a serial port(use for serial data transfer, if you don't need it, please select RS232), please select RS232 or RS485 in the "Model Number".
3. If you have special request, please leave a message or contact us.
Industrial Grade Design, high-performance
Adopt industrial grade high speed 4G wireless communication module and industrial 32 bits CPU, increase in FLASH & RAM, improve data transmission speed and reliability.
Full band support for Global major operators' network
Compatible with major network, including TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, EVDO, 3G/4G,etc, project operation can choose more convenient and economical network and flow rates according to the operation's requirement.
Secure solutions, data transmission meet financial requirement
Qixiang industrial 4G wireless router supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN, N2N etc., Make sure the security and accuracy of data transmission and management.
Stable work for 7 * 24 hours in harsh environment
Qixiang industrial 4g router with strong WDT, self-recovery, schedule reboot function, keeping always online. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment. High level of EMC anti-interference design, work in strong electromagnetic interference environment. This is a ideal m2m iot lte industrial router wifi 4g with sim card slot.
IoT Platform Management, high efficiency
Qixiang router connect with IoT platform, provide remote online monitoring, configuration, upgrade, reboot, log query, parameter backup. Significantly reduce maintenance costs of operators, system integrators, equipment providers, improving the efficiency of management.
Clients Recommend
FEATURE
|
Industrial Grade Design |
√ High-performance industrial wireless module
√ High-performance industrial 32-bit processor √ Support low-consumption mode, including sleep mode, scheduled online/offline mode √ Metal housing, excellent heat dissipation, IP41 protection √ Desktop or Wall mount √ Wide voltage:7.5V~32V DC(Max36V) |
|
Stable and Reliable |
√ Hardware and Software WDT and multi-link detection make it self-recovery from unexpected failure and guarantee reliable communication
√ Port ESD protection, avoid Static Electricity Shock √ VPN protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE √ Always keep online, reboot automatically if disconnected to ensure continual connection |
|
Network |
√ Full bands 4G LTE, compatible with 3G/2G WCDMA GPRS, EDGE √ Port flux detection, Link real-time monitoring√ Support APN and VPDN private network access √ Serial port offer Data Transfer Unit(DUT) function and support Modbus protocol √ Support multi online trigger ways, including ring, SMS, or data trigger √ Support QOS, UPnP protocol, Port forwarding, UDP broadcast relay |
|
Function |
√ Failover, Backup and Load balance between WAN and Cellular network
√ Support DHCP, DDNS, Firewall, NAT, and DMZ host √ Support SNMP, ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS protocol √ Support scheduled reboot √ Cloud-Based, online monitoring, remote parameter configuration, backup, reboot, log query, upgrade √ Optional GPS positioning, Optional WiFi advertising |
