Precast concrete wall panel machine

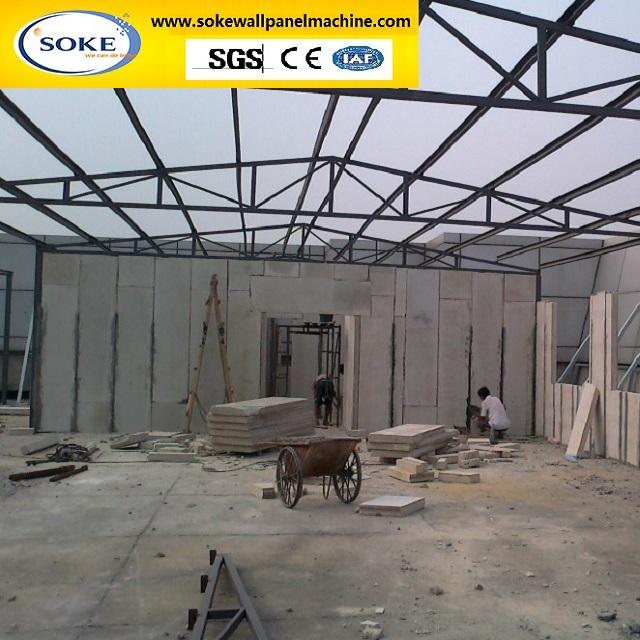

Precast concrete wall panel machine is suitable for Lightweight wall panel,internal wall panel, external wall panel,concrete fence panel, EPS sandwich wall panel, solid wall panel and MGO wall panel of various materials. The thickness, length can be adjusted; the use of a machine (60, 90, 120, 150, 180) can be produced. This machinery can produce Hollow panel(KPB), Solid panel(SPB), Reinforced Panel(JPB) and Sandwich Panel(FPB), with advantage of flexible investment, one set of machinery can produce various panels, It is suitable for both small and large manufacturing on production.

Feature

• High degree of automation equipment,  hydraulic opening and closing

•  Simple operation and high efficiency, low labor intensity.

• The machine can also be equipped with vibrator system for thick mortar

• Mound layer for top groove, The aluminum part with plastic coating for tongue profile to guarantee the precision of top groove

• The Pipes, using steel pipes inside. PVC pipe fixed outside.

•

  Raw materials

• Cement: Portland cement: Curing time is 8-10hours, Low alkali sulphoaluminate cement(Quick setting):2hours
• Flyash: It can be replaced by fine sand, quarry dust, fine slags etc.
• Foaming agent: Foaming agent is a surfactant, in water by stirring to form a foam, foam and slurry stirred.
• Fiber glass mesh:  Width:600mm, Hole size:10x10mm, Weight: min.80g/m2

• Wall Panel Specification

  Size (mm)	Pcs/Mould	Weight
  3000x600x90	20	42kg/m2
  3000x600x100	20	46kg/m2
  3000x600x120	15	56kg/m2
  3000x600x150	12	70kg/m2
  3000x600x180	10	84kg/m2
  3000x600x200	10	93kg/m2
