| Model: | 7T-26 |
|---|---|
| Brand: | Henan Shuangzhi Machinery |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | Scraper Conveyor , Sprocket Wheel |
| Price: |
¥8000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Sep, 2020 |

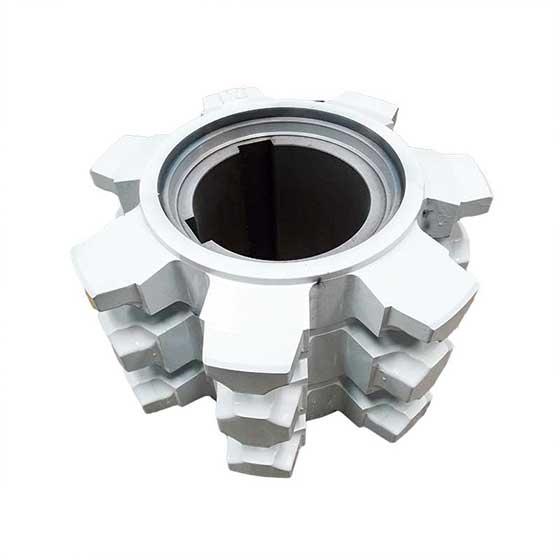

The 7T-26 sprocket body belongs to the sprocket manufacturer and is an important part of sprocket assembly. It is mainly used for hauling scraper chain movement by sprocket assembly and transporting coal out of the working face.
How to determine the 7T-26 sprocket body is trinity? First of all, the figure number of Sany consists of three Numbers: figure number - model number - material code number. For example, SANY SGZ630/264,7T26-59, TBGb.89,11232261 can be confirmed.
When installing the sprocket assembly for mining, the two bearing pedestals shall be respectively placed on the left and right side plates of the head bracket, and the sprocket assembly shall be fixed on the head bracket through the locating pin. Easy to install. Meanwhile, remove the rustproof layer of the spline at the end of the shaft, scrub it clean and then butter it. After the assembly of sprocket assembly and the head frame, industrial gear oil is injected into the oil tank through the sprocket assembly oil injection hole to ensure the normal operation of sprocket assembly.
The core of sprocket assembly is sprocket body and sprocket shaft, 7T-26 sprocket body chain socket introduced German improvement process, three-tooth sector force, increase the force surface to reduce friction, improve service life. Henan Shuanzhi production Zhangjiakou, Running cattle, Sany Heavy industry, Zheng coal machinery, Linzhong and other major mainframe manufacturers of coal accessories, welcome to purchase or visit the factory.
