| Model: | SC0715BL |
|---|---|
| Brand: | Sonitron |
| Origin: | Made In Belgium |
| Category: | Electronics & Electricity / Electronic Components / Speaker,Trumpet & Buzzer |
| Label: | SC0715BL , buzzer , Sonitron |
| Price: |
¥135
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:30 Apr, 2024 |
Product details

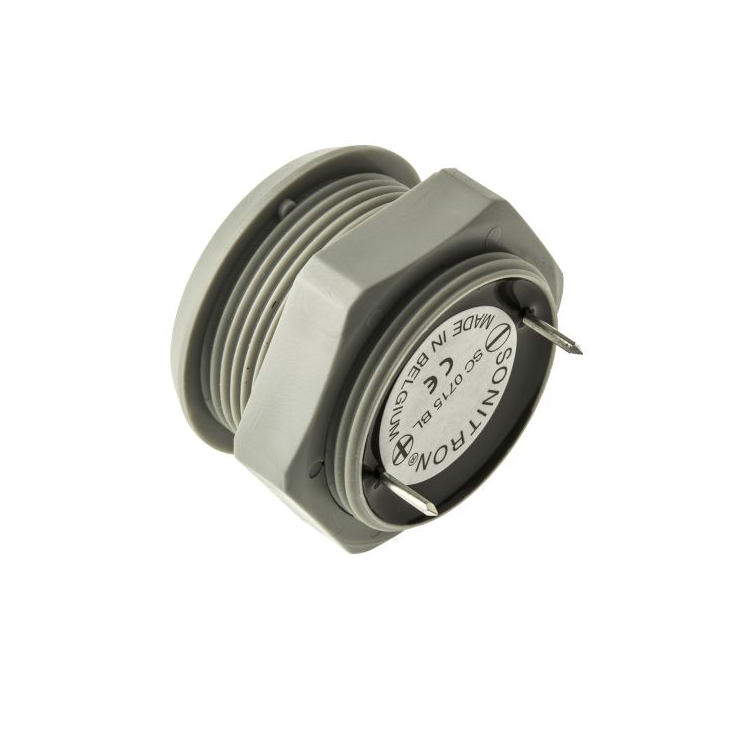

Continuous tone buzzer circuit board pin installed in panel hole
Panel hole mounted buzzer
Circuit board pin connection
High output level
Internal circuit, for DC operation
Product technical parameters
Attribute value
Installation type panel installation
Minimum supply voltage 0.7V DC
The maximum power supply voltage is 15V DC
Sound level: 98dB
Drive type internal
Tone type continuous
Diameter: 36.5mm
Height: 33.5mm
Size 36.5 x 33mm
Minimum operating temperature - 35 ° C
Maximum operating temperature + 75 ° C
The maximum frequency is 4.025khz
The lowest frequency is 2975hz
Power supply current: 13.4ma
| Price Terms: | FOB SHENZHEN |
|---|---|
| Payment Terms: | TT |
| Packing: | 1 |
| Lead Time: | 10 week |
| SKU: | 0 |
