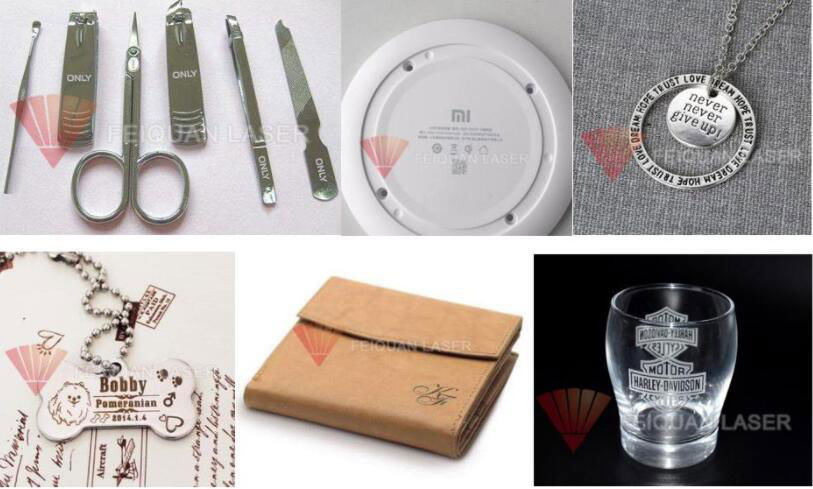

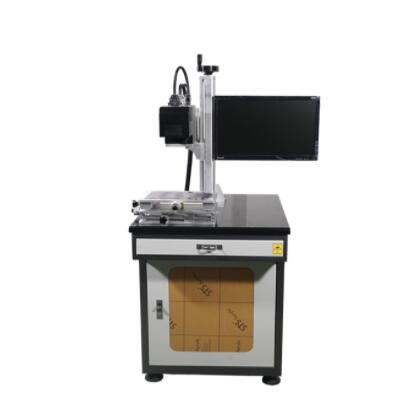

1,3D dynamic focus laser marking machine is an optical fiber surface laser marking machine that can realize three-dimensional and large-format marking.It is suitable for all kinds of non-metal laser marking of three-dimensional surface.3D marking and plane marking theory is the same.The focal length of the laser through the f-theta lens to the marking surface is 300mm.3D adjustable depth is 60mm.The 3D marking is through the model in the marking software to calculate the depth of the fall value to continuously adjust the laser focal length.The laser focal length always consistent with the marking surface,so as to achieve customer marking process requirements.

2,It uses advanced optical design and light loss is small.The same configuration to enhance the marking efficiency is more than 15%

3,The same minimal focus spot,uniform light spot across the board.It is easy to deal with a variety pf large format and complex surface(optional) application requirements.

4,The working area can be adjustable.

5,The high-speed digital galvanometer is design by US CTI with fast speed,high stability and hign efficiency.

6,There are high quality components and autonomous control.
