| Model: | HJ-transform |
|---|---|
| Brand: | Huijin |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | Ammonia Injection S , Ammonia Injection |
| Price: |
¥300000
/ unit
|
| Min. Order: | 1 unit |
| Live Chat: | Last Online:08 Sep, 2020 |
The existing ammonia atomizers distribute ammonia to several atomizing guns by one main pipe that will make resistance, ammonia flow and pressure difference in each atomizing guns, so the atomization will not be so effective. HJ Distribution Measure Ammonia Injection System can perfectly solve the existing uneven distribution problems, improve denitration efficiency and reduce the use of ammonia.
1Distribution Measurement:

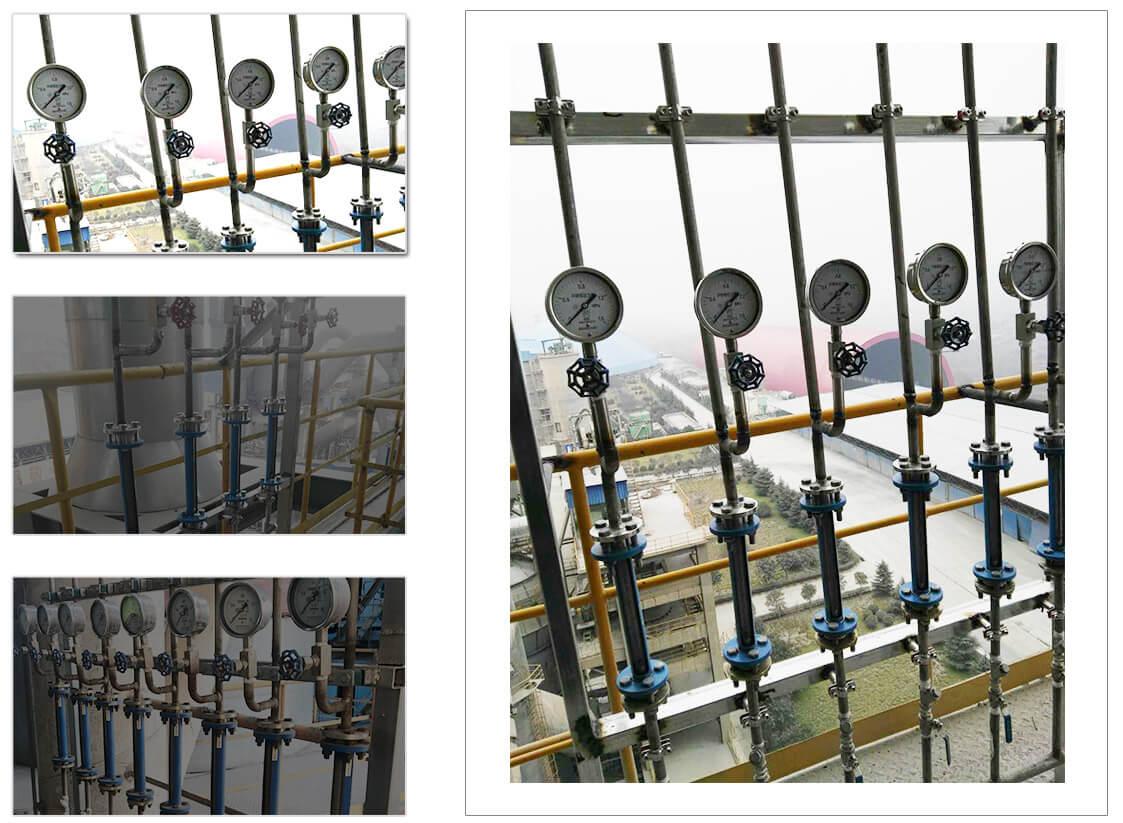

Flow controllers and pressure controllers are installed on each atomizing guns, ensuring the same flow and pressure on each atomizing guns.
2 Optimum atomizing guns partition zone:
Accurate atomizing guns layout and position provide optimum ammonia dispersion gurantee efficiently mix and disperse.
3 Nanoscale atomizing guns improving atomization effect and denitration effectiveness
Econimic benefits analysis: lower investment, lower cost and high energy-saving effectiveness.
Taking 5000t/d cement production line as an example:
The ammonia water injection is 20t/d.
Huijin Distribution Measurement Ammonia Injection System can reduced ammonia water to 14t/d.
The ammonia water saving is 6t/d.
The annual ammonia water saving is 300d x 6t/d =1800t.（Based on 300d/year）
The ammonia water is 700CNY/t.
So the annual cost saving is 1800T x 700CNY/t = 1260000CNY/year.
3w dot hjeqpt dot com
zero zero eight six one double seven three nine three two double one zero eight
| Payment Terms: | TT |
|---|---|
