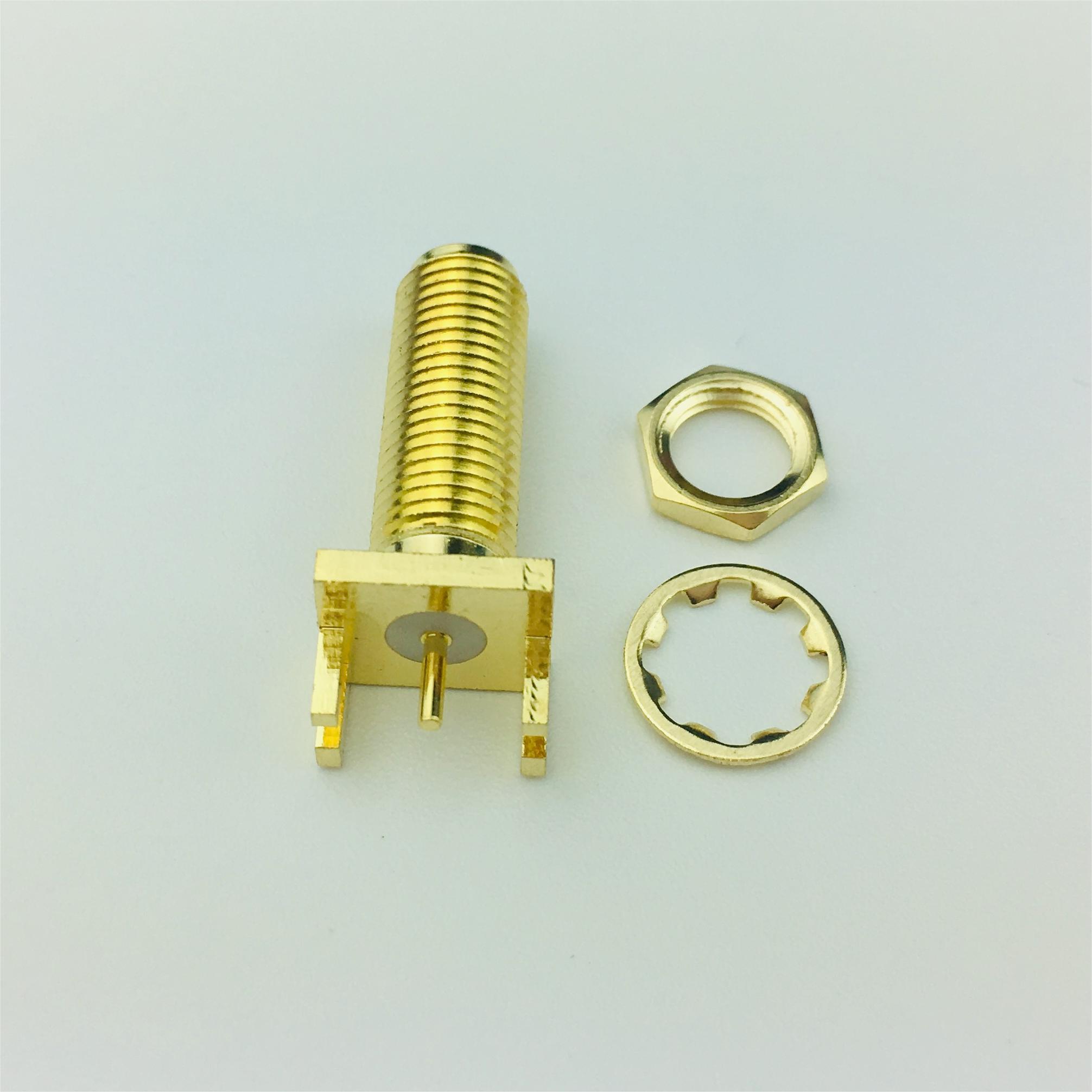

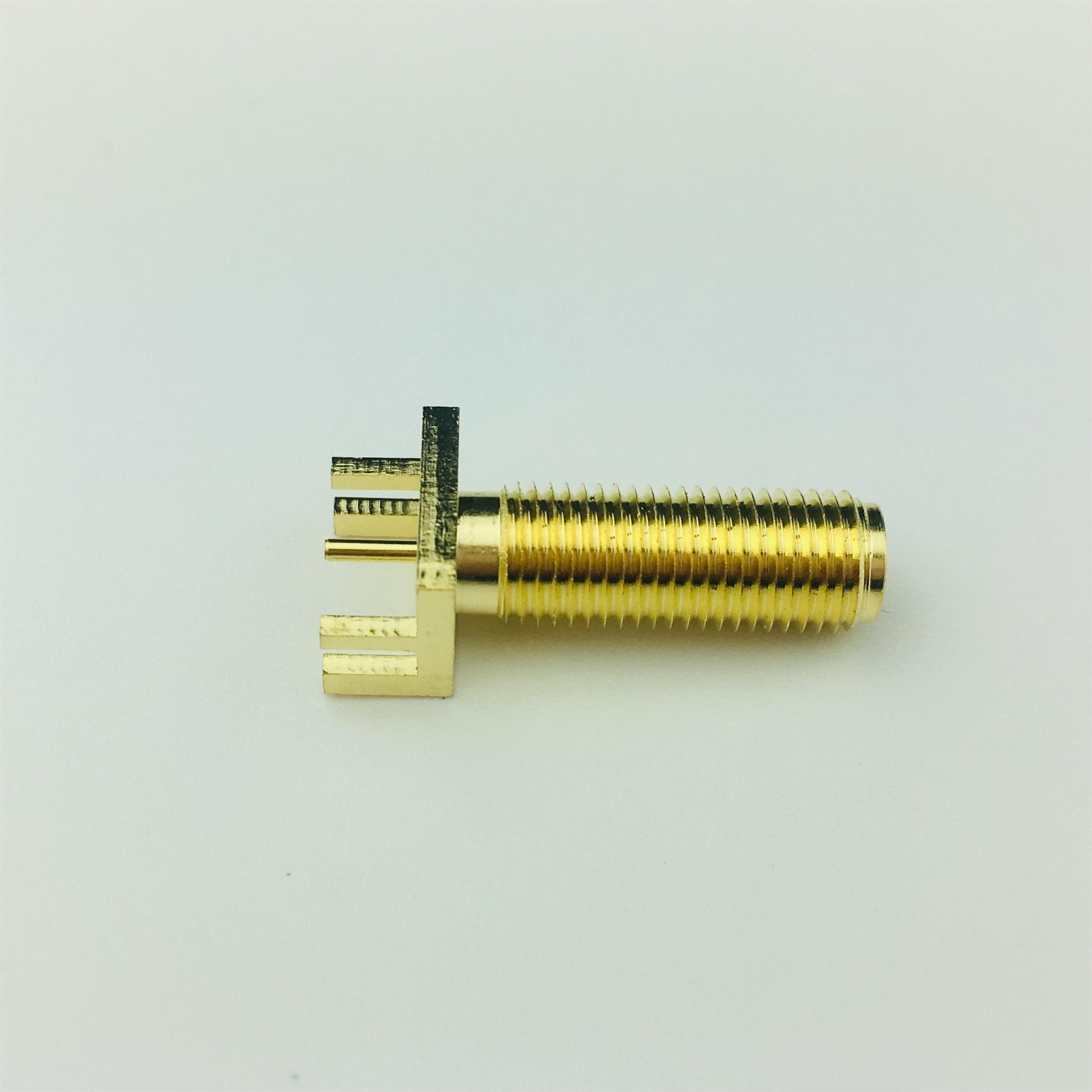

| Model: | FT-SMA-KE-F |
|---|---|
| Brand: | FUTAI |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | SMA Female connector , RG174CABLE , RG316CABLE |
| Price: |
US $0.2
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:12 Apr, 2024 |
Specifications:
|
Model |
FT-Connector-021 |
|
|
Major Technical Characteristics |
||
|
Type |
SMA-C-KY1.5-021 |
|
|
Impedance |
50Ω |
|
|
Frequency Range |
DC～12.4GHz(Semi-Rigid Cable DC-18GHz) |
|
|
Center conductor retention force |
≥0.28 N |
|
|
Insertion Loss |
≤0.15dB/6GHz |
|
|
Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f |
|
|
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f |
||
|
Durability(mating) |
≥500(cycles) |
|
|
Cable |
RG174,RG316 |
|
|
Material & Plating |
||
|
Body |
Brass |
Gold plated |
|
Pin contact |
Brass |
Gold plated |
|
Socket contact |
Beryllium-copper Customized) |
Gold plated |
|
Resilient contact |
Beryllium-copper |
Gold plated |
|
Insulator |
PTFE |
|
|
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring sealing |
6146 silicone rubber
|
|
| Payment Terms: | TT/LC/Paypal/Western Union |
|---|---|
