| Model: | Ball Bearing |
|---|---|
| Brand: | SILURIAN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Insulation |
| Label: | ball bearing , contact ball bearing , QJ212 bearing |
| Price: |
US $0.23
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:21 Nov, 2020 |

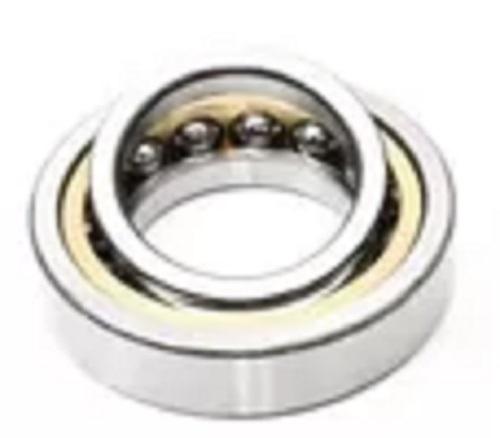

QJ series bearing QJ212 four point angular contact ball bearing size 60x110x22mm precision bearing
Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Angular contact ball bearings are available as:
single row angular contact ball bearings
double row angular contact ball bearings
four-point contact ball bearings
Super-precision angular contact ball bearings
Double row cam rollers
Hub bearing units
QJ Series Four-Point Contact Bearing - 60 mm Bore, 110 mm OD, 22 mm Width, Open, Brass Cage, High Quality
| Specifications: | |
| Inside diameter | 60mm |
| Outside diameter | 110mm |
| Overall width | 22mm |
| Outer ring width | 22mm |
| Cage material | Brass |
| Maximum rpm | 10000RPM |
| Radial dynamic load capacity | 96.5 kN |
| Radial static load capacity | 93 kN |
| Fillet radius | 1.5 mm |
| Closure type | Open |
Four point angular contact ball bearing catalogue:
| BEARING P.N. | Dimensions | ||
| d (mm) | D (mm) | B (mm) | |
| QJ 318 N2MA * | 90 | 190 | 43 |
| QJ 219 N2MA * | 95 | 170 | 32 |
| QJ 319 N2MA * | 95 | 200 | 45 |
| QJ 220 N2MA * | 100 | 180 | 34 |
| QJ 320 N2MA * | 100 | 215 | 47 |
| QJ 1021 N2MA | 105 | 160 | 26 |
| QJ 1022 N2MA | 110 | 170 | 28 |
| QJ 222 N2MA * | 110 | 200 | 38 |
| QJ 322 N2MA * | 110 | 240 | 50 |
| QJ 224 N2MA * | 120 | 215 | 40 |
| QJ 324 N2MA * | 120 | 260 | 55 |
| QJ 226 N2MA * | 130 | 230 | 40 |
| QJ 326 N2MA * | 130 | 280 | 58 |
| QJ 228 N2MA * | 140 | 250 | 42 |
| QJ 328 N2MA * | 140 | 300 | 62 |
