| Model: | GT1030 |
|---|---|
| Brand: | LZZG |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | ore washer , trommel screen , rotary screen |
| Price: |
US $2000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:10 Mar, 2023 |

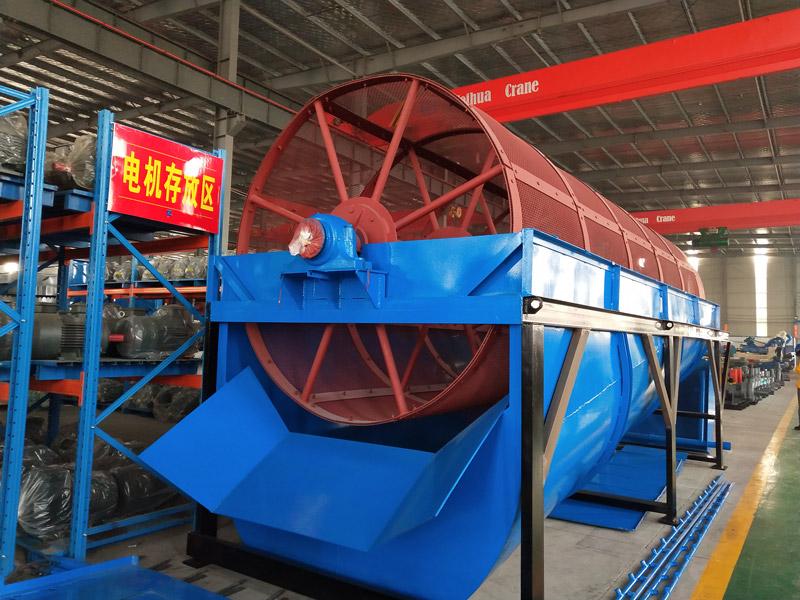

The trommel screen is a mechanical screening device used to separate materials like soil, mulch, and sand, ore, coal, gravel, mainly in the mineral and solid-waste processing industries, also called rotary screen or drum screen. The products were exported to Thailand, Indonesia, South Africa, Australia, Europe, etc.
It’s designed to minimize setup time and be easy and convenient to service. We have perfected the ability to size and customize drum screens with different materials to suit the application, such as the updated product compact sand washer.
Proposed Price USD $1000~$2000
How does it work
The trommel separator is tilted on the rack. The motor is driven by the reducer to rotate the drum unit around its axis. After the material enters the drum device, due to the tilting and rotation of the drum device, the material on the screen surface is flipped and rolled so that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the drum screen, and the unqualified material(the product on the screen) is discharged through the discharge port at the tail.
