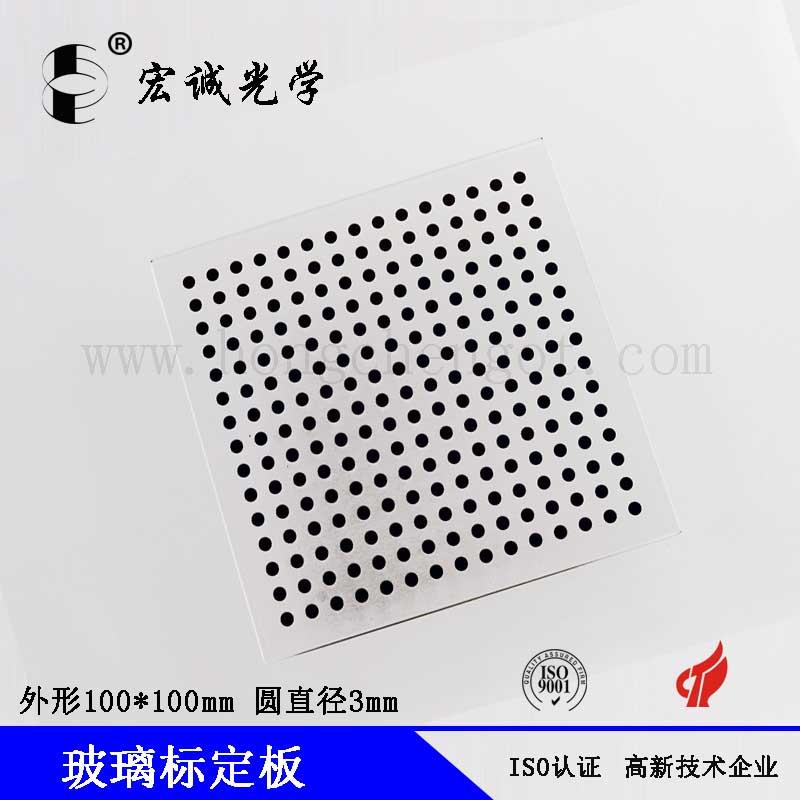

100mm*100mm Camera Distortion Calibration Target

• Place of Origin: Guangdong, China (Mainland)
• Brand Name: Hong Cheng
• Material: Ceramic material, Soda glass
• Product Model: HBM03-DDZ-1
• External Dimensions: 100mm*100mm*2mm
• Accuracy: 0.001mm
• Solid Dot Size: 3mm
• Center Distance: 5mm
• Application Range: Machine Vision,PCB Board,Metal Plating Etc.

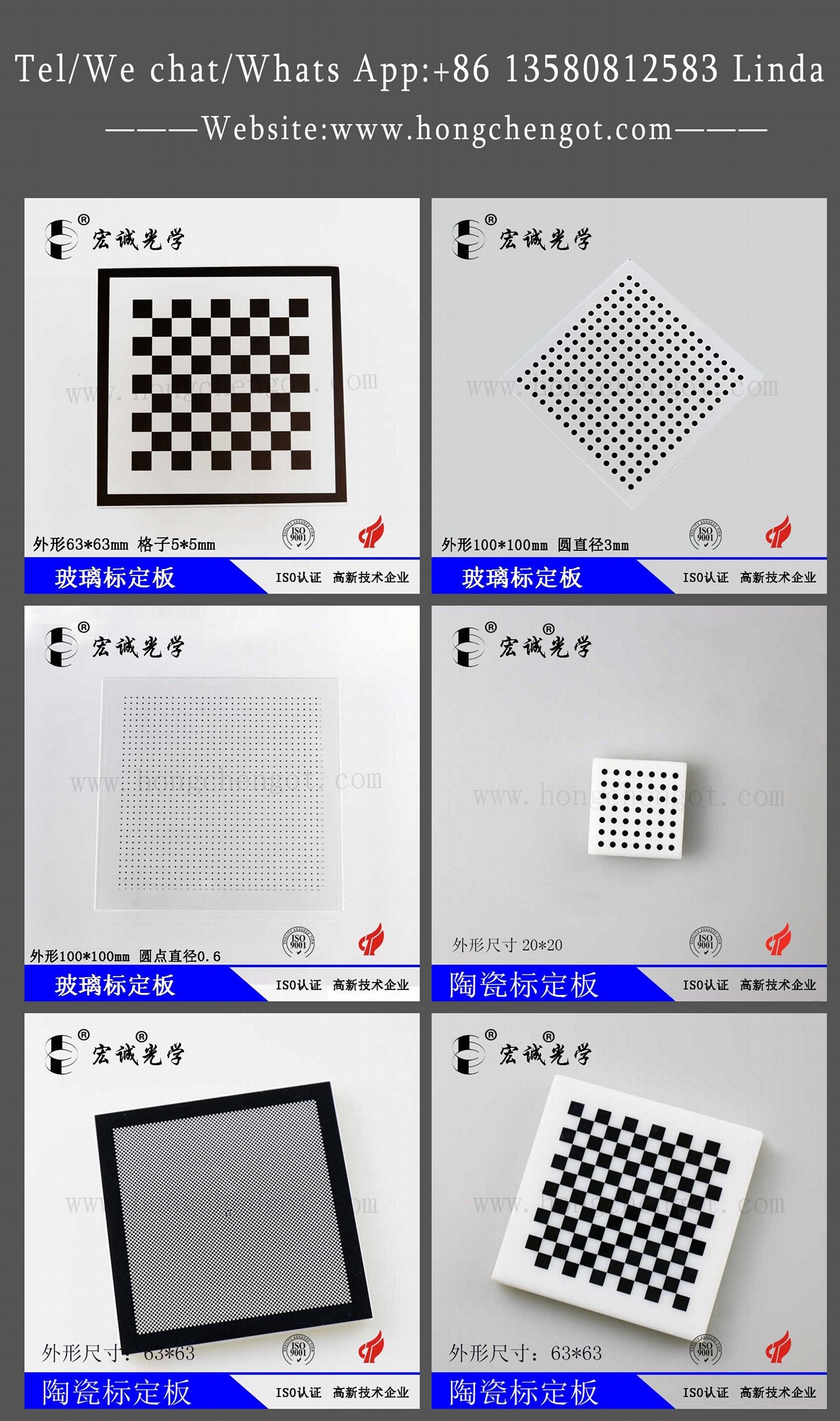

• Dimensions (mm)	Dot Diameter (mm)	Dimensions (mm)	Dot Diameter (mm)
  63*63	3.5	63*63	2
  63*63	3	63*63	4
  63*63	5	63*63	6
  63*63	7
  100*100	2(Three dots are Φ 4)	100*100	3
  100*100	4	100*100	5
  100*100	6	100*100	7
  138*138	6	275*275	3(Four dots are Φ7)
  300*300	3	600*800	30
  Ceramic Board
  50*50	2	63*63	3.5
  100*100	3	200*200	2

  Application Range :

  Professional used to measure the instrument to standardize calibration. Instruments to measure the workpiece before the calibration, this Calibration Targe as a standard sample. According to correspondence obtained from the standard values, Applicable Machine Vision,PCB Board,Metal Plating,Optical Image Coordinate Measuring Apparatus,Optical Image Profile Projector,Microscope,Mounter Etc. Instrument Calibration.
