| Model: | DL-BK24K6-52TX |
|---|---|
| Brand: | DreamLNK |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Circuit Board |
| Label: | 2.4G transmit module , RF Module , 2.4G Module |
| Price: |
-
|
| Min. Order: | 500 pc |
| Live Chat: |  | Last Online:14 Jul, 2023 |

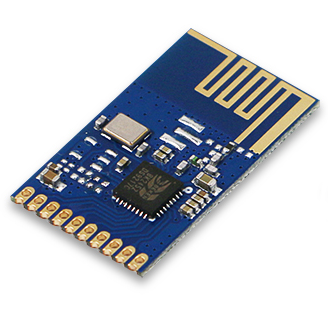

DL-BK24K6 TX/RX wireless remote control module is a 2.4G SOC multi-channel switch output module developed by DreamLNK, DL-BK24K6-52TX is a transmit module with optimized power consumption (developed specifically for battery-powered systems), which only requires a 3.3V power supply. We have internally designed 2.4G code matching, remote control, low power consumption, and Co-Channel Interference optimization. You just need to connect the necessary input buttons and output loads, code matching buttons, code matching indicators, etc. It can be used without any programming.
Features
● 2.4G ISM frequency band, global open frequency band, no safety restrictions;
● Adopt high-performance baseband processing chip, fast remote control and high security level;
● Built-in MCU-SOC (system on chip) combined with patented software design, without same frequency interference problem, users do not need to program;
● 6-channel input and output function, can be expanded, the output state can be customized (to customize the signal type);
● Highly integrated, small size, low power consumption design, no peripheral components, easy to use
Typical application
Wireless Remote Control; Smart Home Appliance; Remote Control Toy; Remote Control Boat; Remote Control Socket; Remote control door lock; Wireless sensor; Smart home control system; Garage access control system
The 52TX module is used in battery-powered remote controllers, the high-power TX module is used in adapter power supply systems, and the RX receive module is compatible with two transmit modules

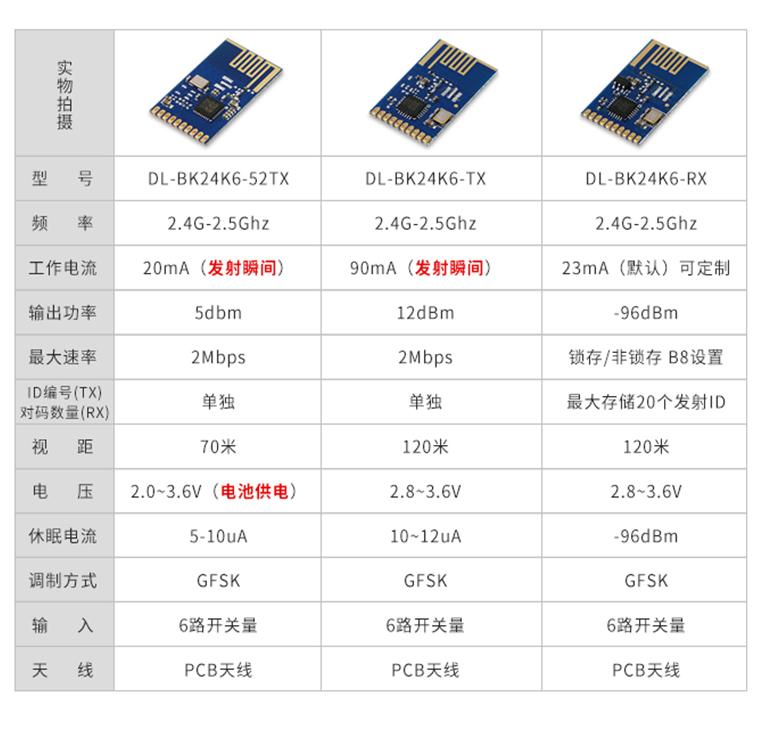

Technical Parameter
|
Transmit Module |
DL-BK24K6-52TX |
Transmit Module |
DL-BK24K6-TX |
Receive Module |
DL-BK24K6-RX |
|
Frequency |
2.4G-2.5Ghz |
Frequency |
2.4G-2.5Ghz |
Frequency |
2.4G-2.5Ghz |
|
Operating Current |
20mA (instantaneous current) |
Operating Current |
90mA (instantaneous current) |
Operating Current |
23mA (defaulted) Customizable |
|
Output Power |
5dbm |
Output Power |
12dBm |
Receive sensitivity |
-96dBm |
|
Max. Transfer Rate |
2Mbps |
Max. Transfer Rate |
2Mbps |
Output State |
Latched/Unlatched; B8 setting |
|
ID No. |
individual |
ID No. |
individual |
Match Codes |
Max. 20 transmit IDs |
|
Distance |
70M |
Distance |
120M |
Distance |
120M |
|
Voltage |
2.0~3.6V |
Voltage |
2.8~3.6V |
Voltage |
2.8~3.6V |
|
Stand-by current |
5-10uA |
Stand-by current |
10~12uA |
Stand-by current |
-96dBm |
|
Modulation |
GFSK |
Modulation |
GFSK |
Modulation |
GFSK |
|
Input |
6-channel switch value |
Input |
6-channel switch value |
Output |
6-channel switch value |
|
Antenna |
PCBAntenna |
Antenna |
PCBAntenna |
Antenna |
PCBAntenna |
