| Model: | - |
|---|---|
| Brand: | Secukey |
| Origin: | - |
| Category: | Security & Protection / Alarm |
| Label: | Fingerprint access , Biometric device , fingerprint keypad |
| Price: |
US $30
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:28 Apr, 2020 |

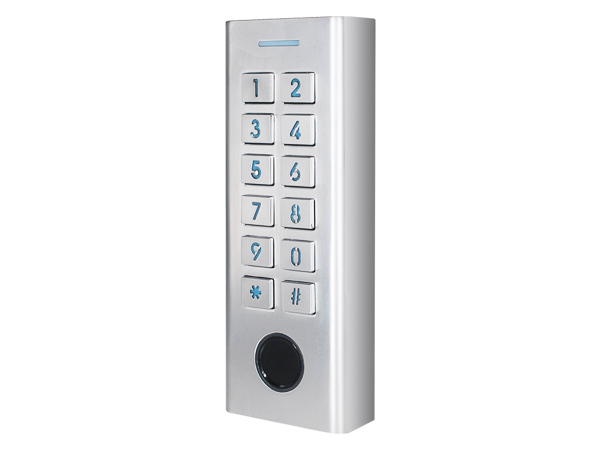

Biometric waterproof fingerkey with capacitive fingerprint sensor
Main Feature:
Waterproof Fingerkey
> Waterproof, conforms to IP66
> Metal case, anti-vandal
> One Programming relay output
> Multi-color LED Status Display
> 1000 Users （ 100 Fingerprint Users + 890 PIN Users + 10 Visitor Users )
> PIN length: 4~6 digits
> Integrated alarm & Buzzer output
> Capacitive Fingerprint Sensor
Specification:
|
User Capacity Fingerprint PIN
|
1000 100 890
|
| PIN Length | 4~6 digits |
|
Operating Voltage Idle Current
|
12V DC ≤ 45mA
|
|
Fingerprint Reader Resolution Identification time FAR FRR |
Capacitive Fingerprint Module 500DPI <1S <0.001% <0.01% |
| Wiring Connections | Relay output, exit button, alarm, door contact |
|
Relay Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common) 0~99 Seconds (5 seconds default)
2 Amp Maximum
|
|
Environment Operating Temperature
Operating Humidity |
Meets IP66 -30°C ~ 60°C (-22°F ~ 140°F)--Default -40°C ~ 60°C (-40°F ~ 140°F)--Optional 20%RH ~ 90%RH |
|
Physical Surface Finish Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Powder Coat L130 x W50 x H25 (mm) 136g 189g |
| Payment Terms: | TT/PayPal/Western Union |
|---|---|
