| Model: | CB-680 |
|---|---|
| Brand: | Chengbo |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | PCB separator , PCB Cutting Machine , pcb cutter machine |
| Price: |
US $23100
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:19 Mar, 2020 |

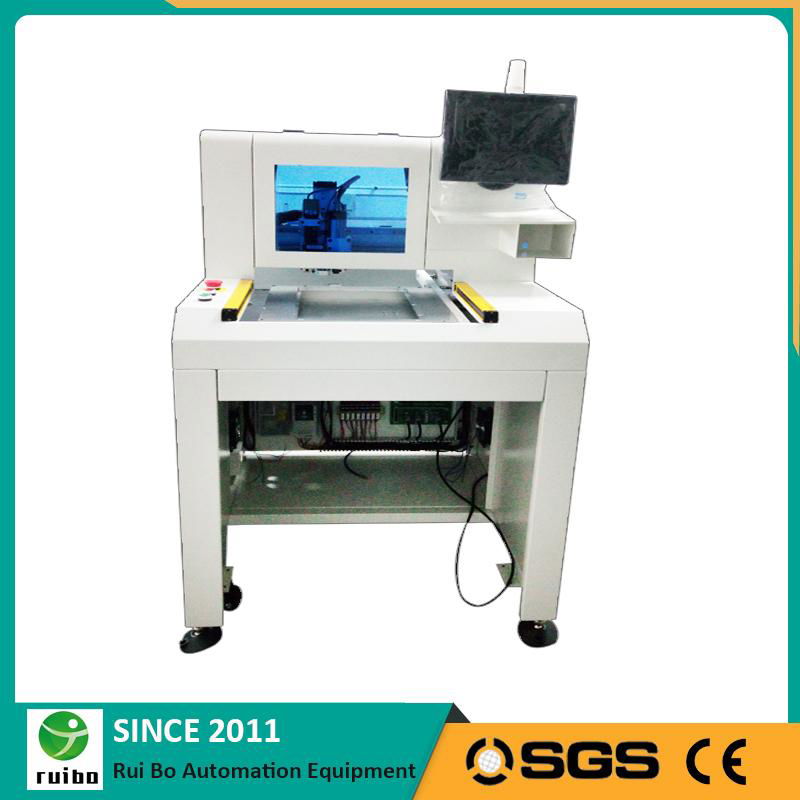

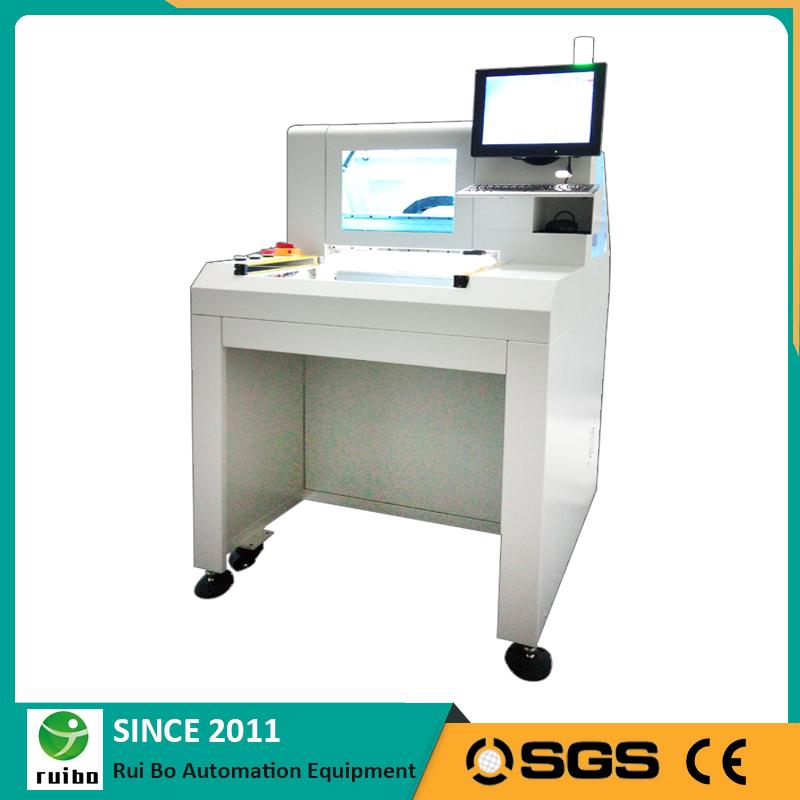

Universal Industrial PCB Cutter Machine for Electronics Assembly
Advantages of PCB cutting machine:
Apllication for PCB Depaneling Machine
©The best solution of PCB cutting;
©Avoid solder crack or part damage caused manual board folding;
©Avoid stress caused by board folding of machine;

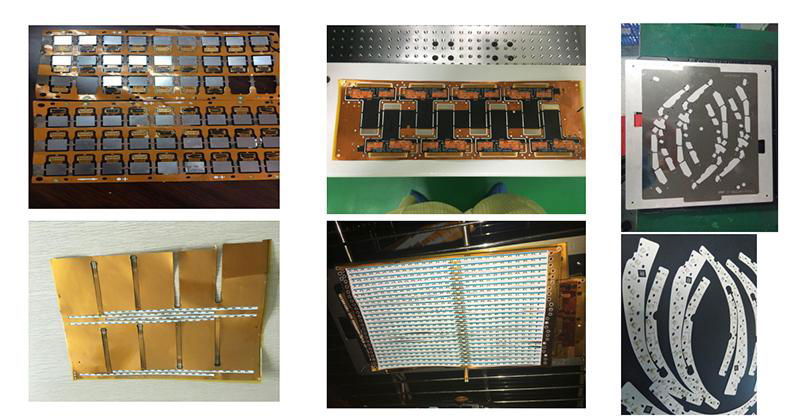

©Suitable for arc and curve cutting of PCBA;
©Suitable for small and multiple connected board cutting, e.g.board of mobile phone, digital camera, bluetooth, DV..
Specification for Automatic PCB Separator Machine
| System models / types | Windows 7 Professional |
| Size(LxWxH) | 1050mm*1050mm*1400mm |
| Weight (Approximate) | 220KG |
| Adjustable machine footings (for height) | (Adjustable) 60~110mm |
| Manipulator Motor | Panasonic MINAS A5 |
| Manipulator Repeatability | ±0.01mm |
| Maximum Axis Travel (X,Y,Z) | :500mm*550mm*80mm |
| Board Positioning | Fixture positioning and visual correction |
| Loading/Unloading | Manual placement |
| Routing Range | Max: 500mm*550mm |
| Panel Thickness | Max: 0.0125-2mm |
| Max routing speed | 1.5-3s/point |
| Cutting Repeatability | ±0.02mm |
| Power | 1.5KW AC220V |
| Vision system | (visual system) high precision CCD visual positioning correction system (SONY 250 series) |
| Programming | On-line |
| Editing function | line, slash |
| Toolbit Diameter Compensation | Different angles and shapes are available for user selection |
| Spindle | Domestic spindle and frequency converter/imported spindle (optional) |
| CCD | (SONY 540X) series industrial camera |
| Camera lens | Computar EX2C |
| Lead screw | THK (imported precision grinding lead screw) |
| Guide rail | TBI( inlet straight line widened guide rail) |
| Servo motor | Panasonic A5 |
| I/O control card | ADLINK pci-9074 |
| Motion control card | ADLINK pci-9074 multi-axis control card |
| Transfer card | Boxin-b01 |
| Industrial host | dedicated |
| Display | DELL LCD 17" /Logitech mouse(Option) |
Main Features of PCB Router Machine
1. X10 zoom-in image makes programming easier&increase the accuracy of point setting.
2. Using double slide into place device, reduce the cutting waiting times, increase production capacity.
3.AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
4. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first miling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
5. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
Advantages of PCB Depaneling Router
1.Smooth cutting finish only by router cutting .
2.There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3.One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5.Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB
7.Developed high performance router bit that expanded bit life and relief littering .
8. Cut down PCB cost because need not making V-groove on PCB
Software compensation function advantage
1.Automatic MARK positioning correction system, moving path display tracking, auto focus correction function, cutting precision is higher, to meet higher precision products.
2.The automatic alignment correction function has higher cutting precision. As long as the PCB is deflected within the range of 80mm2,machine vision can perform automatic route correction, which relaxes the operator's accuracy requirements when placing the board. Greatlyimproved work efficiency.
Benefits of PCB Board Depanelizer
1.Simple and friendly user-interface design with HMI Windows 7 operating system.
2.Automatic cutting path correction system.
3. Can single-step program editing and modification by high pixel CCD program production and block program.
4.Fixture-based highly efficient dust vacuum system.
5.Cost Effective.Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and time.
6.The price is undeniably practical and the ease in which the machinery can be operated.
