GPS+GSM Combo Antenna with SMA Connector
Product Description
Applications
Automobile Navigation,
Logistics Positioning and etc.
Features
High stability,
Linearity,Consistency,
High gain,
outside-band interference suppression,
Low Noise Figure
| Item |
Specifications |
| GPS Antenna |
Dielectric Antenna |
Center Frequency |
1575.42±1MHz |
| Band Width |
CF±5MHz |
| Polarization |
RHCP |
| Gain |
2dBic(Zenith) |
| V.S.W.R |
<1.5 |
| Impendance |
50Ω |
| Axial Ratio |
3dB(max) |
| LNA |
Gain |
28±2dB |
| Noise Figure |
<2dB |
| V.S.W.R |
<2.0 |
| Supply Voltage |
2.2~5V DC |
| Current Consumption |
5~15mA |
| GSM Antenna |
Frequency Range |
824~960MHz/1710-1990MHz |
| V.S.W.R(min) |
<2.5 |
| Polarization |
Linear |
| Gain |
2dBi |
| Impendance |
50Ω |
| Mechanical |
Cable |
RG174 |
| Connector |
SMA/MCX/FAKRA or others |
| Radome Material |
ABS |
| Mounting Method |
Magnet/Adhesive |
| Environmental |
Operating Temperature |
-40ºC~+85ºC |
| Relative Humidity |
Up to 95% |
| Ingress Protection |
IP65~IP66 |
| Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly |
ROHS Compliant |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
| Payment Terms: | TT/PAYPAL/WESTERN UNION |
| |

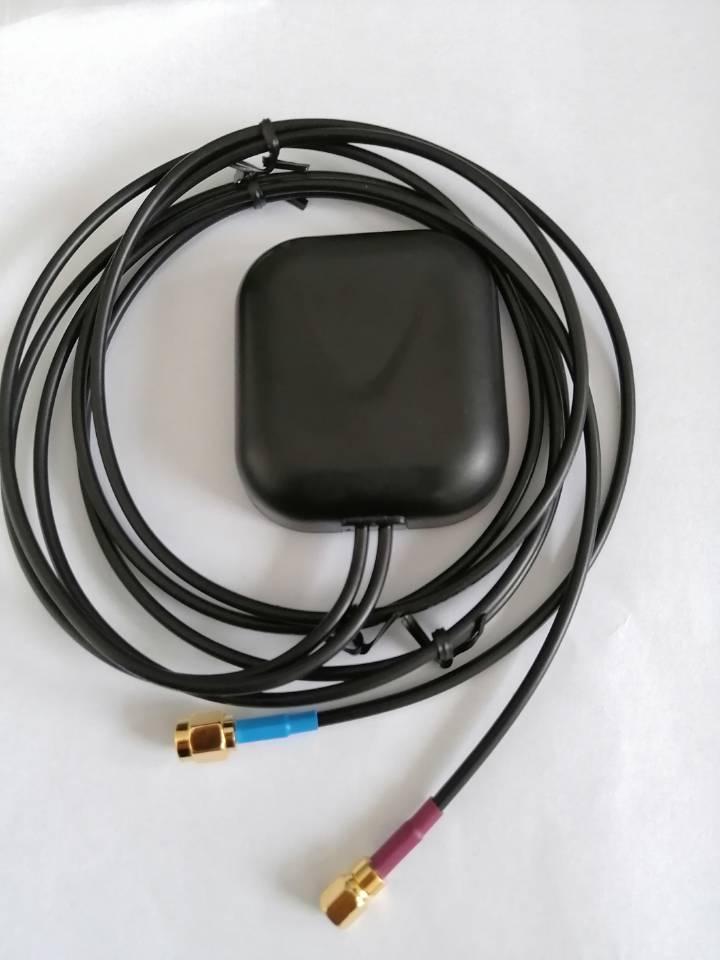

Product Image
