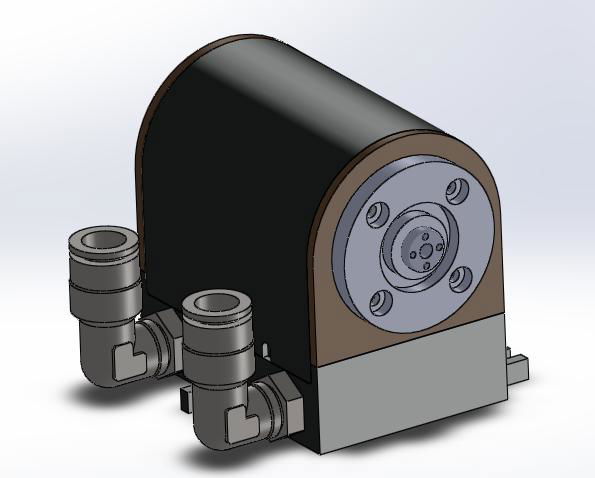

This is the GN series water-cooled diode-pumped Nd:YAG modules. The output power is from 50W up to 500W (@1064nm)

here is the technical specifications:
Central Wavelength: 1064nm
Typical Output Power: 75W
Typical Operating Current: 20-25A
Typical Operating Voltage: <24V
Threshold Current: Around 7-10A
Nd:YAG Diameter: 3x75mm
Nd:YAG Doping: 0.6%

Notes:
1) Minimum 1064 nm multi-mode output in a short cavity (200 mm, Plane-Plane Resonator, OC T=20%).
2) Expected life time is around 10,000 hours.
3) Other doping level can be customized upon request.
4) Other DPSS laser modules can be customized according to specific requirements.
5) QCW / Plused modules available.
6) Warranty: 13 months after delivery.

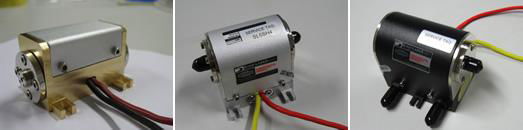

Laserconn provides following types of regular DPSS Laser Modules:
pls contact: linda at laserconn dot com

1) GN20 Series, 20W DPSS Laser Module (2mm Diameter Nd:YAG)
2) GN35 Series, 35W DPSS Laser Module (2mm Diameter Nd:YAG)
3) GN50 Series, 50W DPSS Laser Module
4) GN75 Series, 75W DPSS Laser Module
5) GN100 Series, 100W DPSS Laser Module
6) 150W-500W DPSS Laser Module
7) Customized DPSS Laser Module

Applications:
1) Laser marking & engraving
2) Laser welding, Laser cutting and other industry applications.
3) Research applications
4) Medical applications

Besides regular modules, Laserconn can also customize various modules according to our client's requirements.

Please contact us for specification details & quotations.
