| Model: | TC-771RG |
|---|---|
| Brand: | HYS |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Antenna |
| Label: | 136-174MHZ antenna , CS tactical antenna , Dual band antenna |
| Price: |
US $12.7
/ pc
|
| Min. Order: | 2 pc |
| Live Chat: |  | Last Online:14 Jun, 2023 |
· 2 Meter/70cm (144Mhz/430Mhz) 18.7inch Foldable Portable Antenna ;Connector: sma-female
· Maximum Power Input-watts:20W (Walkie-talkie less than 20W);Gain:2.15/3.2dBi ;

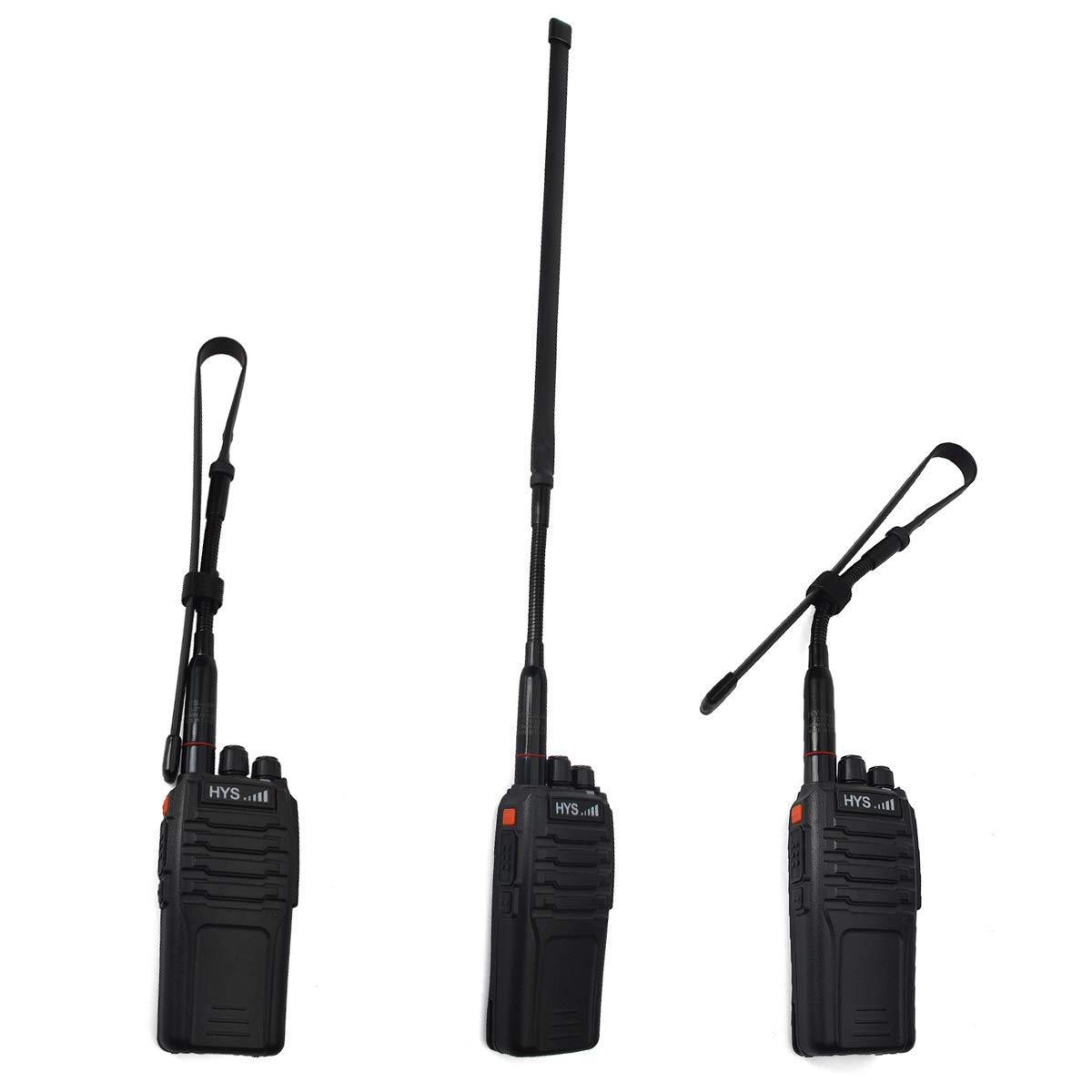

· Foldable CS Tactical Antenna easy to carry and it can help your handheld Radio extend the talk distance. Adjustable Positioning - The gooseneck Antenna with one flexible shaft that can be adjusted of length and easy antenna direction.
· Compatible with AnyTone, BaoFeng, some Wouxun, and some Kenwood Handheld Radios; Working for the MODEL NUMBER: baofeng uv-5r, bf-f8hp, uv-82, bf-888s, 888S, uv-82hp, bf-f8+, uv-5r Series, uv-82 Series;
· Antenna suitable for indoor and outdoor use, outdoor Adventure Club, camping and self-driving travel. Light weight, flexibility and easy installation work, antenna doesn't take up space, allowing you carry in an outside pocket of backpack.
|
ELECTRICAL SPECIFICATIONS |
|
|
Frequency Range |
144MHz&430 MHz |
|
Band width |
5MHz |
|
Impedance |
50Ω |
|
VSWR |
≤1.5 |
|
Gain |
2.15/3.2dBi |
|
Polarization |
Vertical |
|
Maximum Power Input-watts |
20W |
|
Radiation |
Omni |
|
Lighting Protection |
Direct Ground |
|
MECHANICAL SPECIFICATIONS |
|
|
Height |
47.5CM±5MM (18.7inch) |
|
Termination |
SMA-FEMALE,SMA-MALE,BNC |
|
Radome material |
PLASTIC CEMENT(ABS) |
|
Radome Color |
Black (PLASTIC PARTS) |
SMA FEMALE Connector
Compatible with AnyTone, BaoFeng, some Wouxun, and some Kenwood
Adjustable Positioning - The gooseneck Antenna with one flexible shaft that can be adjusted of length and easy antenna direction.
Compatible with Two-way handheld radio:
Working for Baofeng/Pufeng handheld Radio:GT-3, UV-5R, UV5RE, UV5RA,UV5R Plus UV-82L .etc
Working for WOUXUN handheld Radio: KG-UVD1P,KG-UV6D,KG-659, KG-669 , KG-669 PLUS, KG-679, KG-679 Plus, KG-689, KG-689 PLUS, KG-699E
Working for LINTON handheld Radio: LT-2288, LT-3288, LT-6288, LT-5288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268, LT6188, LT3288.
Working for Kenwood handheld Radio:
TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, K-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160
Working for PUXING handheld Radio: PX-777, PX-777 PLUS, PX-666, PX-3288, PX-888
