| Model: | IPA-215CS |
|---|---|
| Brand: | JAS |
| Origin: | - |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | IP SYSTEM , IP AUDIO , IP SPEAKER |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:09 Dec, 2019 |
With a built-in hi-fi speakers and stereo Class-D power amplifiers
Rated power output 15W at 8 ohms.

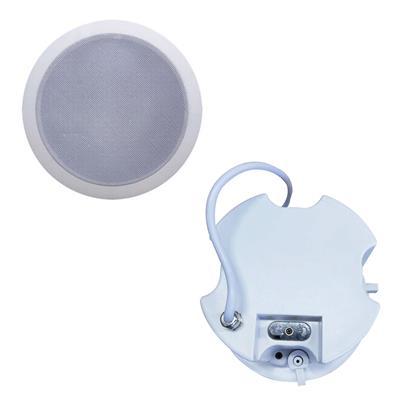

The IP Audio POE Ceiling Speaker is ideal for playground, park, garden, factory, train station and airport outdoor area PA system, background music system, paging system and voice alarm system use.
FEATURES:
1. With an integration of the network audio decoding and digital amplifier and speakers and a installation of ceiling-mounted design.
2. With a high-speed dual-core (ARM+ DSP) chip of industrial grade, start time ≤1S
3. With a build-in Hi-Fi speaker and stereo Class D power amplifier(15 watts 8Ω).
4. With a built-in loop detector to remotely monitor the working conditions of the speaker, easy to maintenance.
4. Supportive of POE power supply and SIP protocol with the function of adjusting speaker output volume remotely on server.
5. With a standard RJ45 interface supportive of crossing network segment and router accessible to the system if the Ethernet is available.
Connection Diagram:
Dimension Drawing:
Specification:
|
Power supply and Consumption |
POE (IEEE802 3af Sandard) Idle ≤5s |
|
Network Chip Rate |
10/100Mbps |
|
Maximum SPL |
97±3dB |
|
Sensitivity |
88dB±3dB/W/M |
|
Network Protocol |
TCP, UDP ARP, MP IGMP SiP |
|
Audio Code |
MP2/MPS/PCM/ADPCM/G, 711/G. 722 |
|
Audio Sampling & Bit Rate |
8h 44kha, 16bi, Gabos-320kbpa |
|
S/N & Frequency Response |
≥90dB, 100-18kHz |
|
Network Delay |
broadcast delay≤30ms |
|
Power Output |
15W |
|
Working Temp & Humidity |
-20℃~50℃, -10~90%RH |
|
RMENONS WEIGHT |
Φ213x65mm, 1.4K
|
